Symptom Chart





Chart 1. Miscellaneous Brake System Conditions

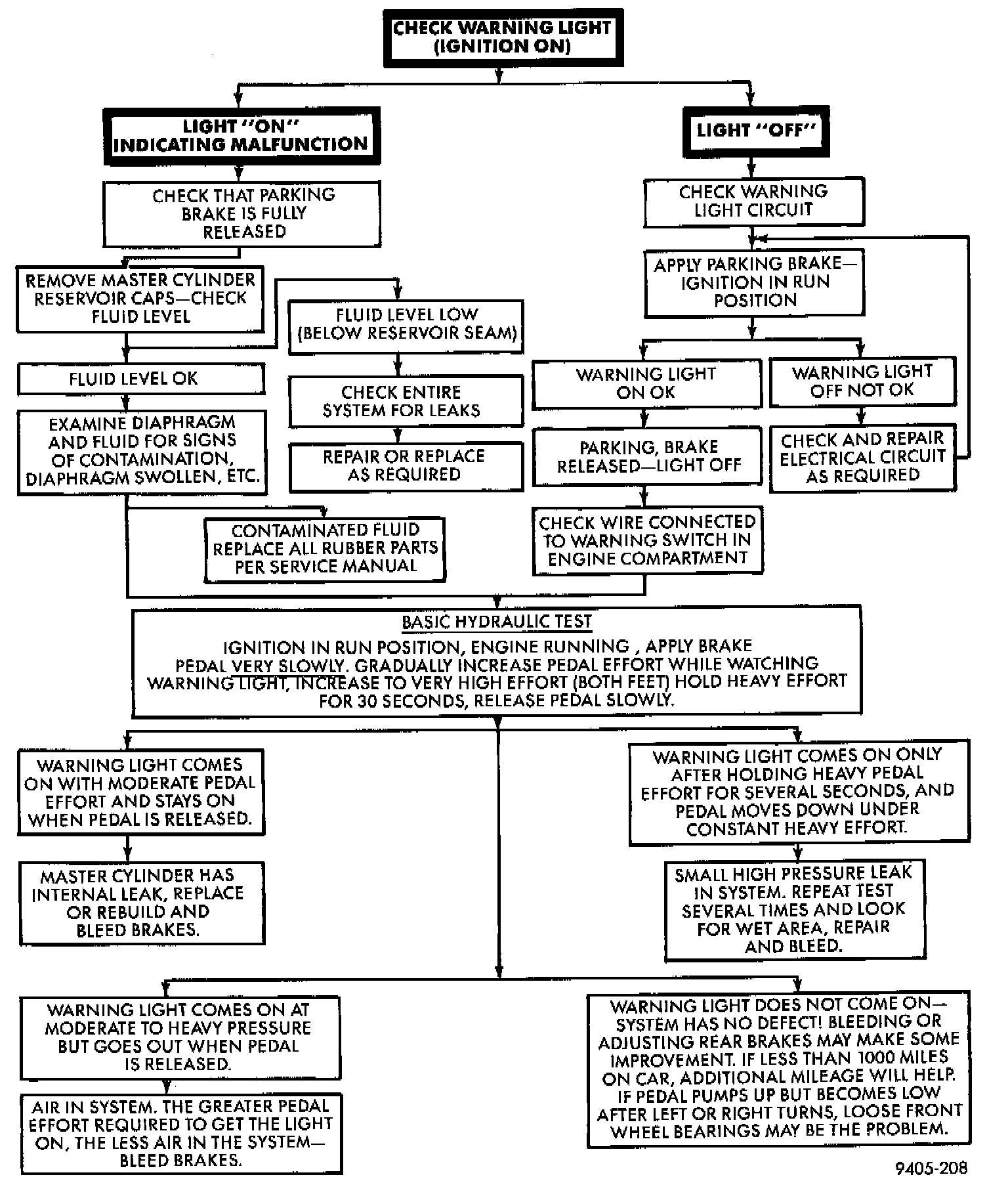

Chart 2. Red Brake Warning Lamp Functions





Chart 3. Power Brake System Diagnostics





Chart 4. Brake Noise

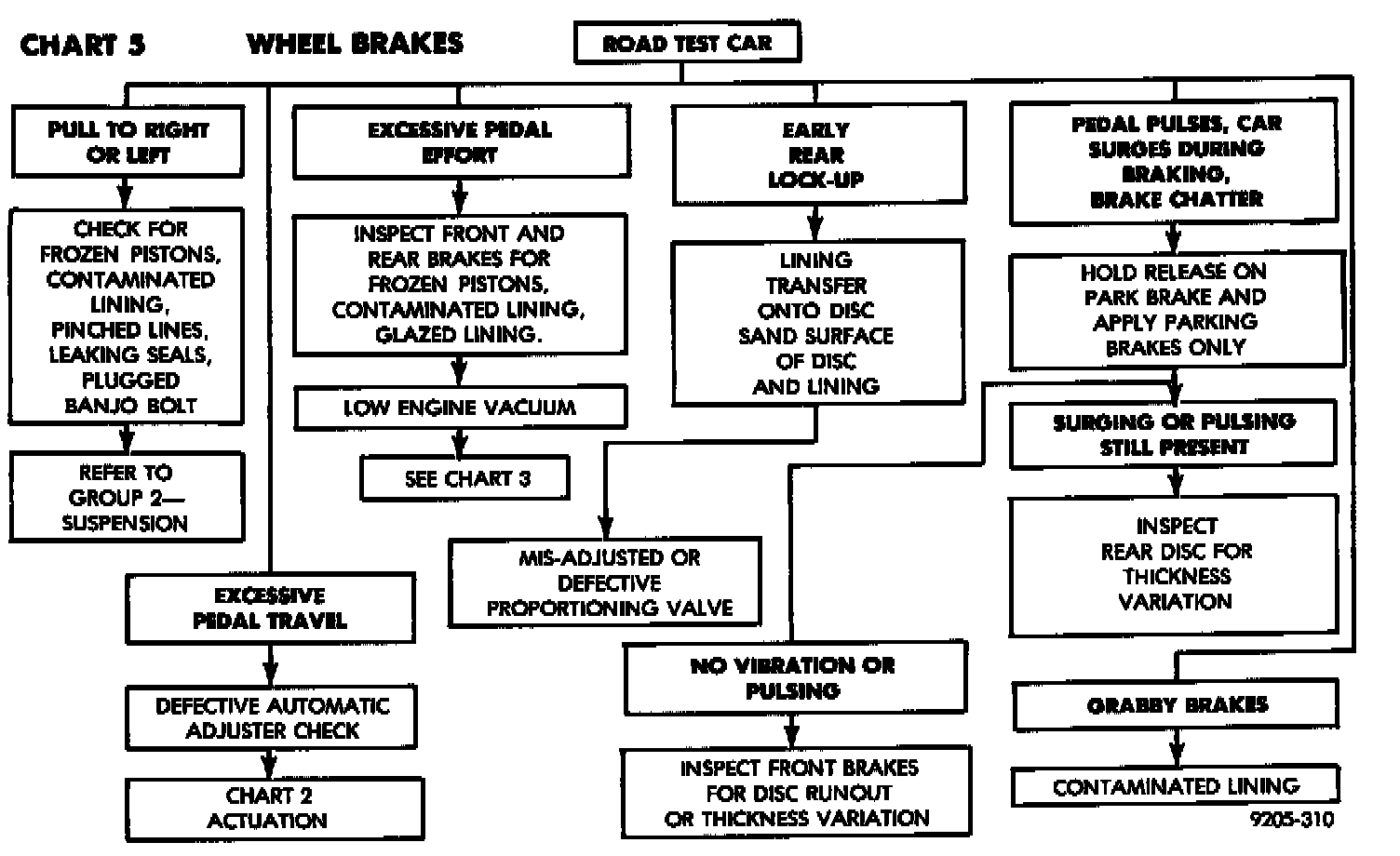

Chart 5. Vehicle Road Test
