A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Vehicle Communication Tests
>>
5A No Response From Powertrain Control Module
5A No Response From Powertrain Control Module
Test 5A:

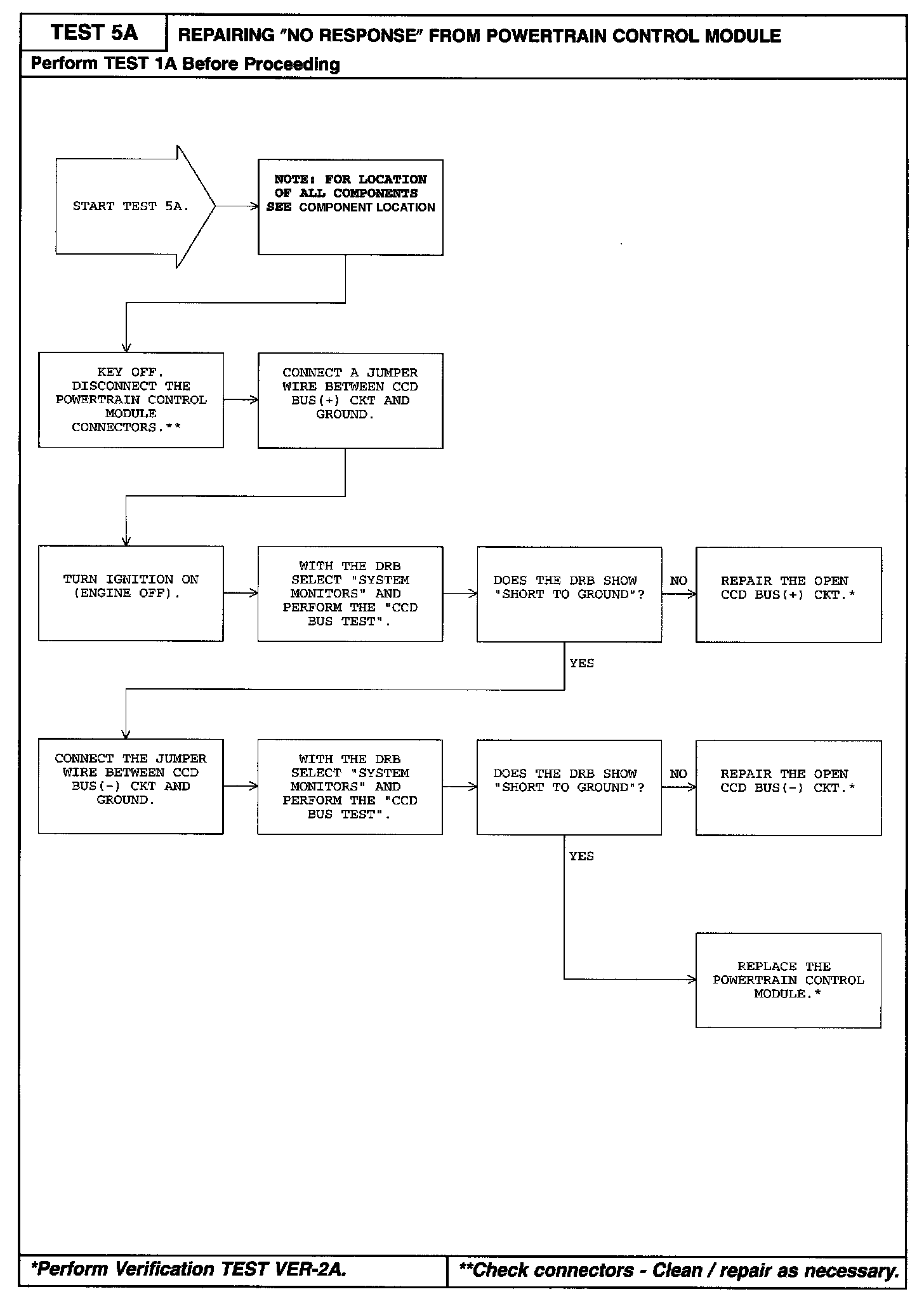

DIAGNOSTIC CHART
Test 5A:

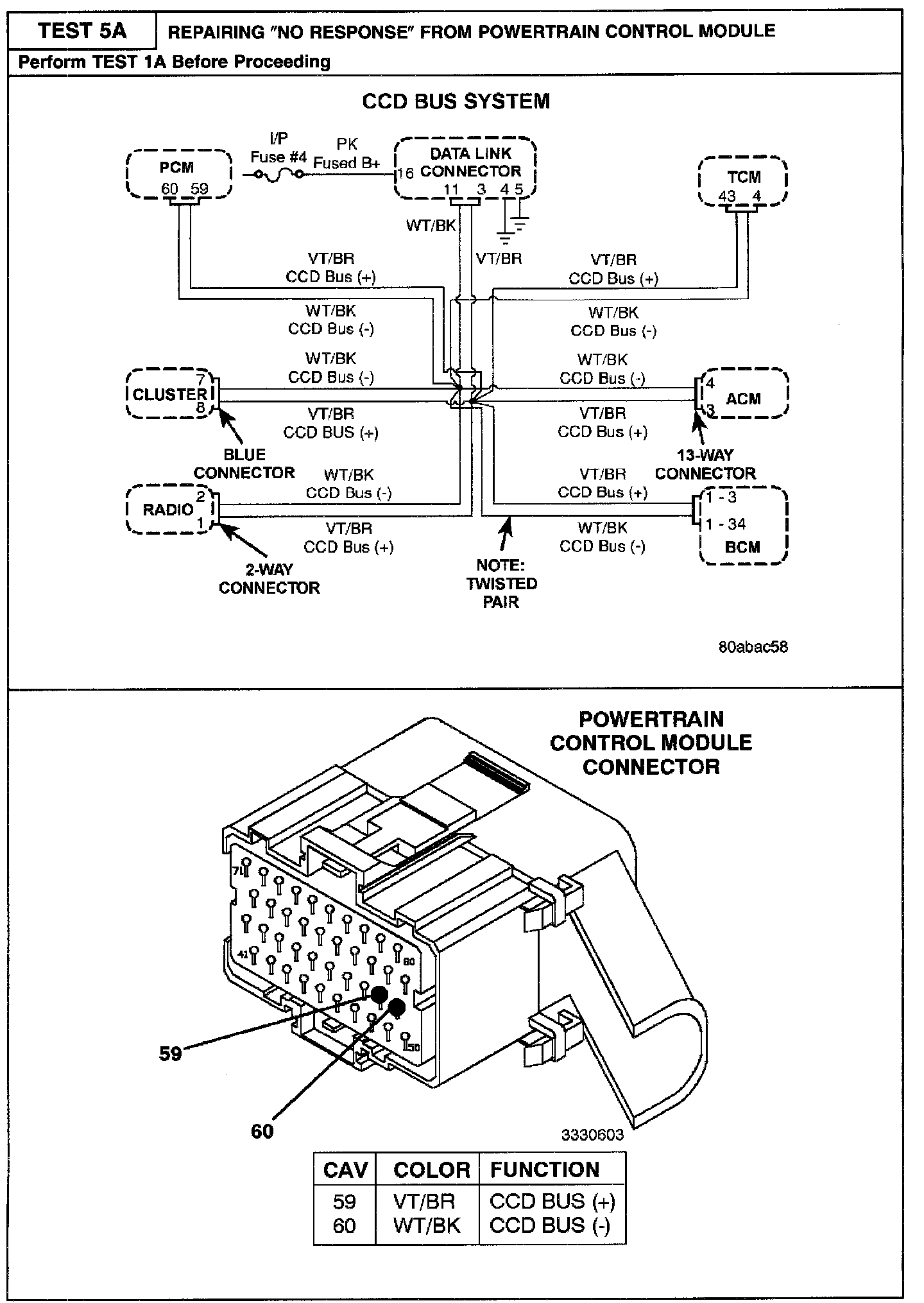

RELATED IMAGE
