3B Battery Power to Module Disconnected Trouble Code
3B Battery Power to Module Disconnected Trouble Code

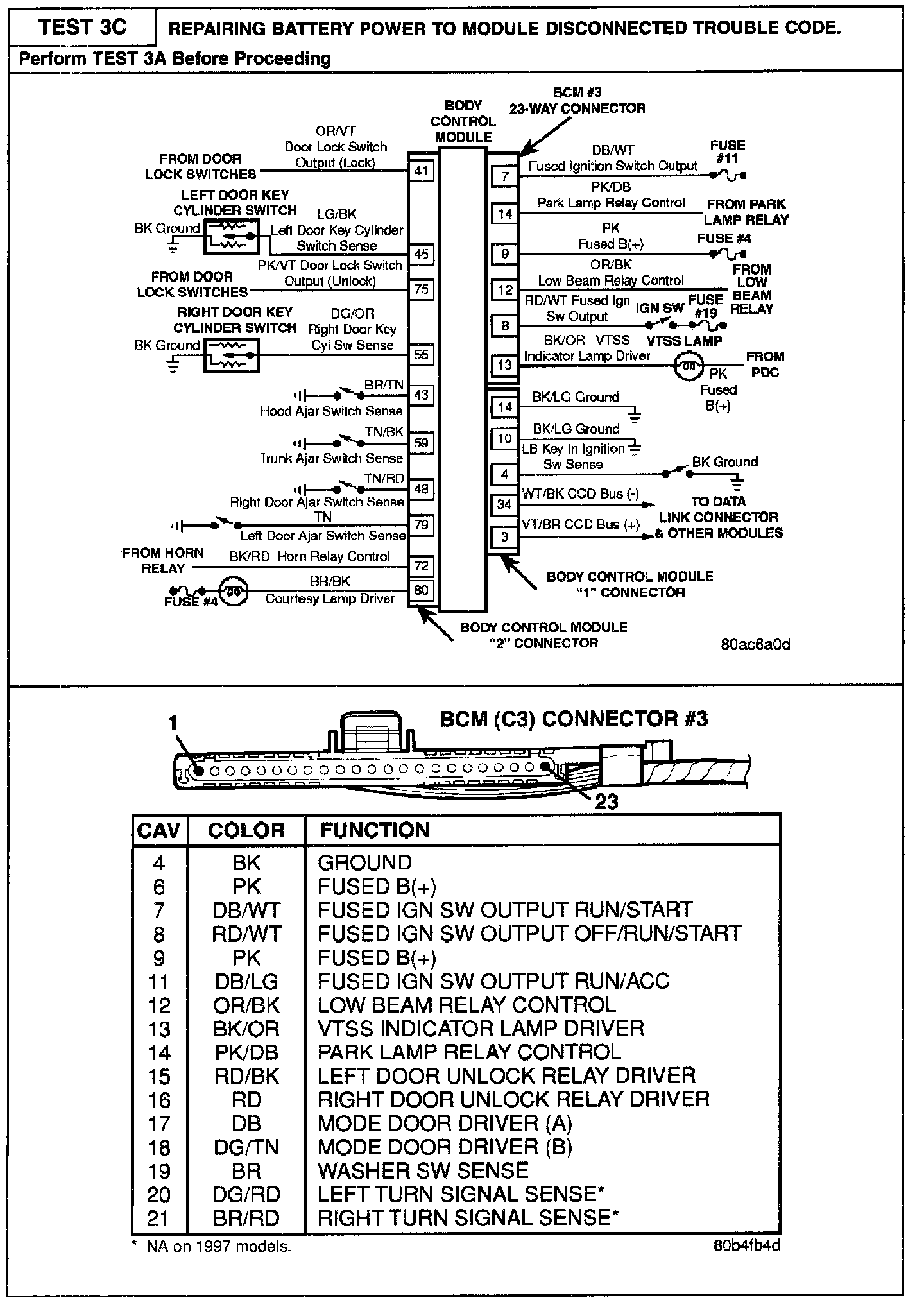

Test 3C:

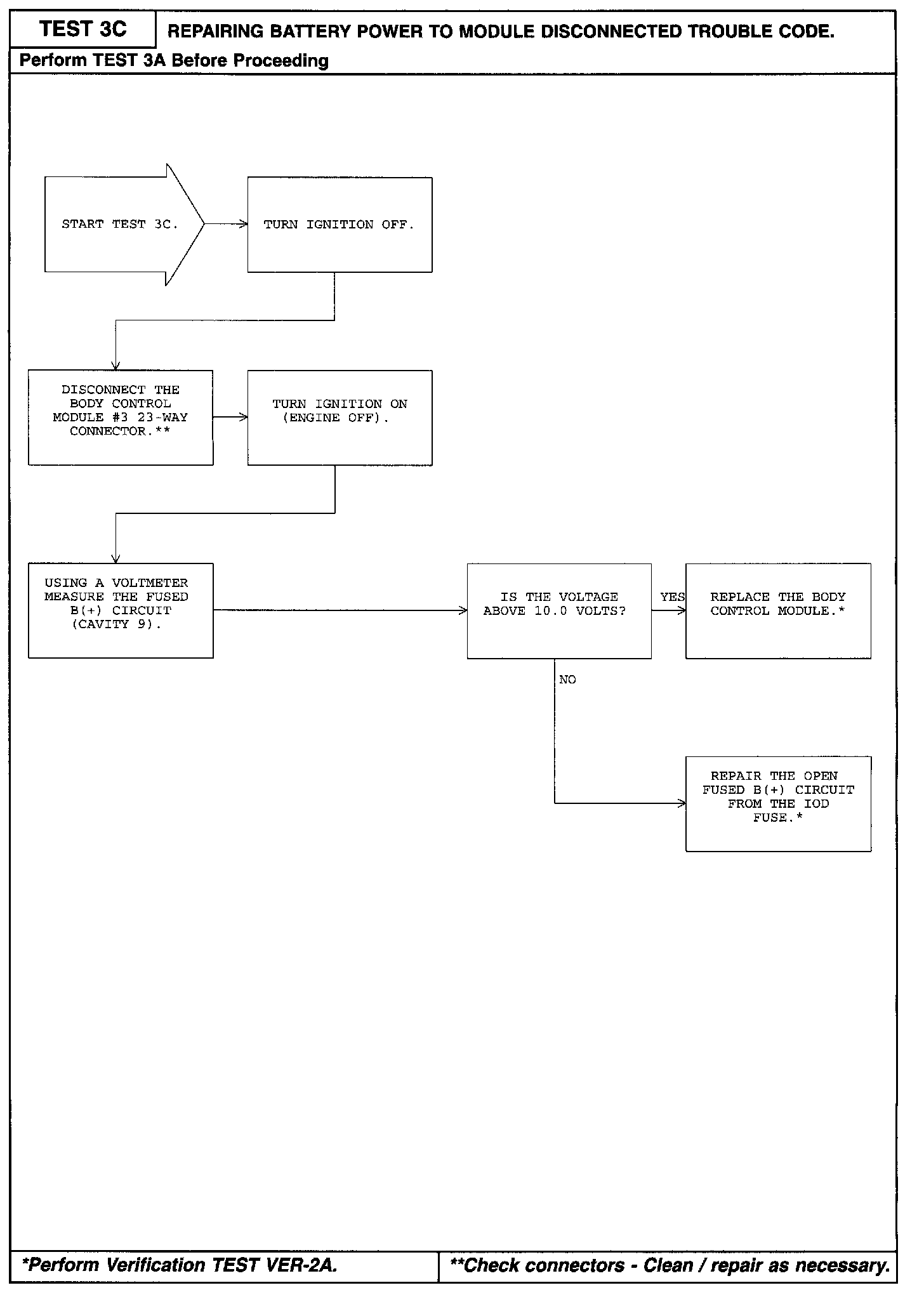

DIAGNOSTIC CHART
Test 3C:
RELATED IMAGE
