Power Door Lock System With Remote Keyless Entry (RKE)
>>
3B Shorted Key-In Ignition Circuit
3B Shorted Key-In Ignition Circuit
Test 3B:

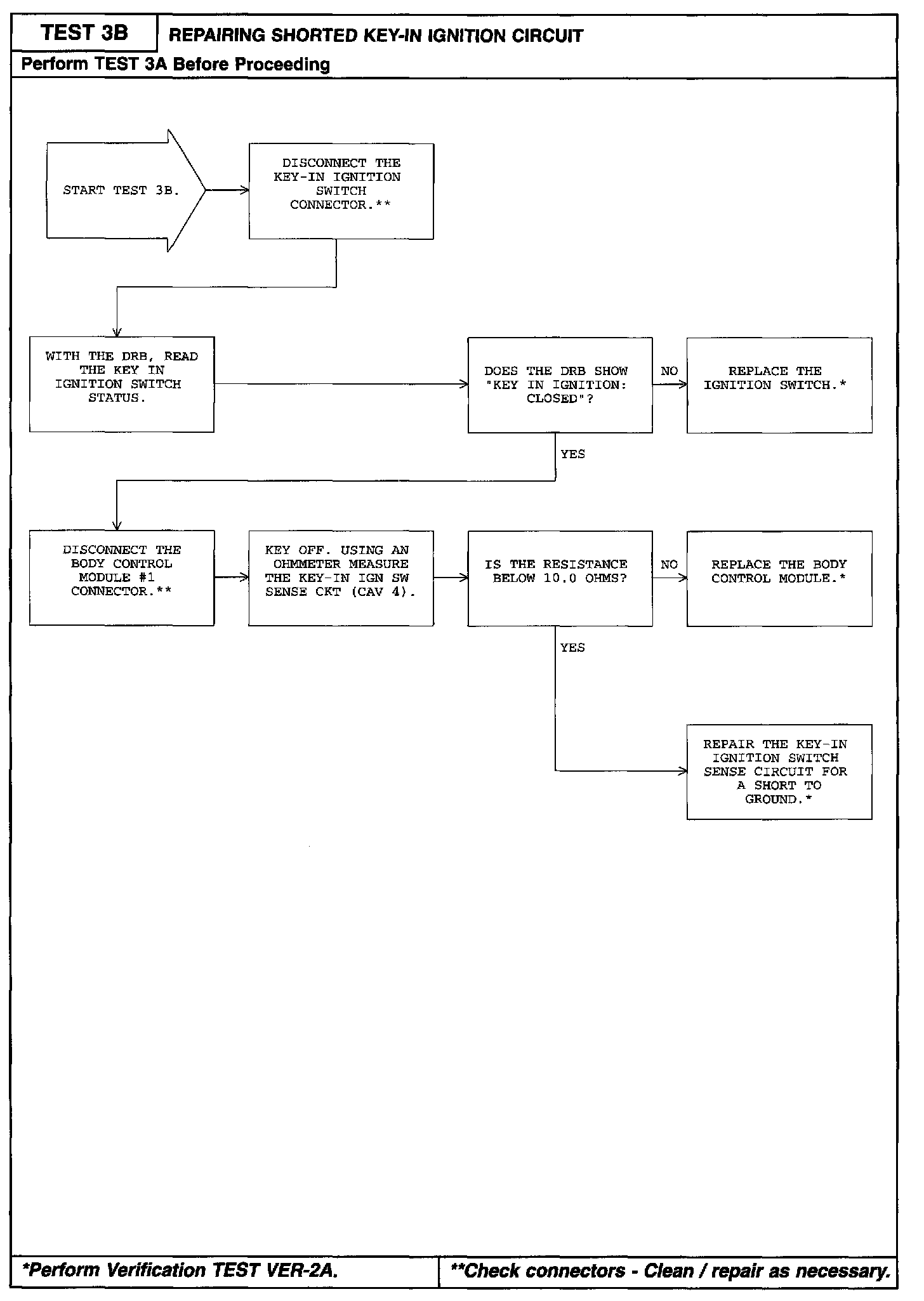

DIAGNOSTIC CHART
Test 3B:

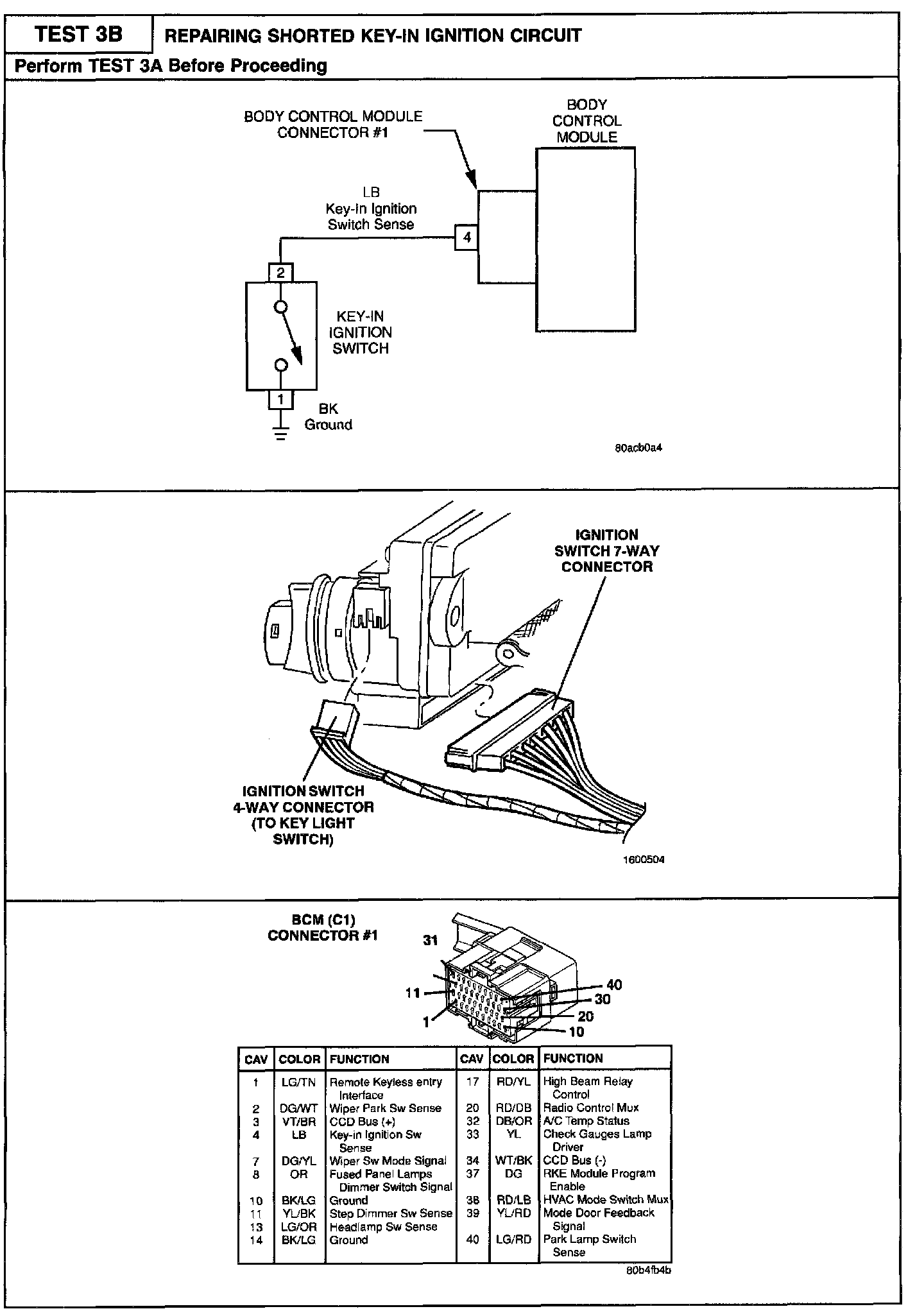

RELATED IMAGE
