Plymouth
>>
1997
>>
Prowler V6-3.5L VIN F
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Chime System
>>

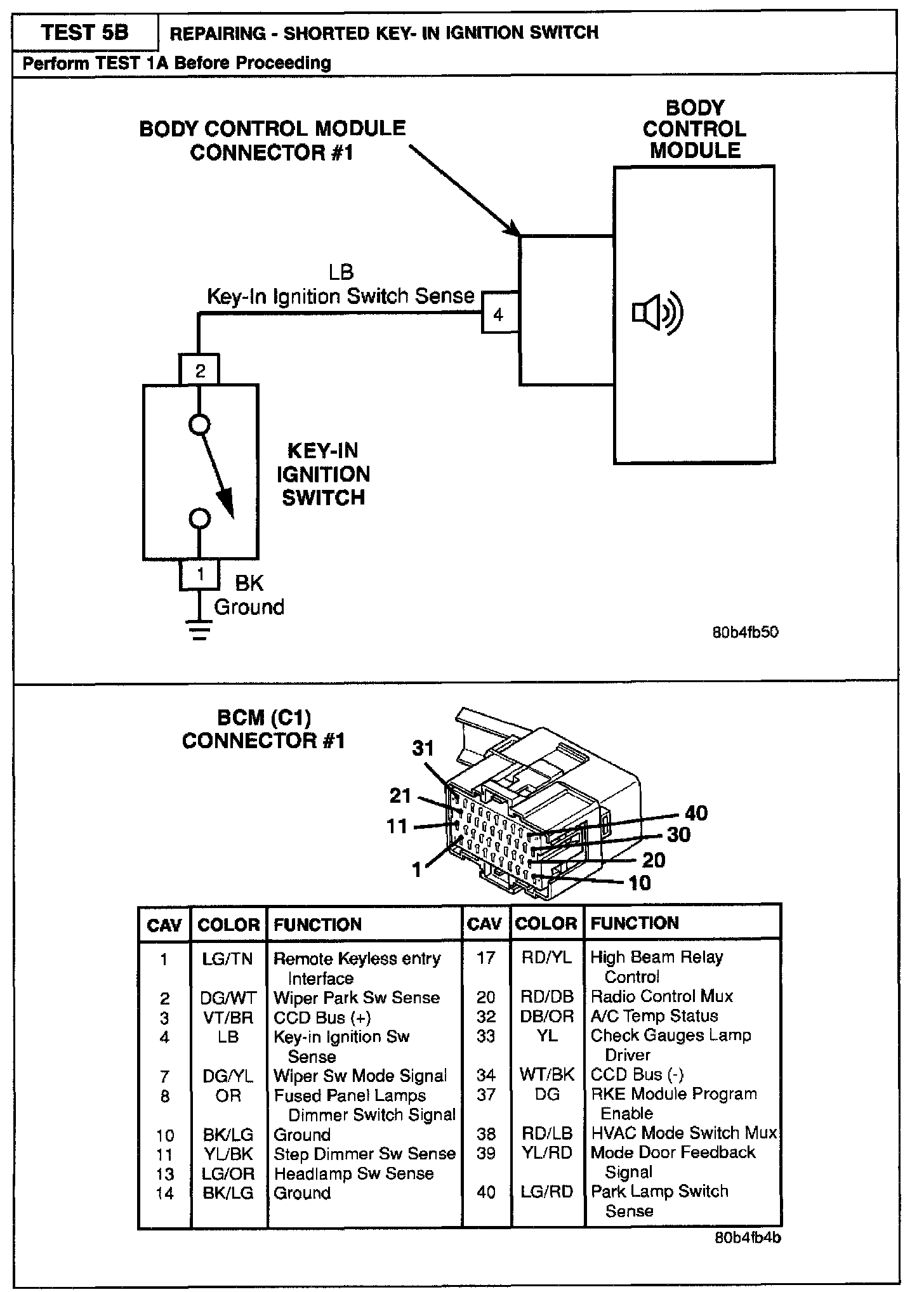

5B Shorted Key-In Ignition Switch
5B Shorted Key-In Ignition Switch
Test 5B:

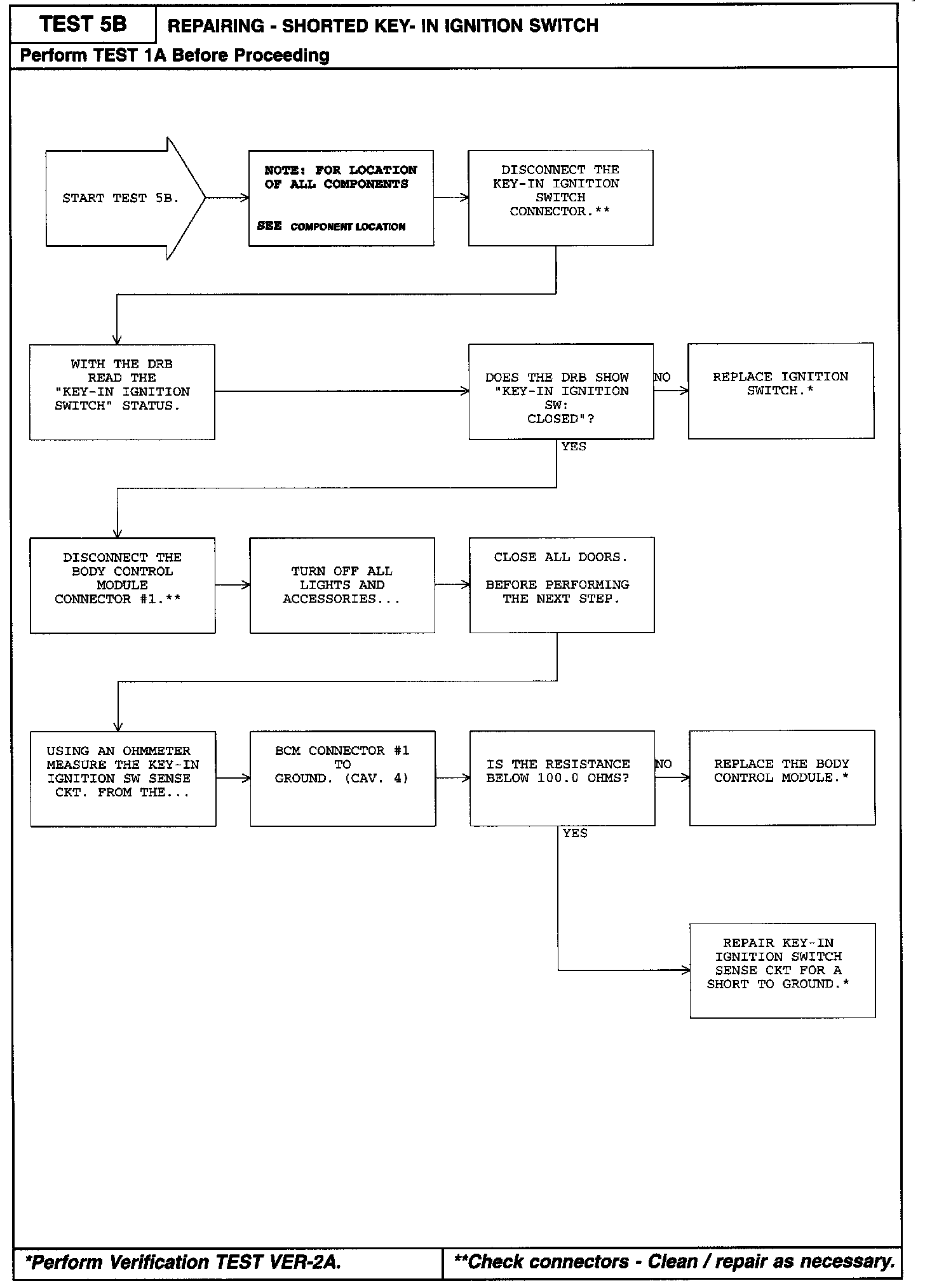

DIAGNOSTIC CHART
Test 5B:
RELATED IMAGE
