Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Plymouth
>>
1997
>>
Prowler V6-3.5L VIN F
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Body Control Module
>>
Door Ajar System
>>
9A Open Hood Ajar Switch Circuit
9A Open Hood Ajar Switch Circuit
Test 9A:

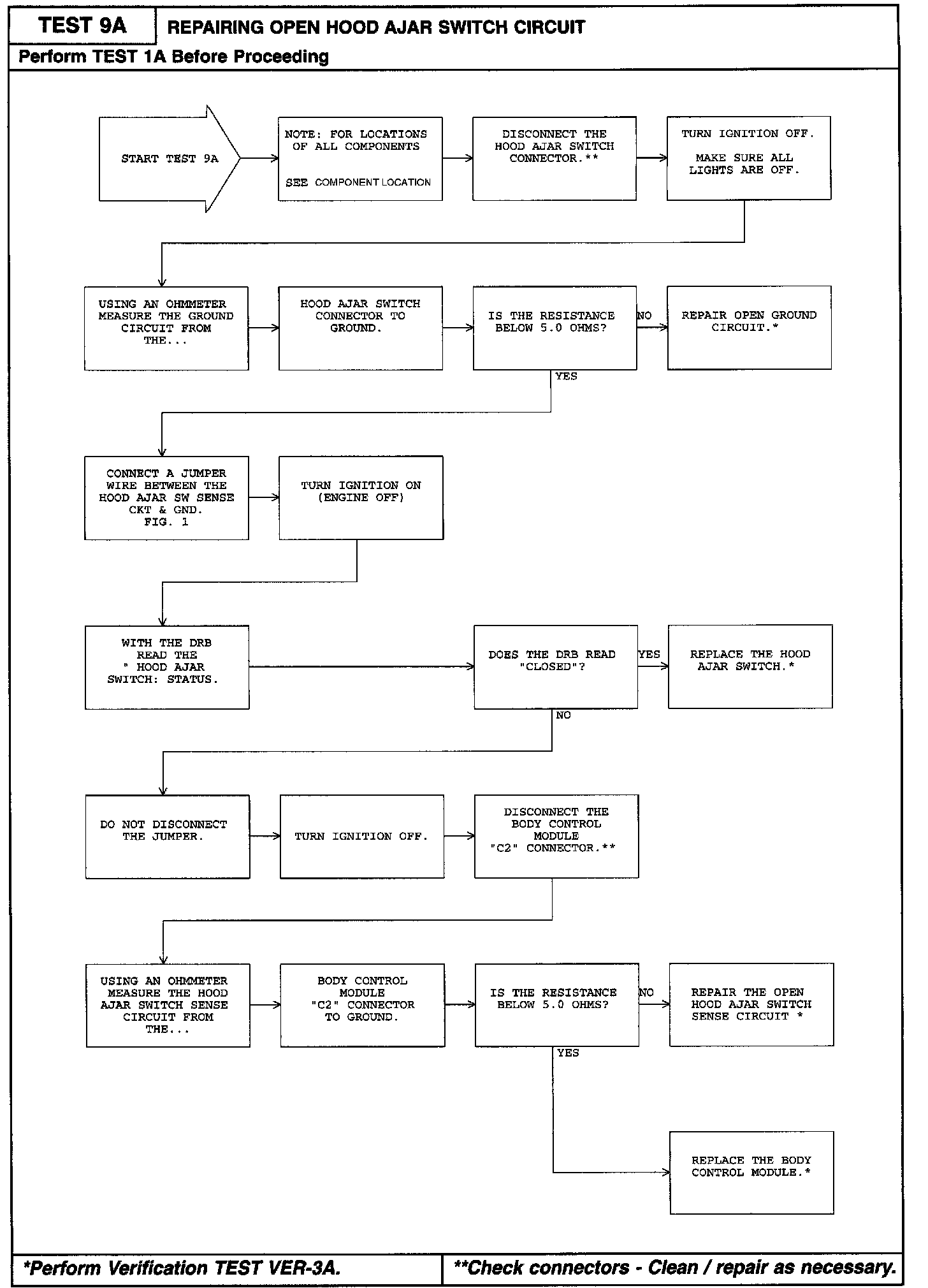

DIAGNOSTIC CHART
Test 9A:

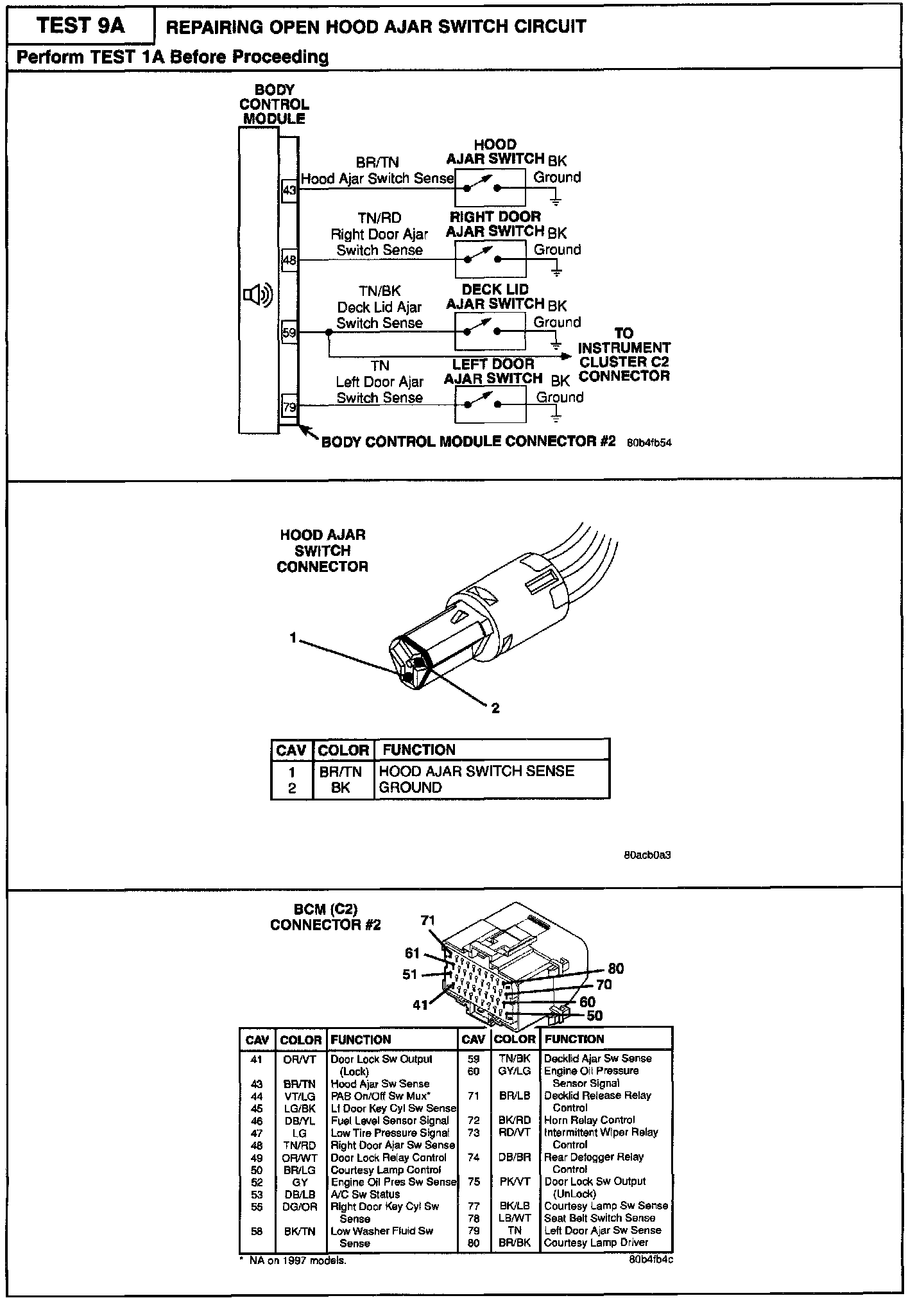

RELATED IMAGE
