Plymouth
>>
1997
>>
Prowler V6-3.5L VIN F
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Body Control Module
>>
Door Ajar System
>>

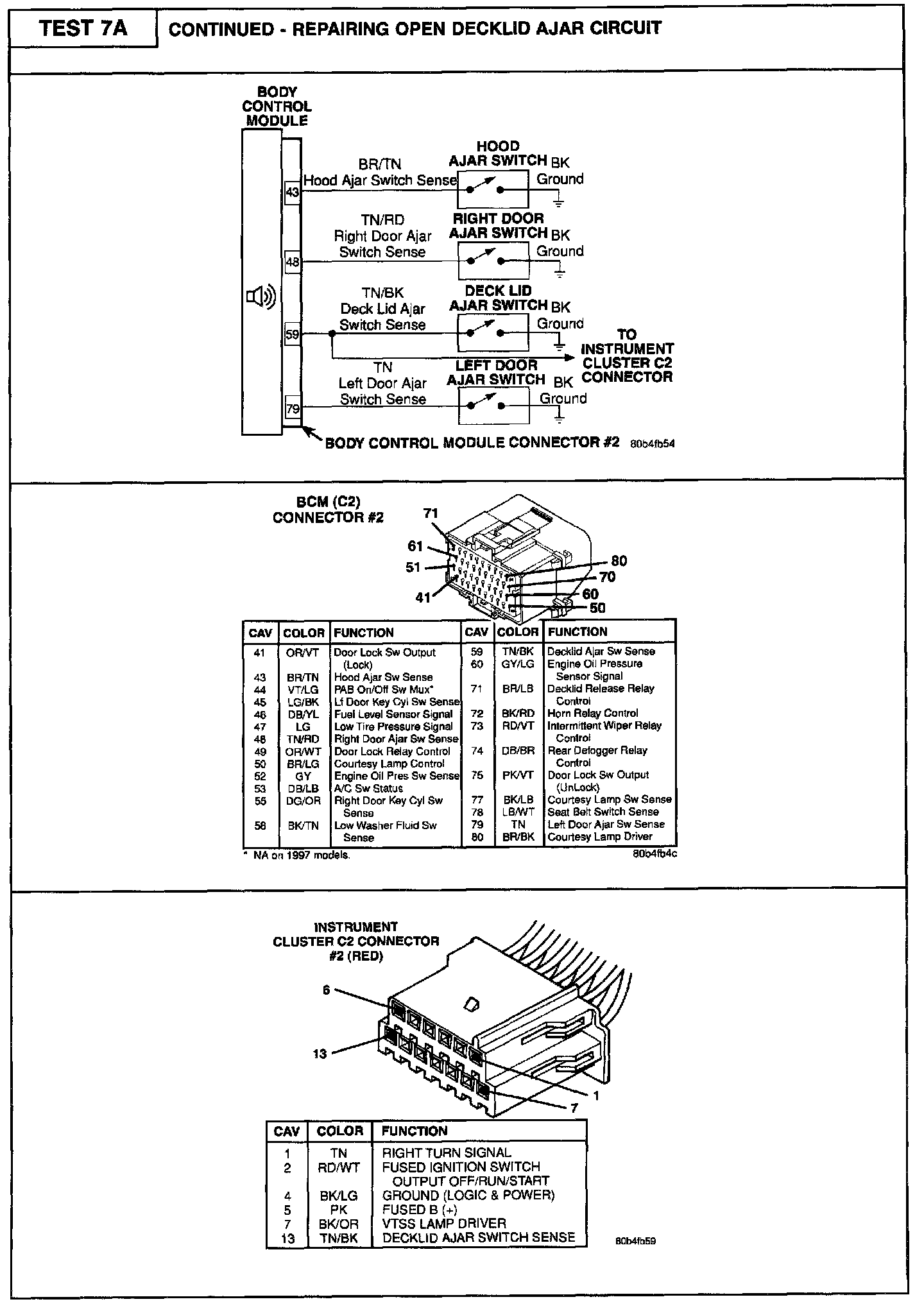

7A Open Decklid Ajar Circuit
>>
Part 2 of 3
Part 2 of 3
Test 7A:

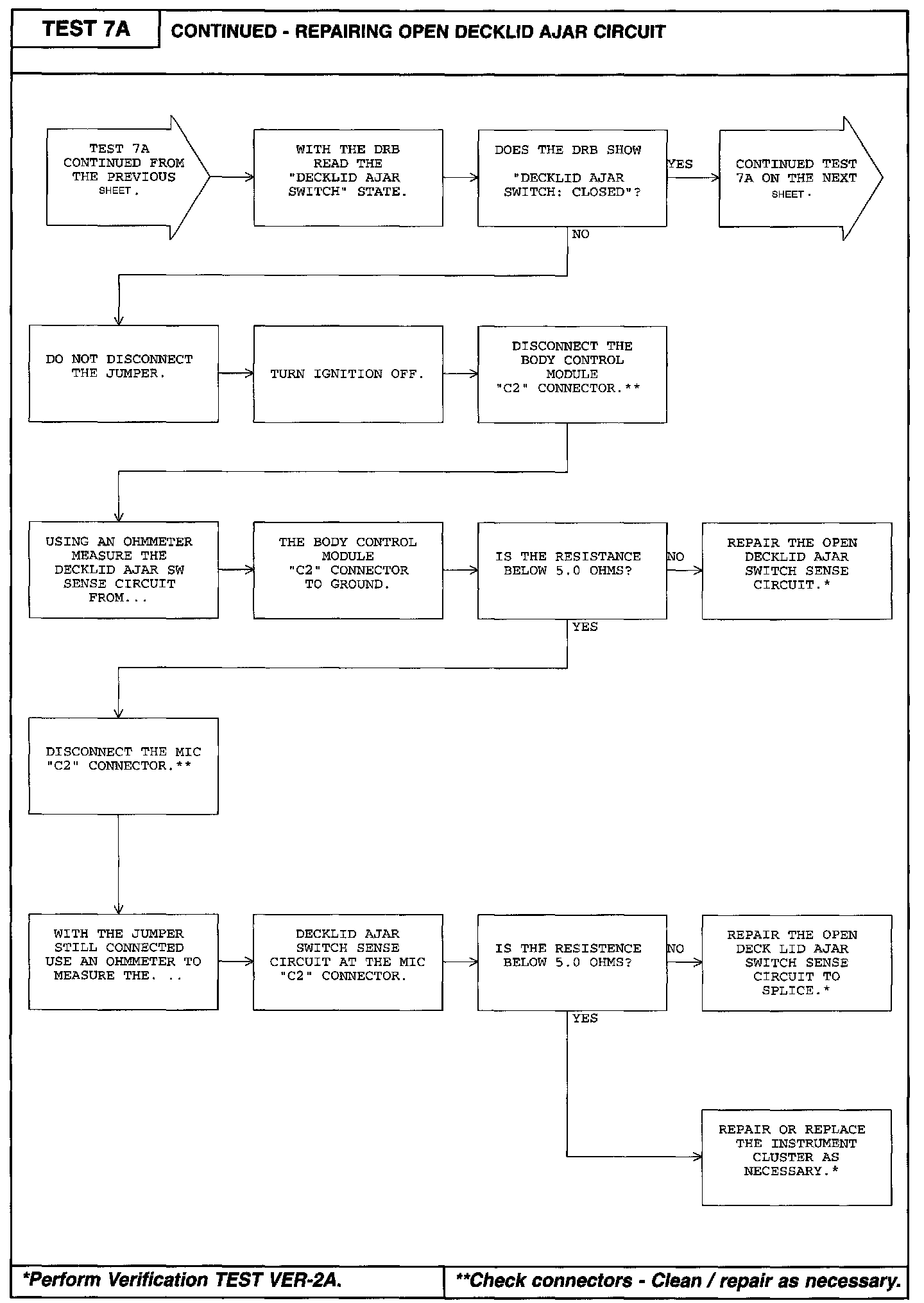

DIAGNOSTIC CHART
Test 7A:
RELATED IMAGE
