A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Audio System
>>

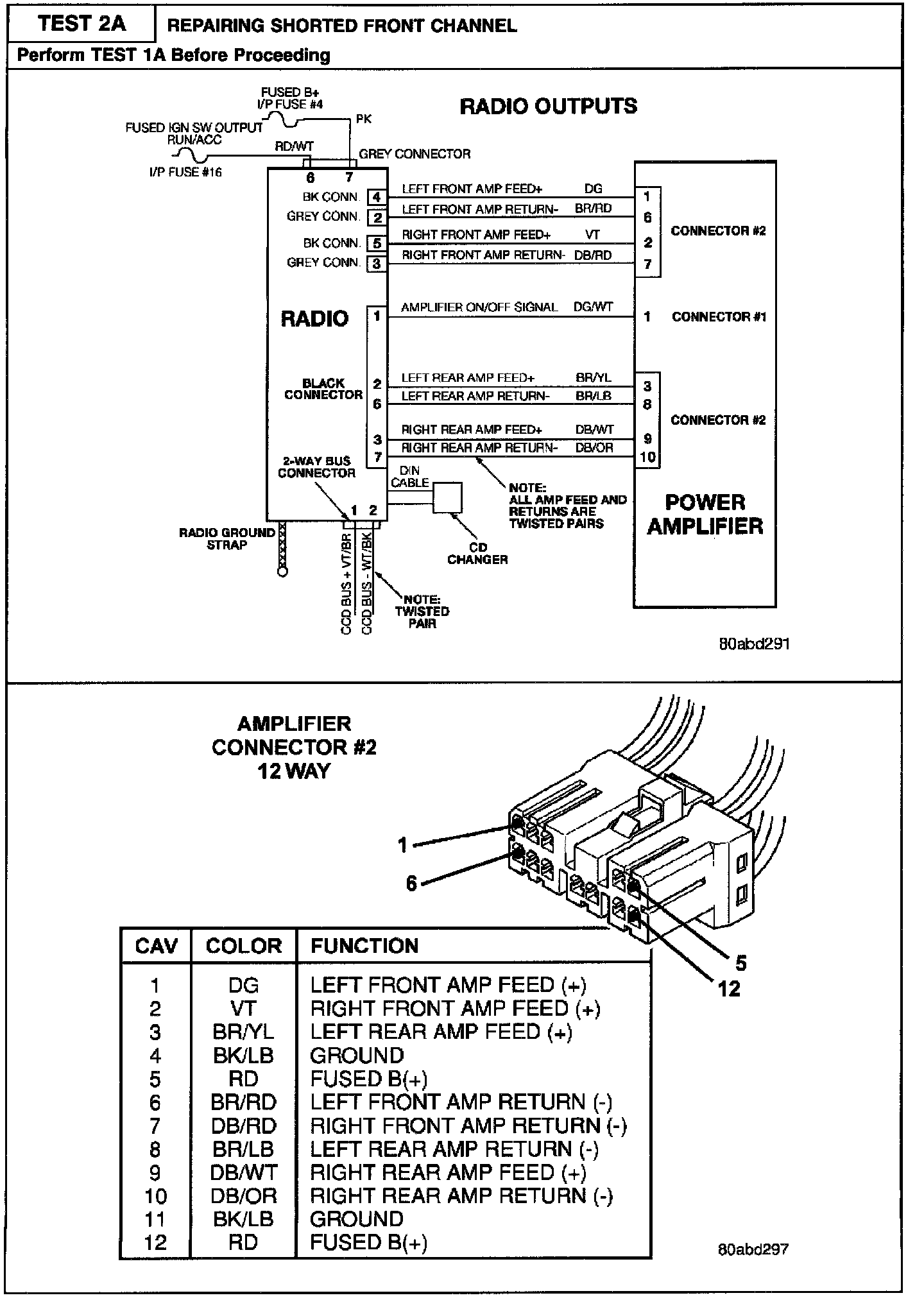

2A Shorted Front Channel
2A Shorted Front Channel
Test 2A:
DIAGNOSTIC CHART
Test 2A:
RELATED IMAGE
