Home
>>
Plymouth
>>
1997
>>
Prowler V6-3.5L VIN F
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Airbag System
>>
7A One Front Sensor Circuit Open
>>
Part 2 of 3
Part 2 of 3

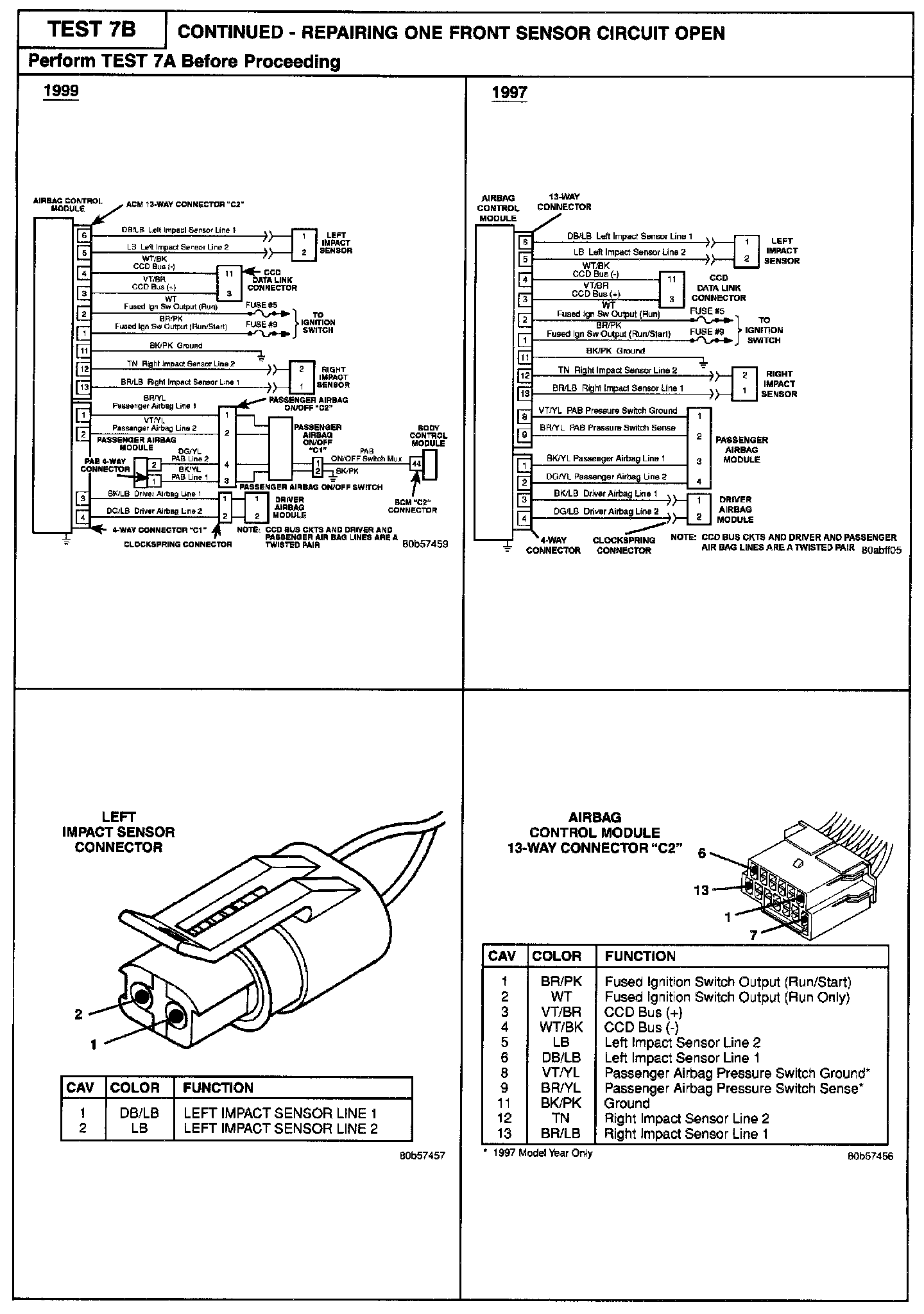

Test 7B:

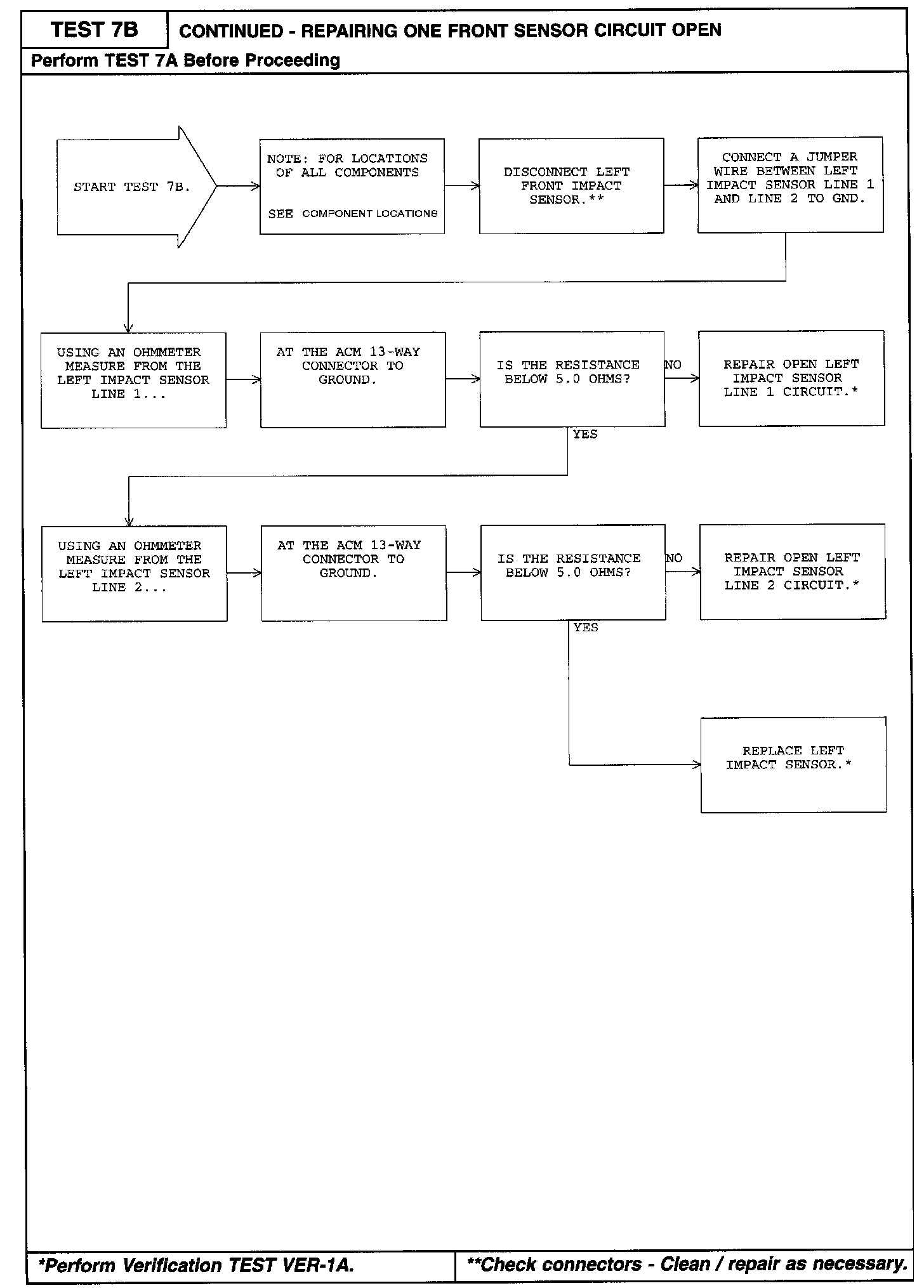

DIAGNOSTIC CHART
Test 7B:
RELATED IMAGE
