Plymouth
>>
1997
>>
Neon L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
DRB Scan Tool Error Messages and Blank Screen
>>

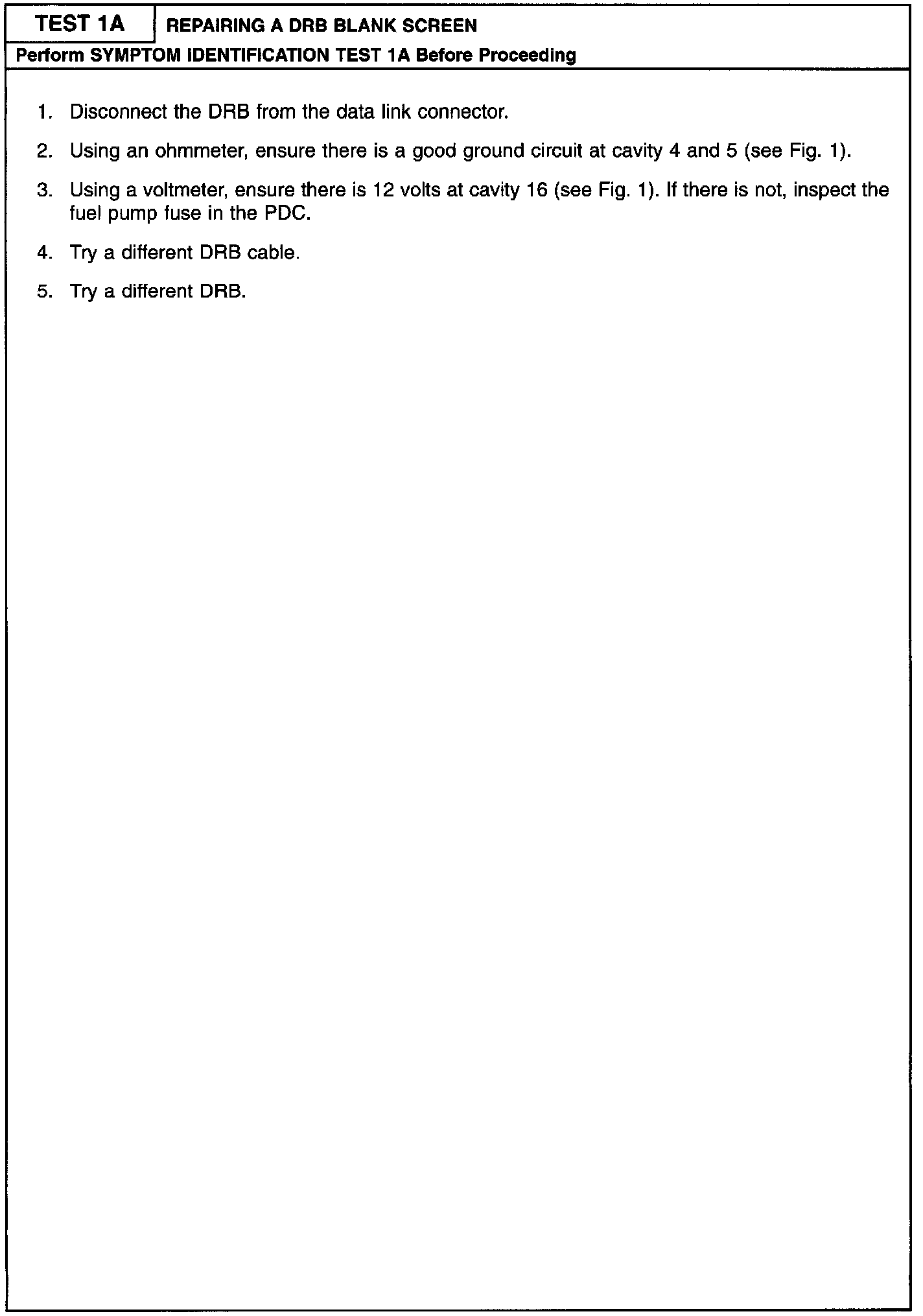

Test 1A Blank Screen
Test 1A Blank Screen

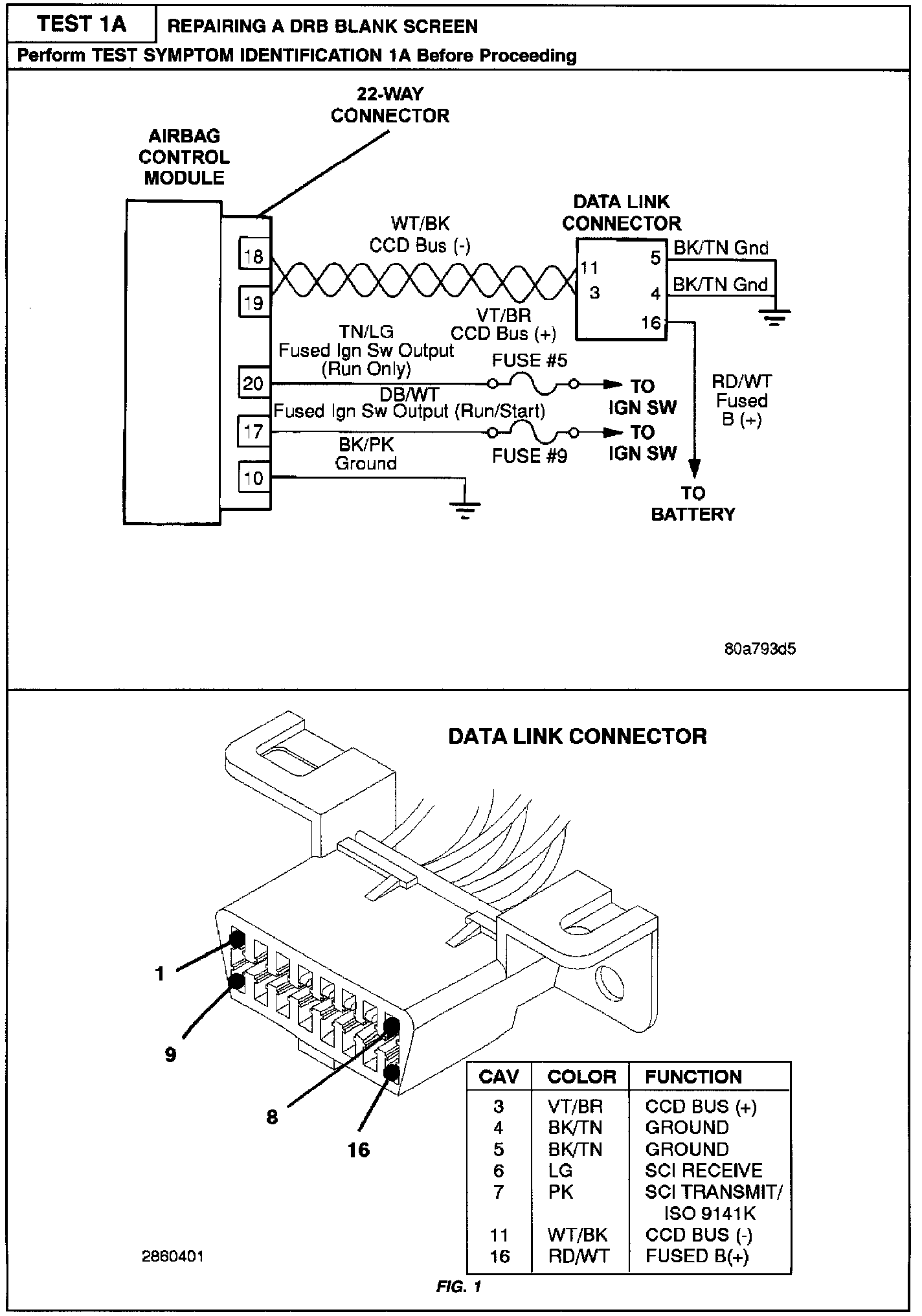

Diagnostic Chart:
Related Images:
