Plymouth
>>
1997
>>
Neon L4-2.0L VIN C
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Trouble Code (TC) Tests
>>
TC-25D Idle Air Control Motor Circuits
TC-25D Idle Air Control Motor Circuits
Related Images:

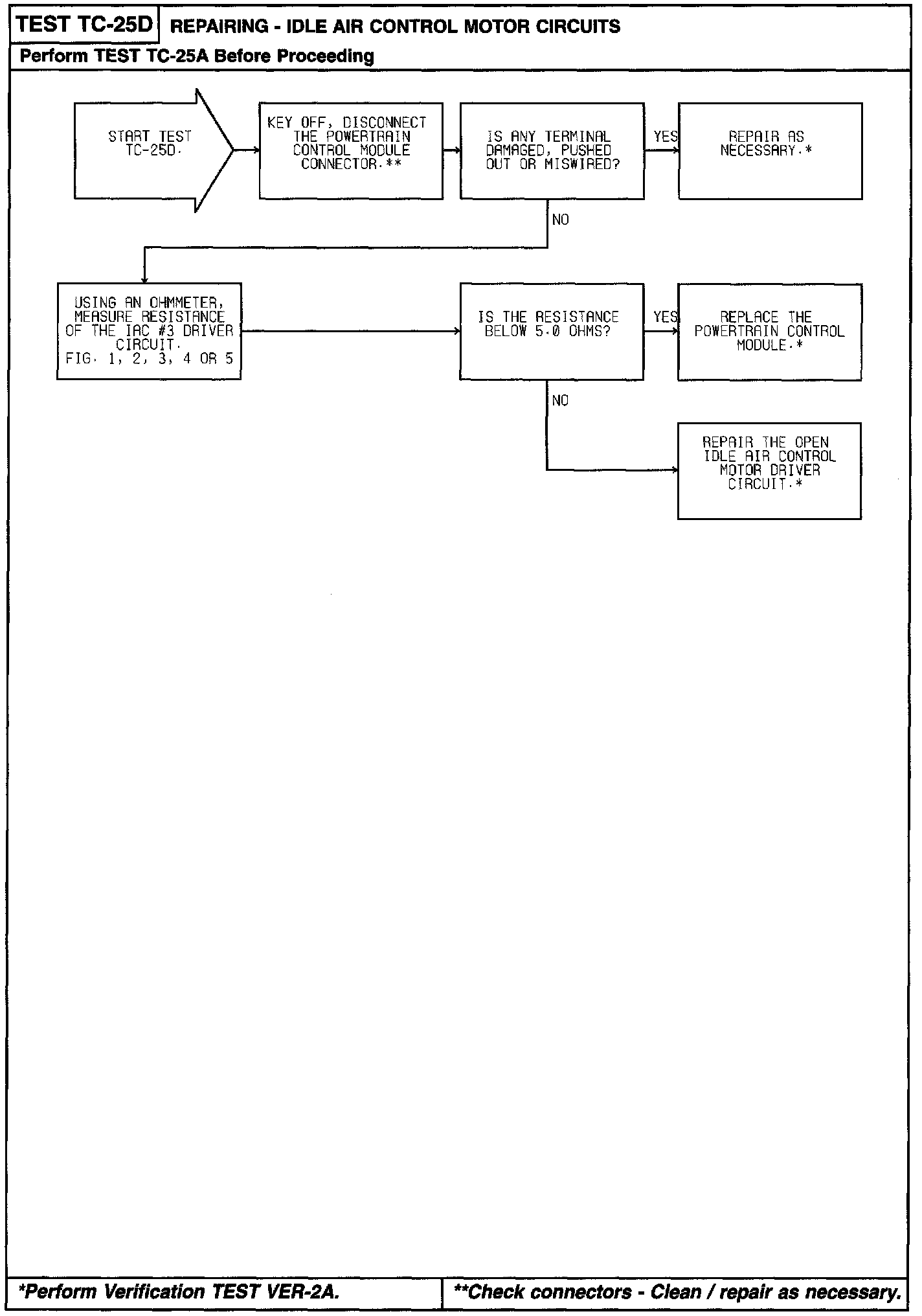

Flow Chart:
