Home
>>
Plymouth
>>
1996
>>
Neon L4-2.0L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Airbag System
>>
9A Repairing Passenger Squib Circuit Shorted
9A Repairing Passenger Squib Circuit Shorted
Related Images:

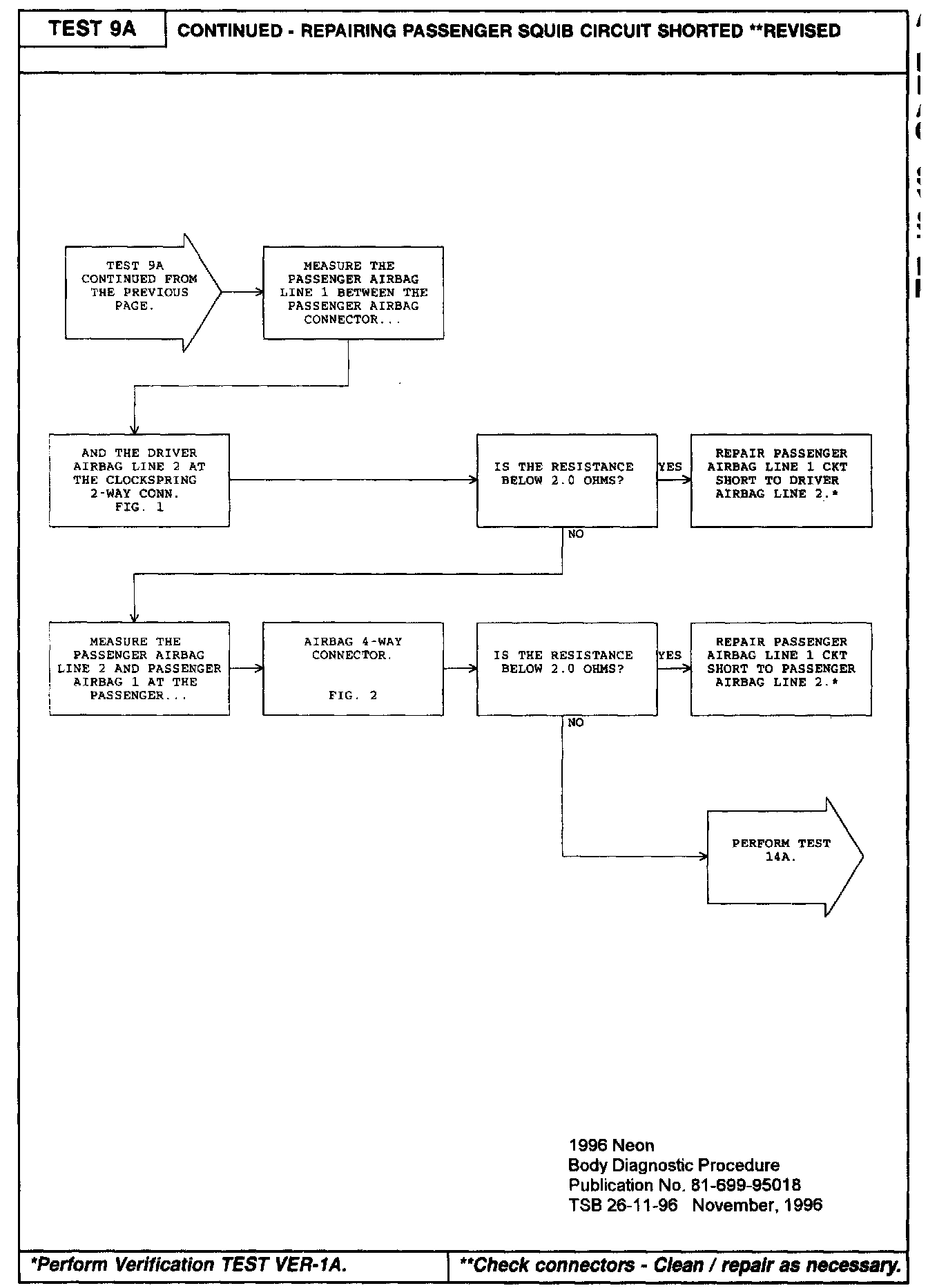

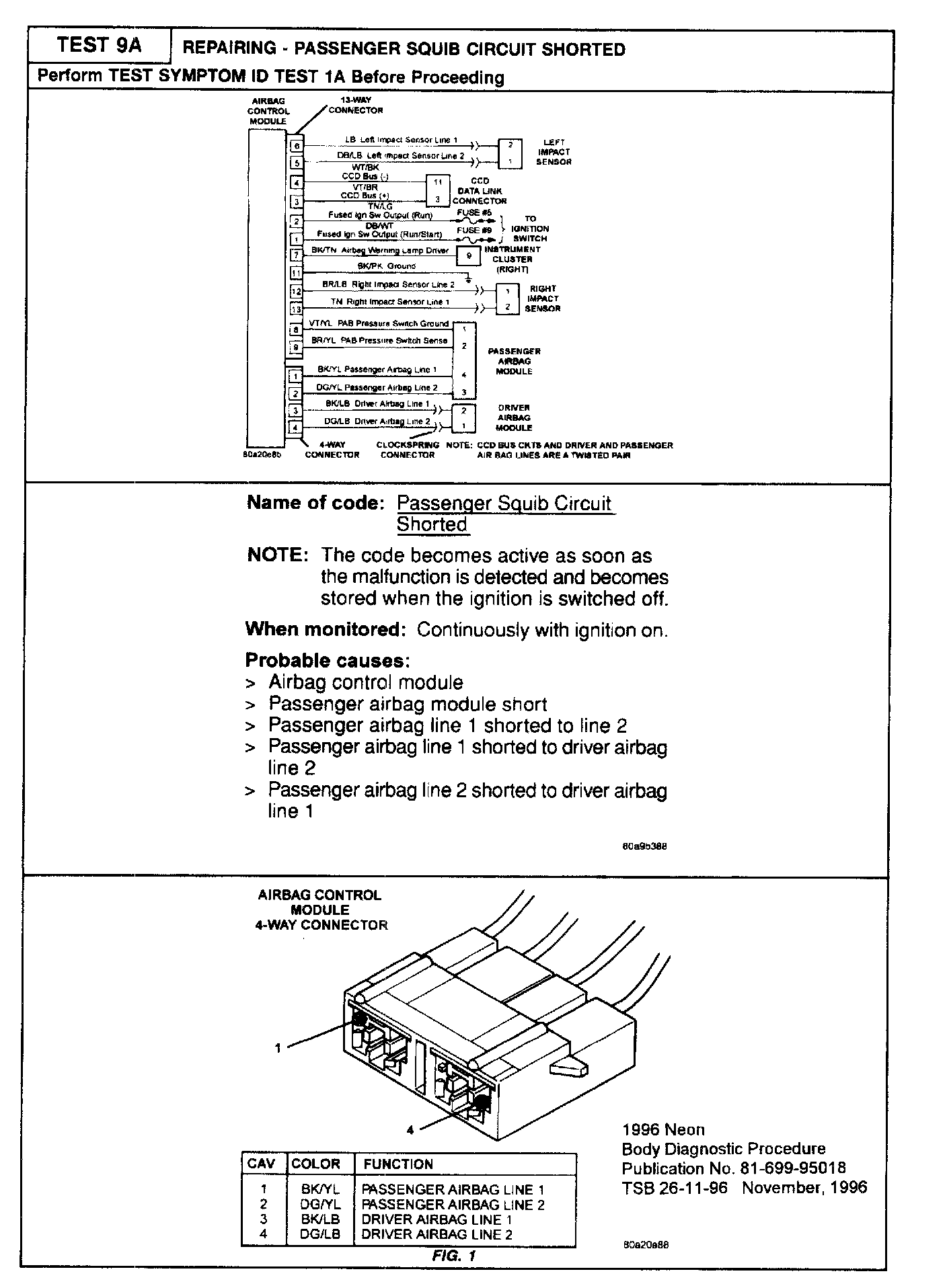

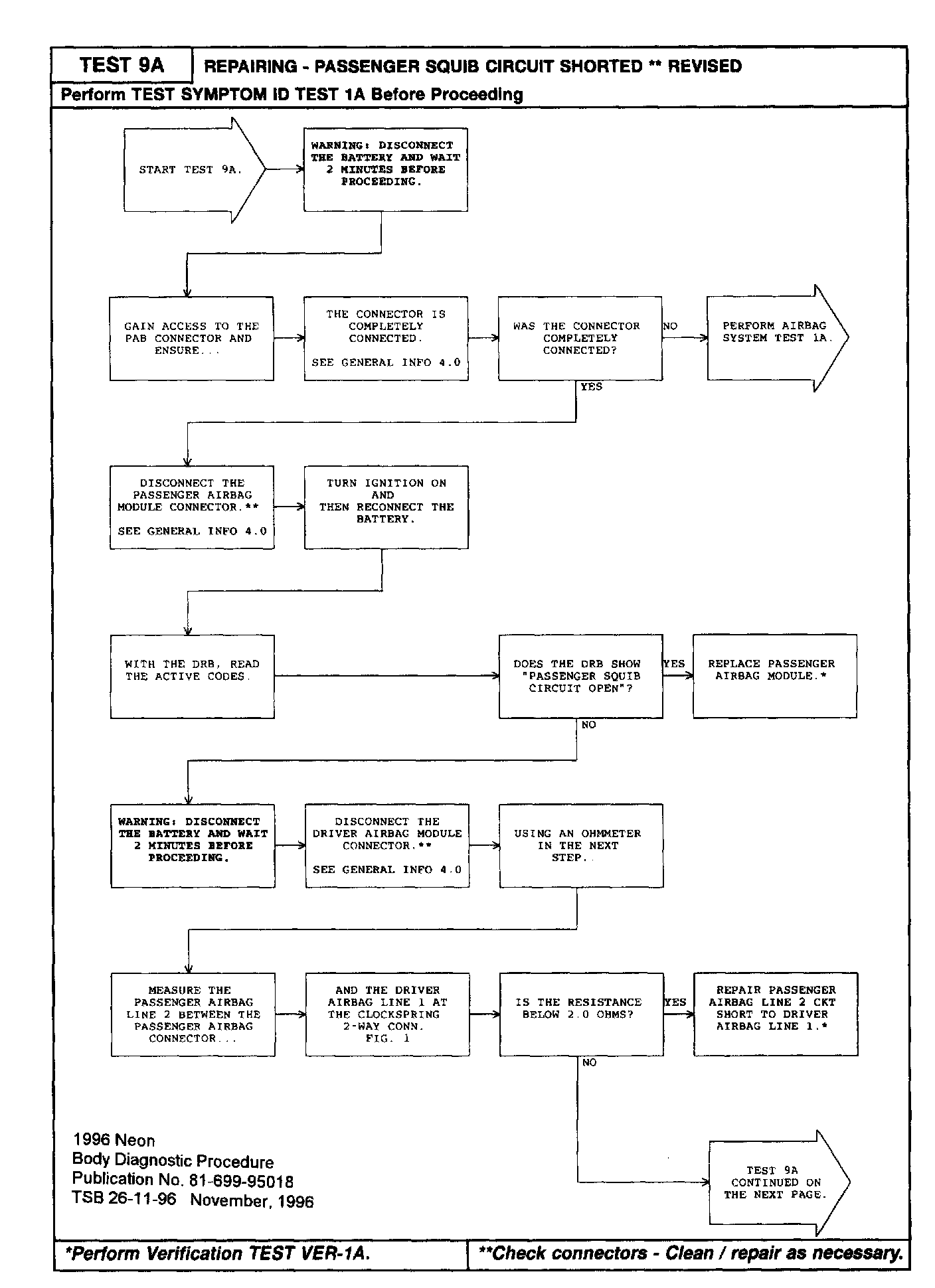

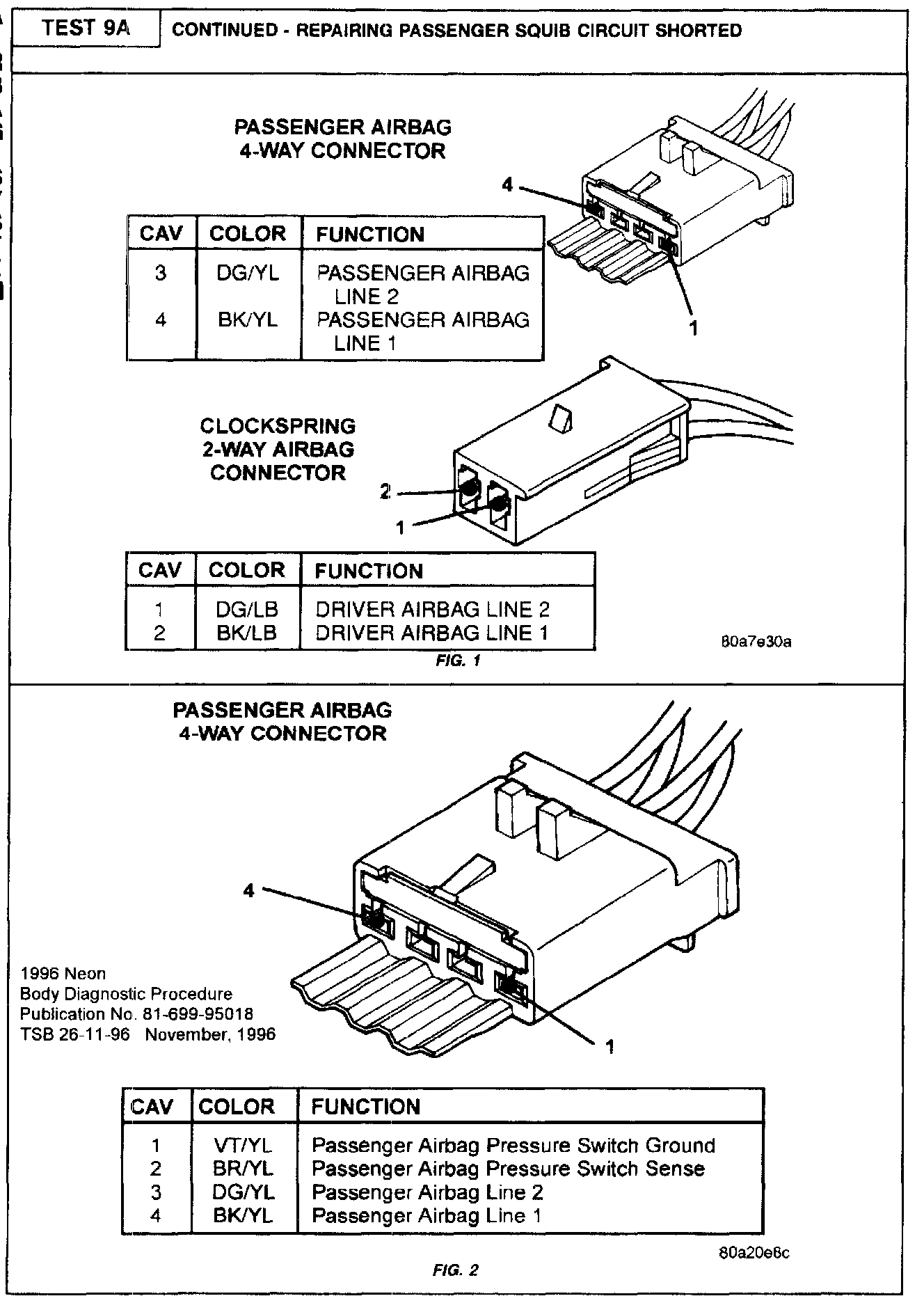

Diagnostic Chart:
