A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Airbag System
>>
4A Repairing Front Sensor Circuit Shorted
>>
Part 4 of 5
Part 4 of 5

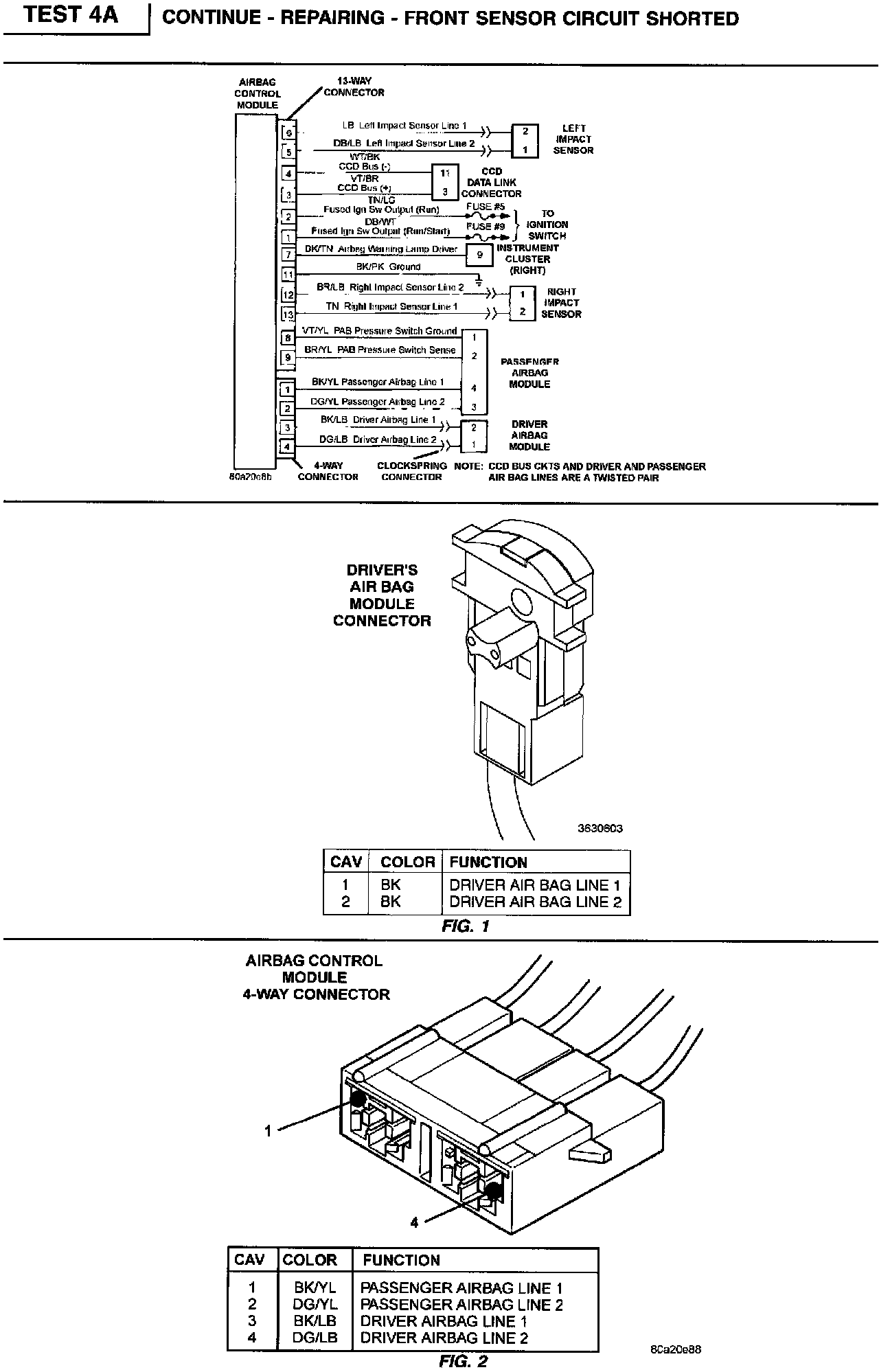

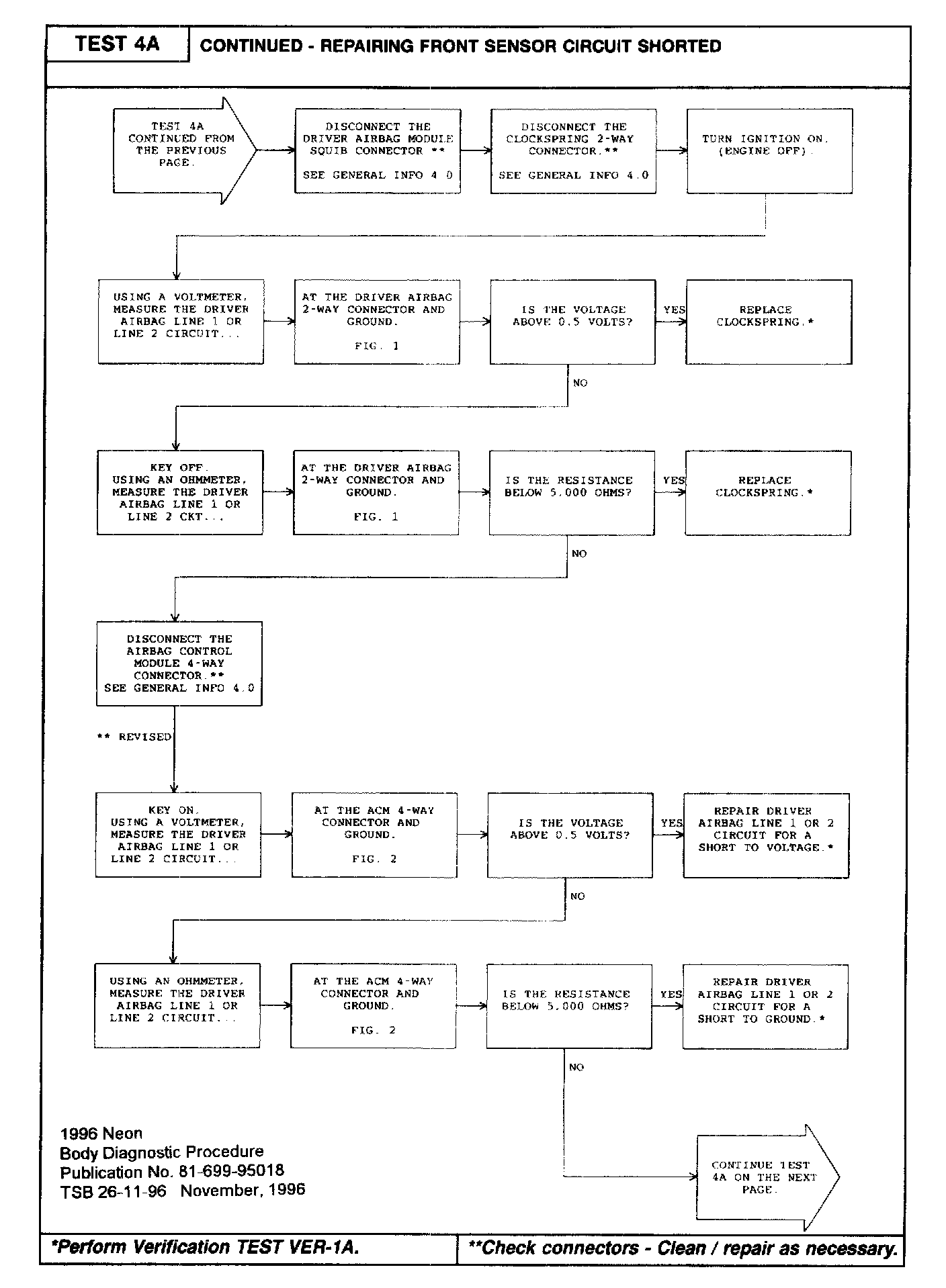

Diagnostic Chart:
Related Images:
