Airbag System
>>
3A Repairing Driver Squib Circuit Shorted
3A Repairing Driver Squib Circuit Shorted

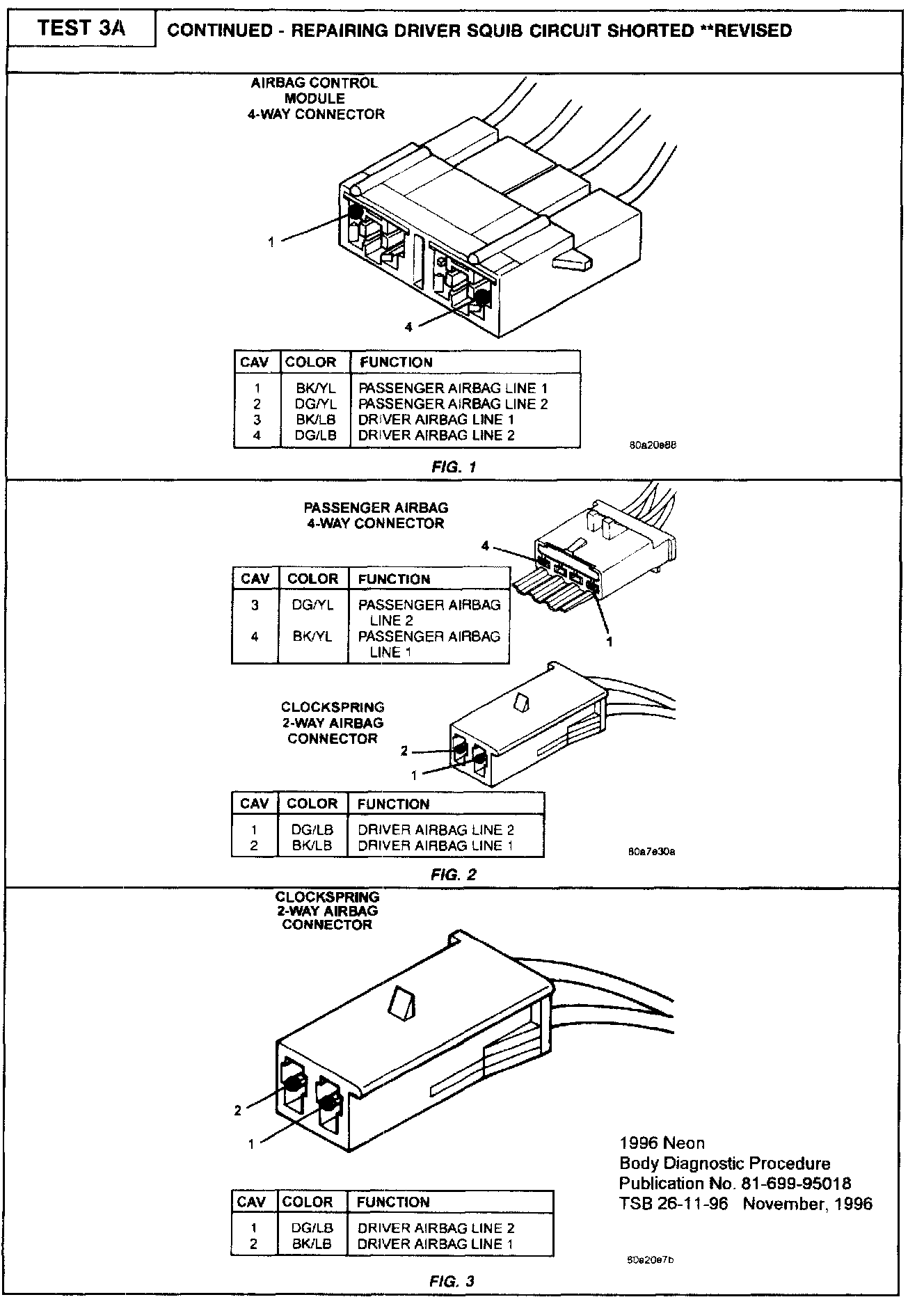

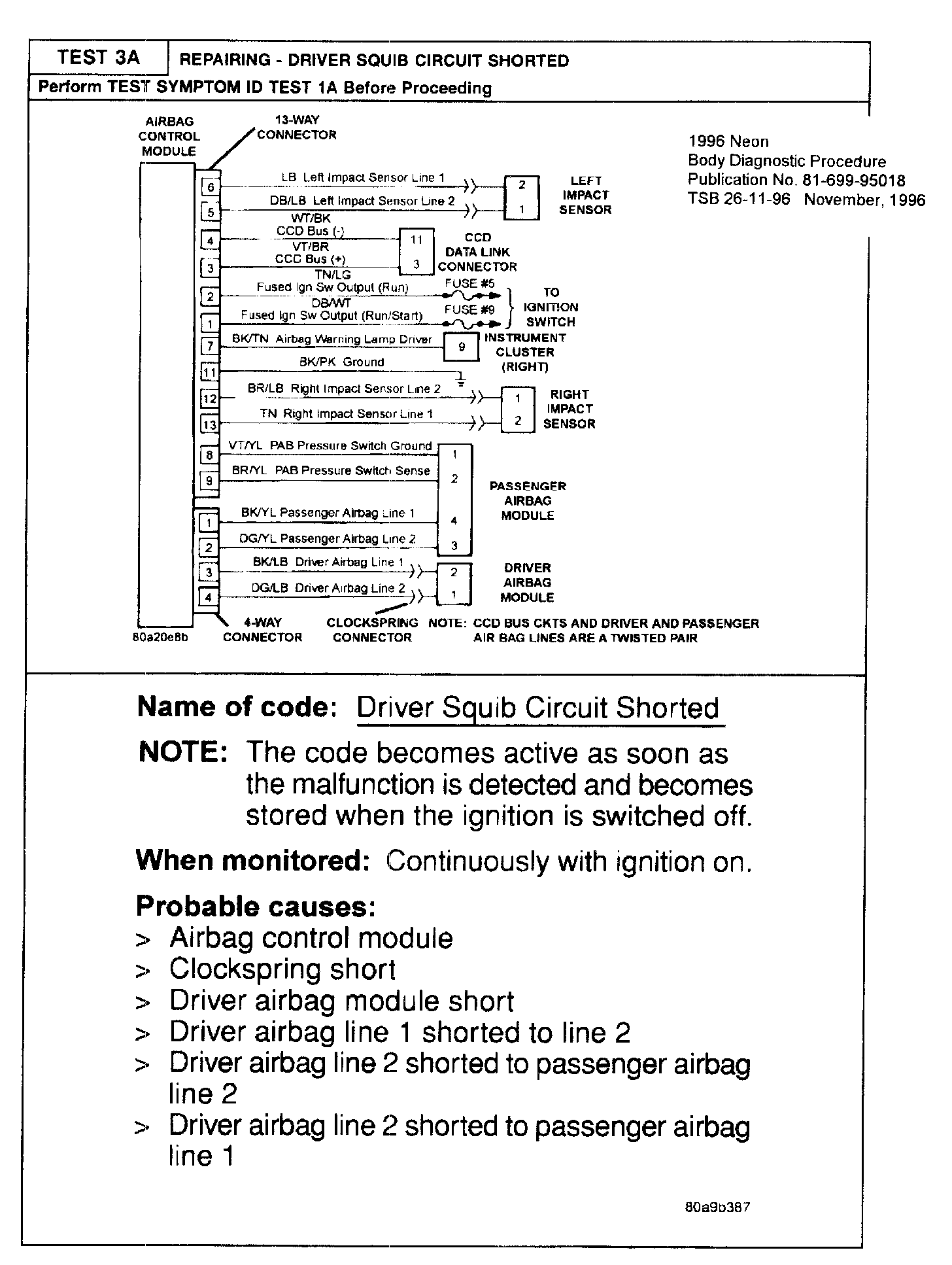

Related Images:

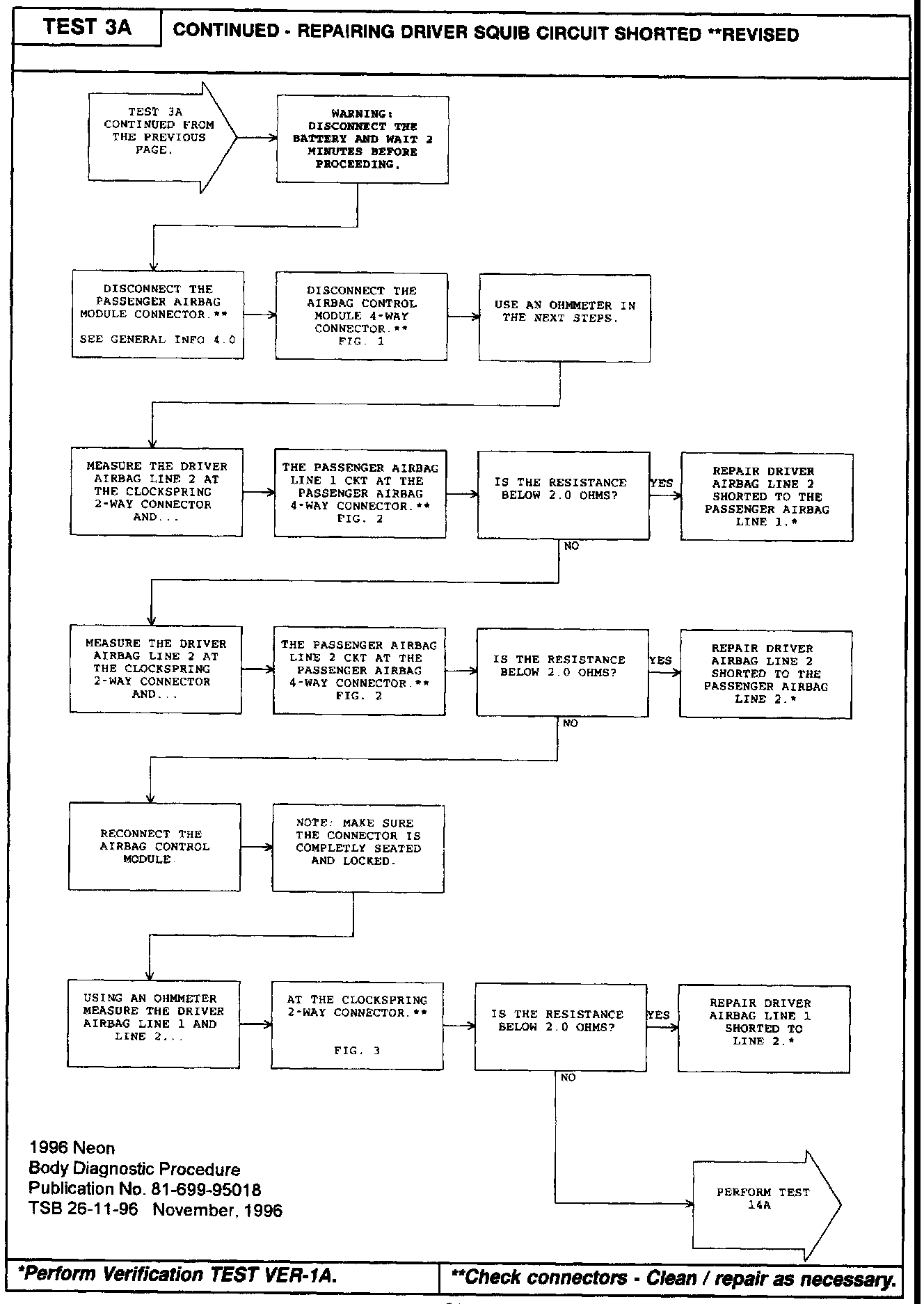

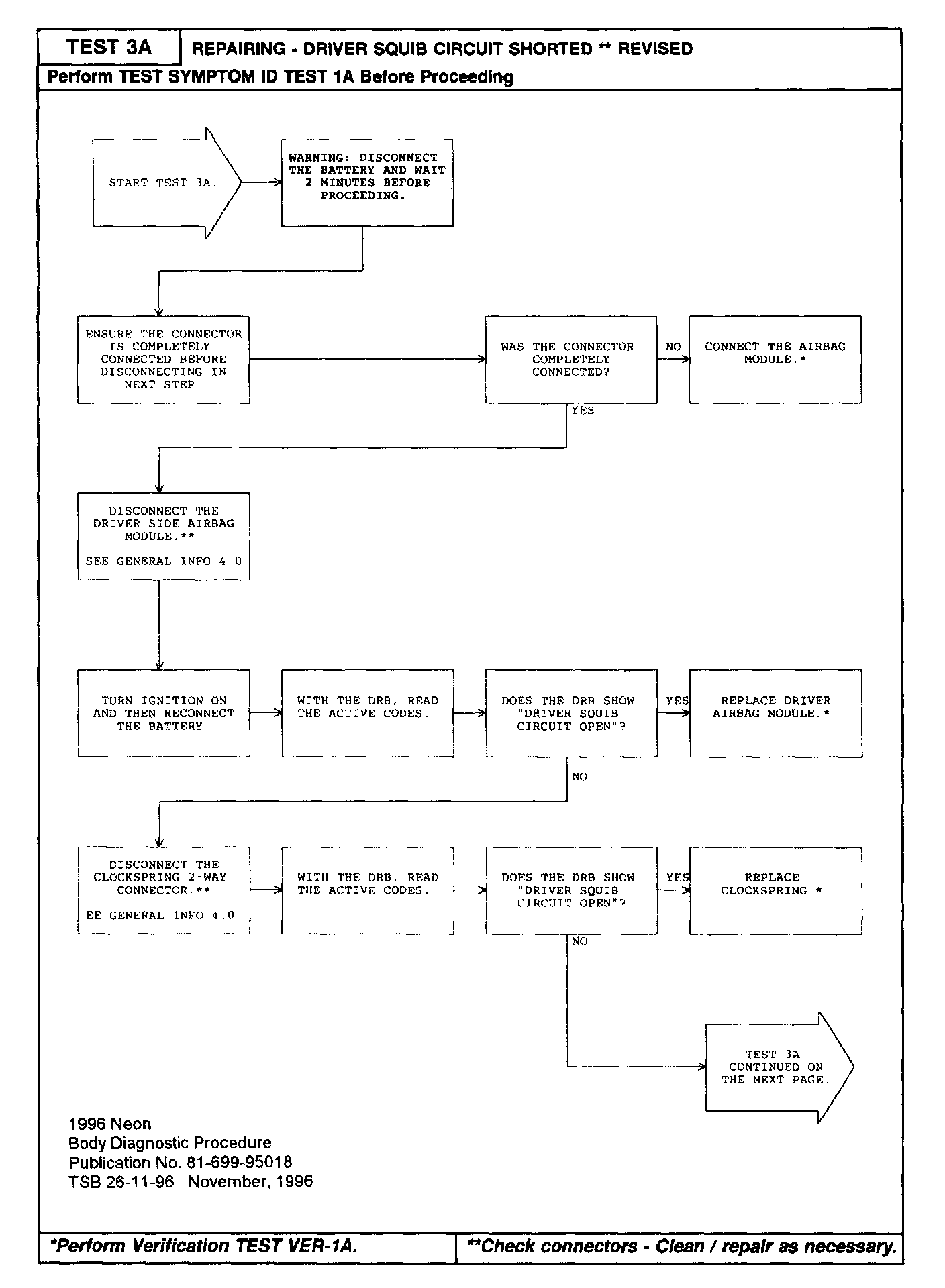

Diagnostic Chart:
