Plymouth
>>
1996
>>
Neon L4-2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Complete Body and Chassis Connector Views
>>
Sheet 8W-80-17
Sheet 8W-80-17

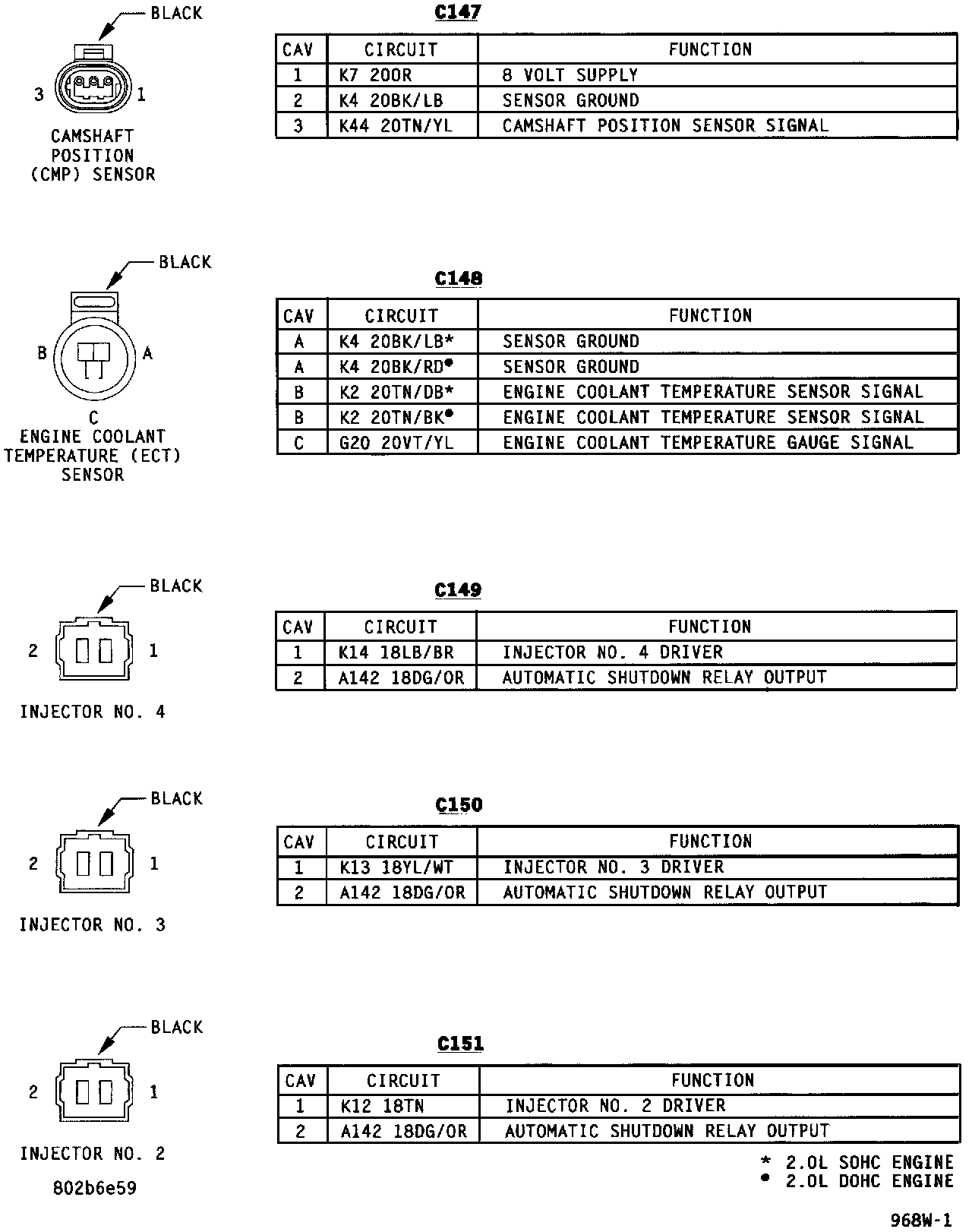

Connector Pin-Outs (Part 14 Of 36):
