Home
>>
Plymouth
>>
1996
>>
Neon L4-2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Complete Body and Chassis Connector Views
>>
Sheet 8W-80-10
Sheet 8W-80-10

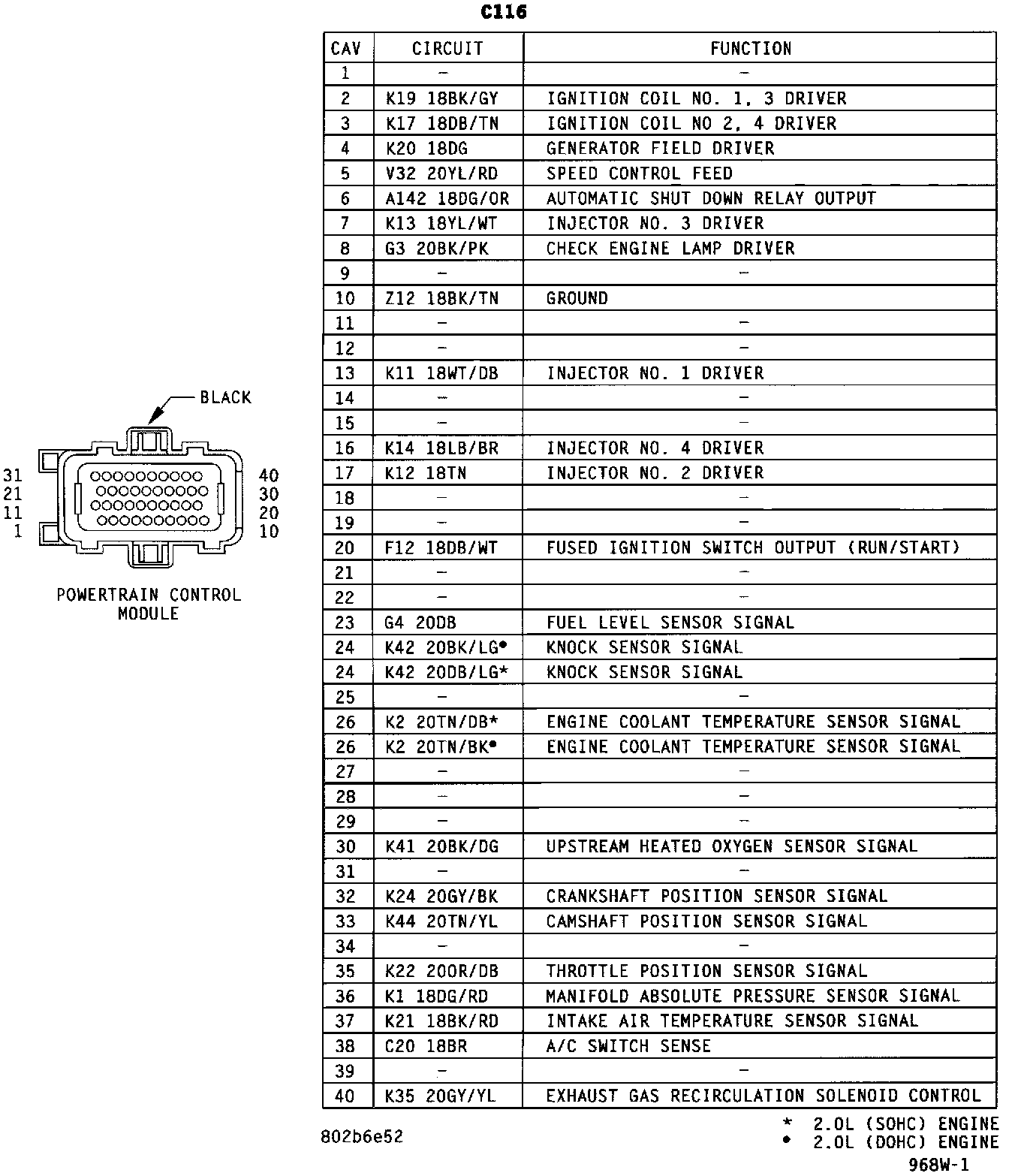

Connector Pin-Outs (Part 7 Of 36):
