Curiosii for ever!: Car repair manuals for everyone.

Home >> Plymouth >> 1995 >> Neon L4-2.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Wiring Diagrams >> Part 5

Part 5

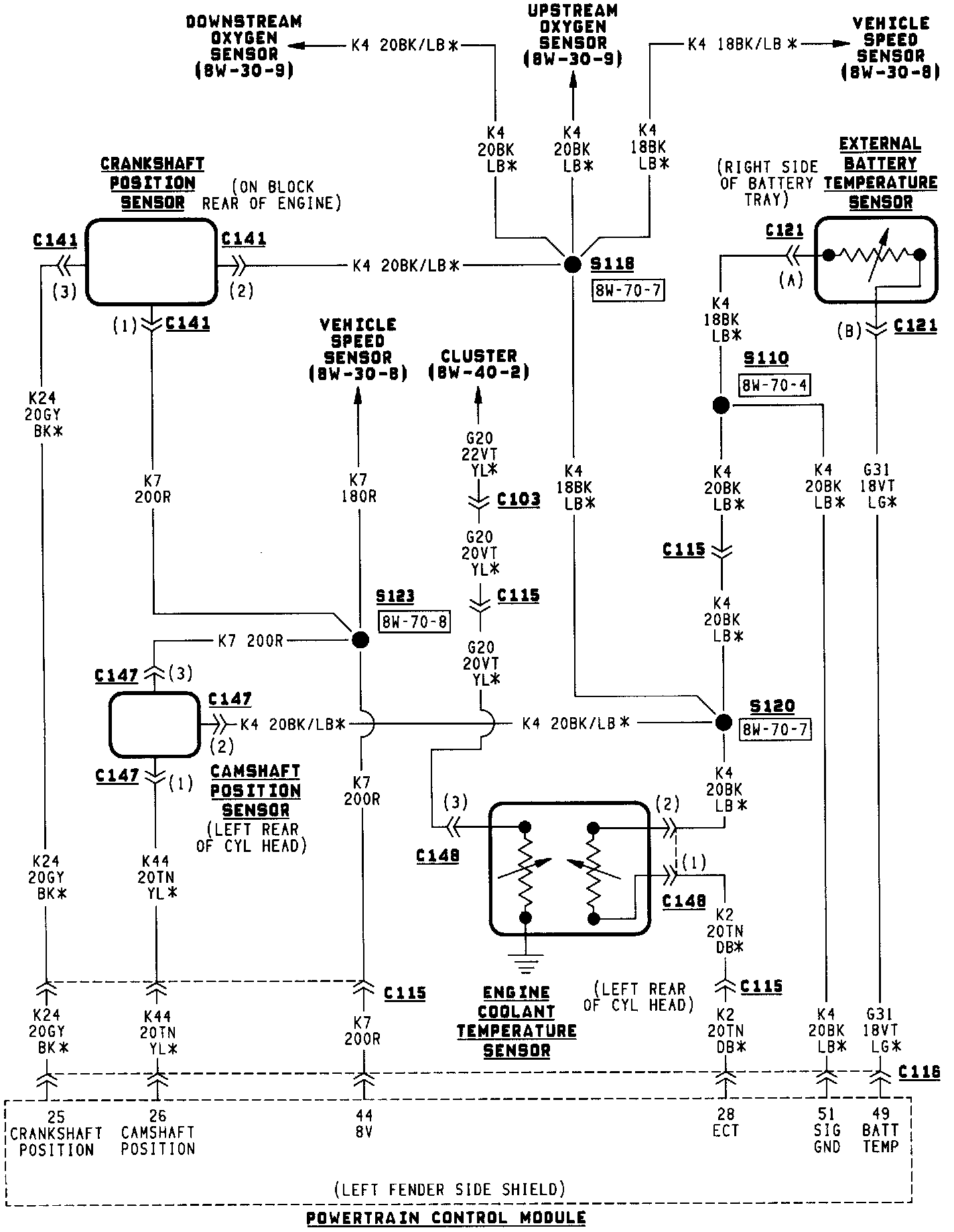

Ignition/Fuel System (Part 5 Of 11):
