Home >> Plymouth >> 1995 >> Neon L4-2.0L SOHC >> Repair and Diagnosis >> Locations >> Connector Locations >> Figure 6

Figure 6

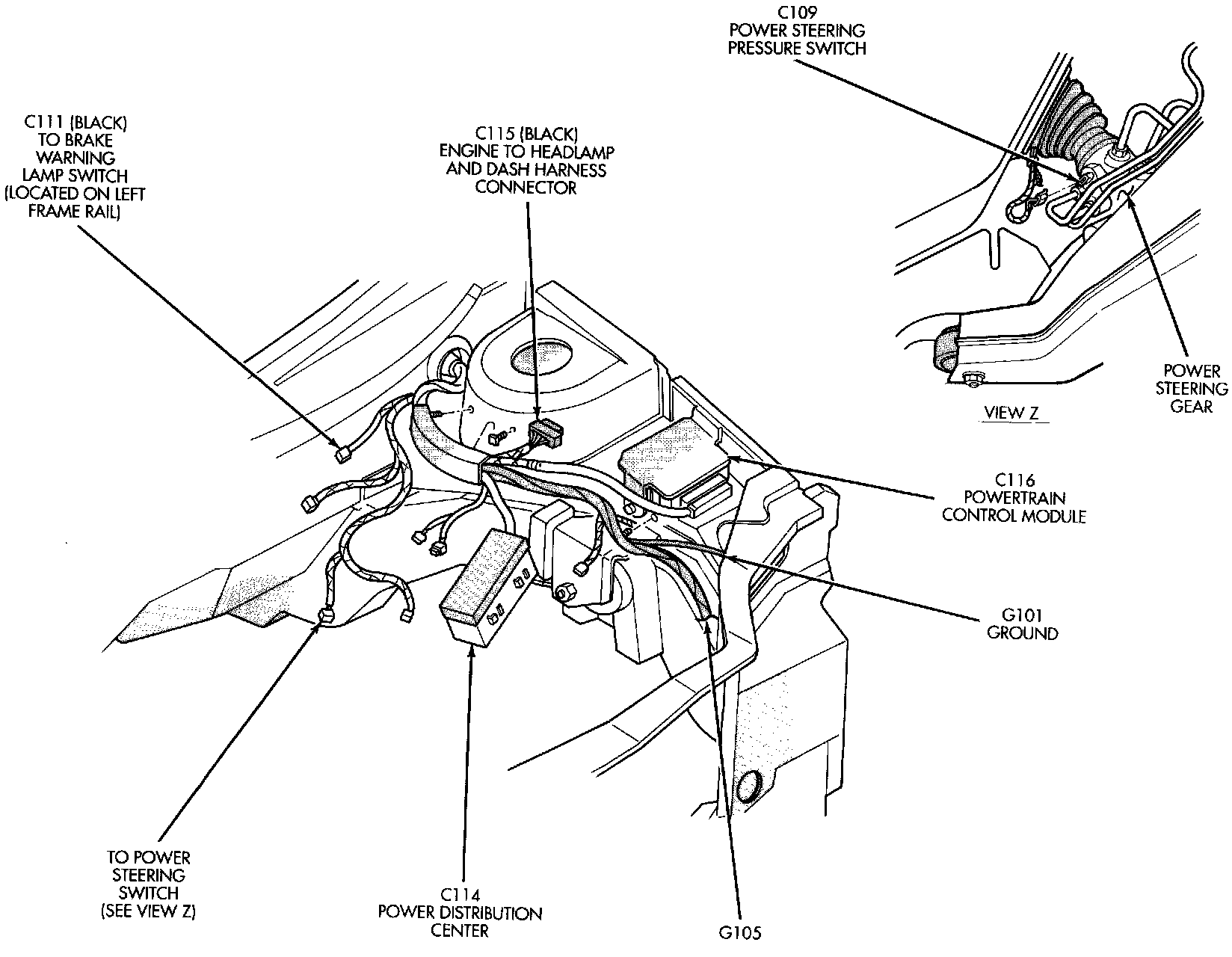

Fig.6 Engine Compartment Connections (Left Side):
