Hazard Warning Flasher: Locations

TURN SIGNAL AND HAZARD WARNING

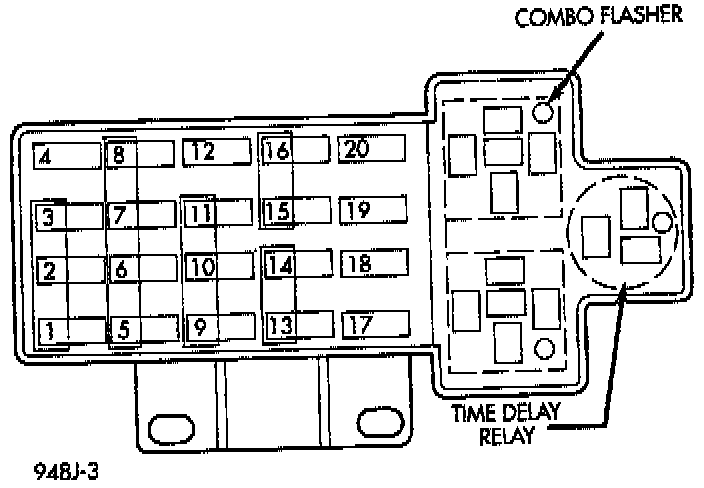

The turn signal flasher and the hazard warning flasher are combined into one unit called a combination flasher (combo-flasher). The combo-flasher controls the flashing of the hazard warning system and the turn signal system. An inoperative bulb or incomplete turn signal circuit will cause the flasher rate tio double. The combo-flasher is located on the fuse block. The combo-flasher is black in color for ease of indentification.
