Home
>>
Plymouth
>>
1995
>>
Neon L4-2.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
A/C Signal
A/C Signal

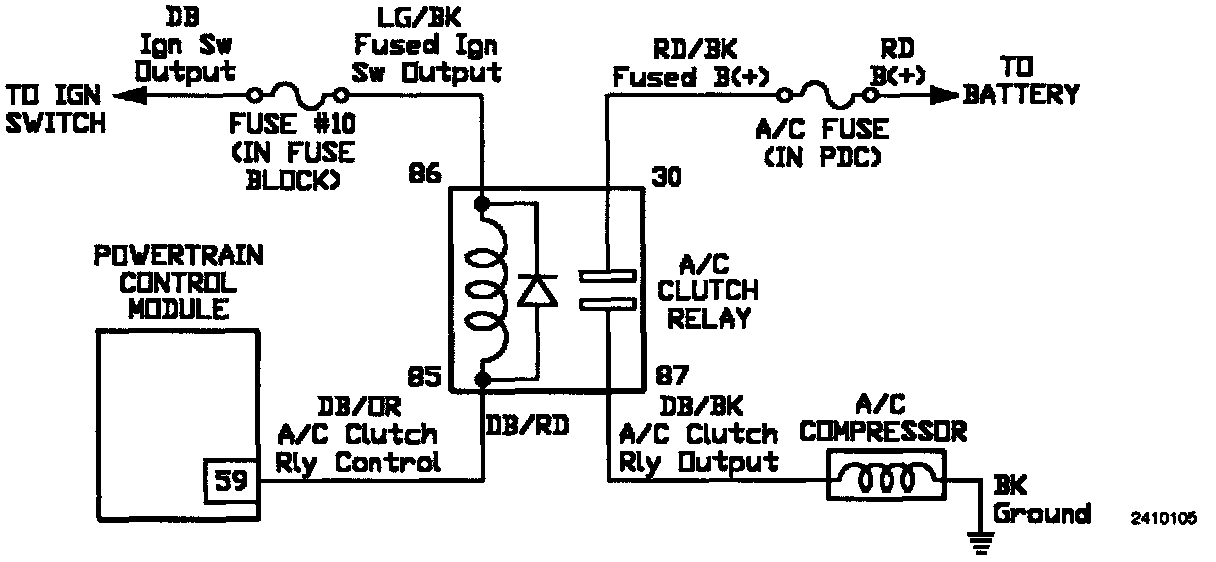

A/C Clutch Relay Circuit:
