Home
>>
Plymouth
>>
1994
>>
Colt Vista FWD L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Fuse Block
>>
Junction Block
Junction Block

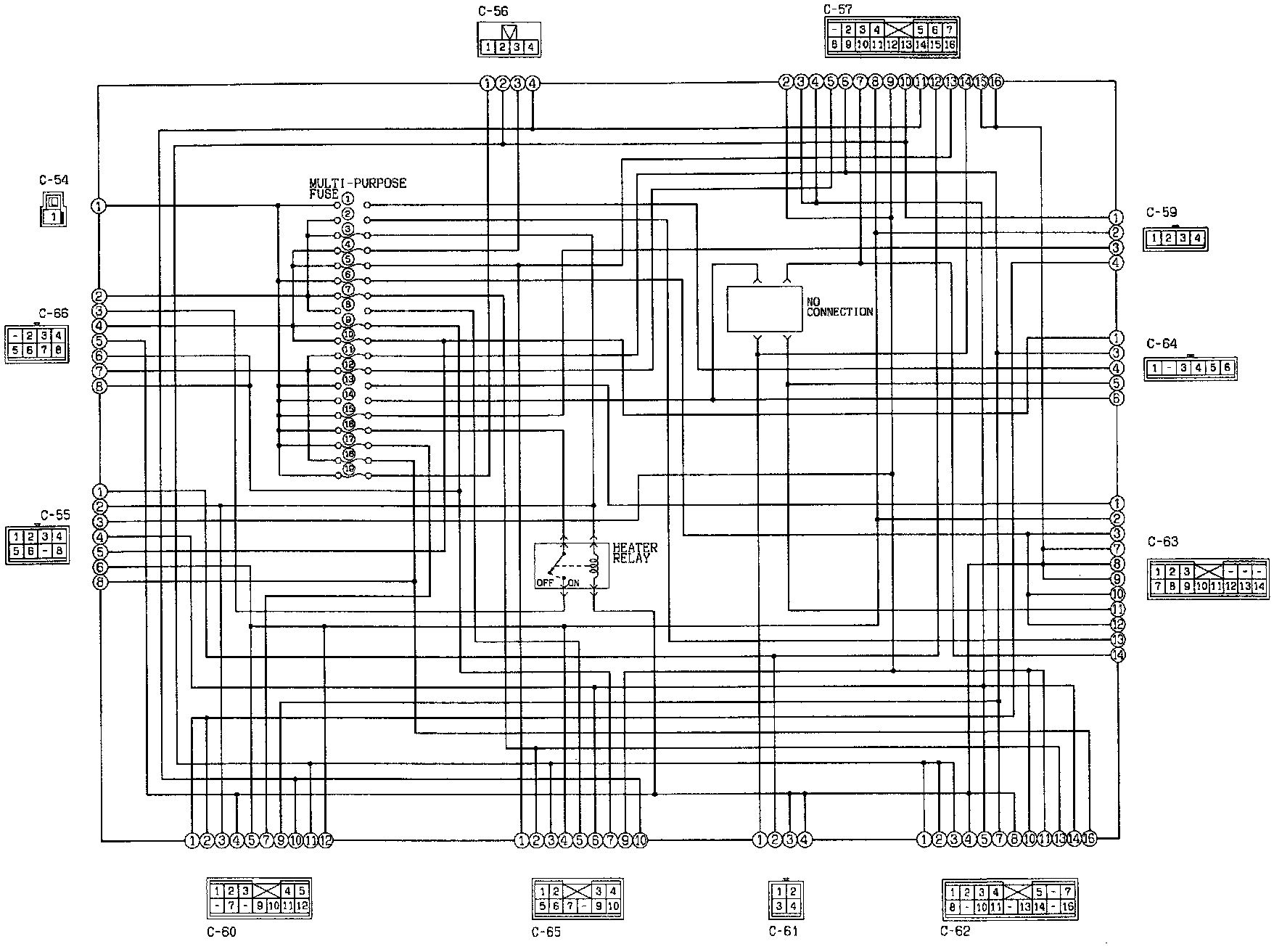

Junction Block:
