Horn Relay: Testing and Inspection

Lower And Upper Beam Relay Continuity Test:

Horn Relay Inspection:

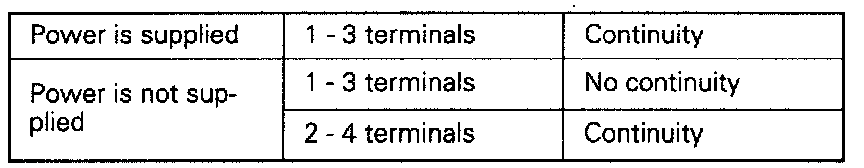

Apply battery voltage to terminal 2, and check the continuity between the terminals when terminal 4 is earthed.
