Plymouth
>>
1994
>>
Acclaim L4-153 2.5L SOHC Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Ignition System
>>
Distributor, Ignition
Distributor, Ignition

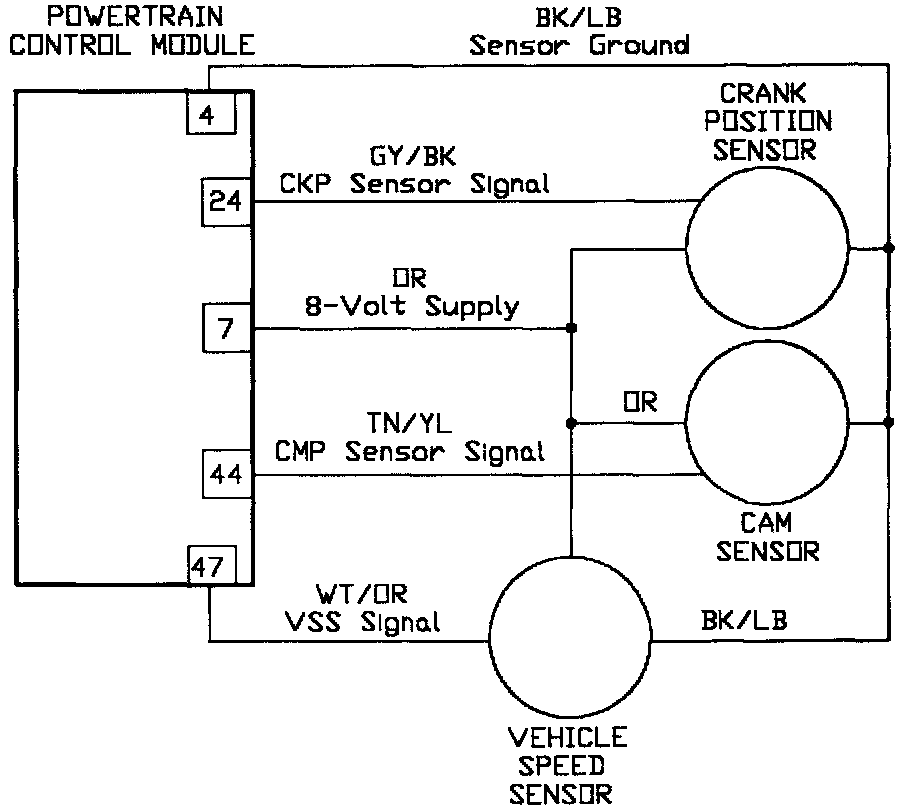

Crankshaft And Camshaft Position Sensor Wiring:
