Plymouth
>>
1993
>>
Sundance Duster V6-181 3.0L SOHC VIN 3 FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Connector Views
Connector Views

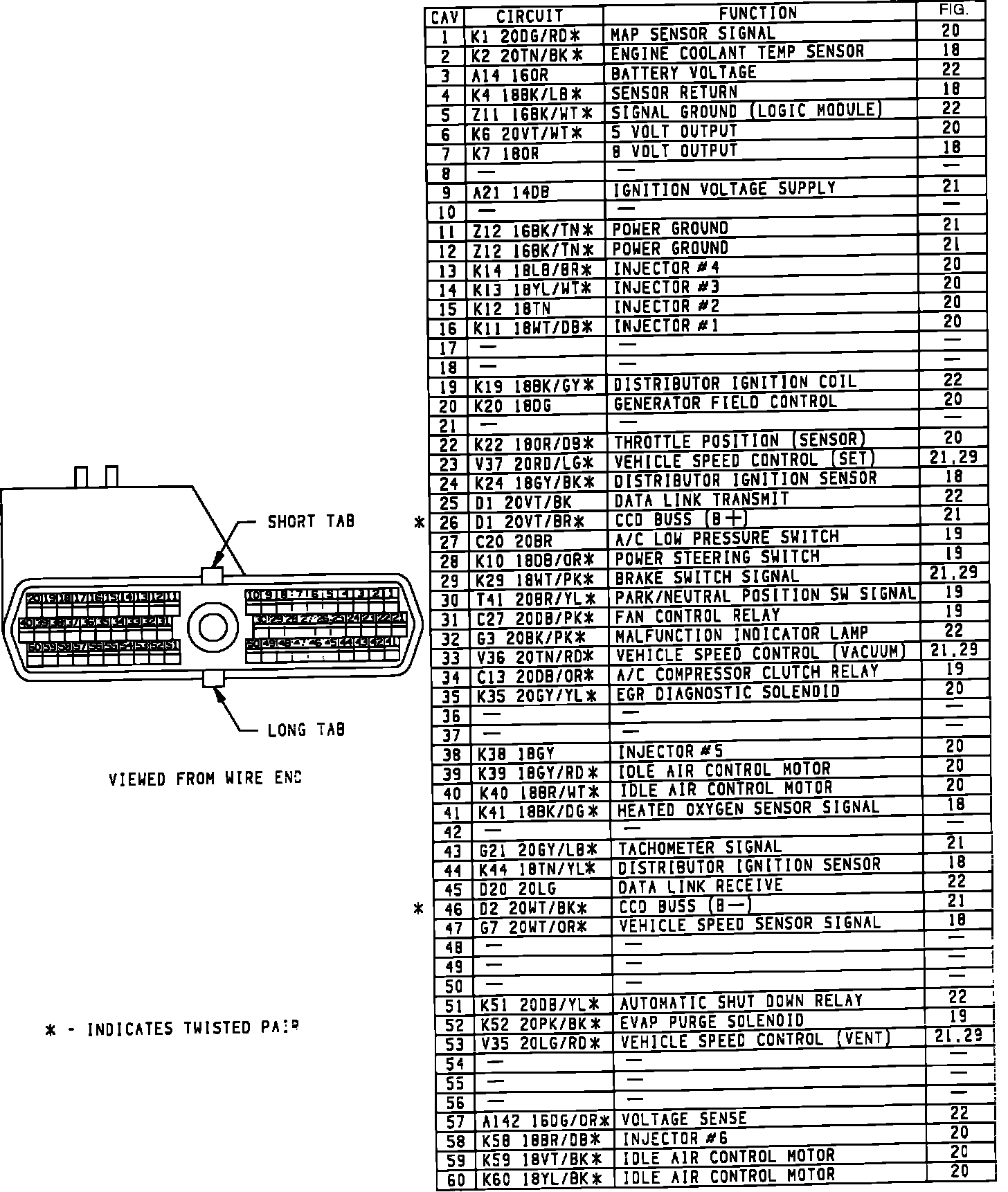

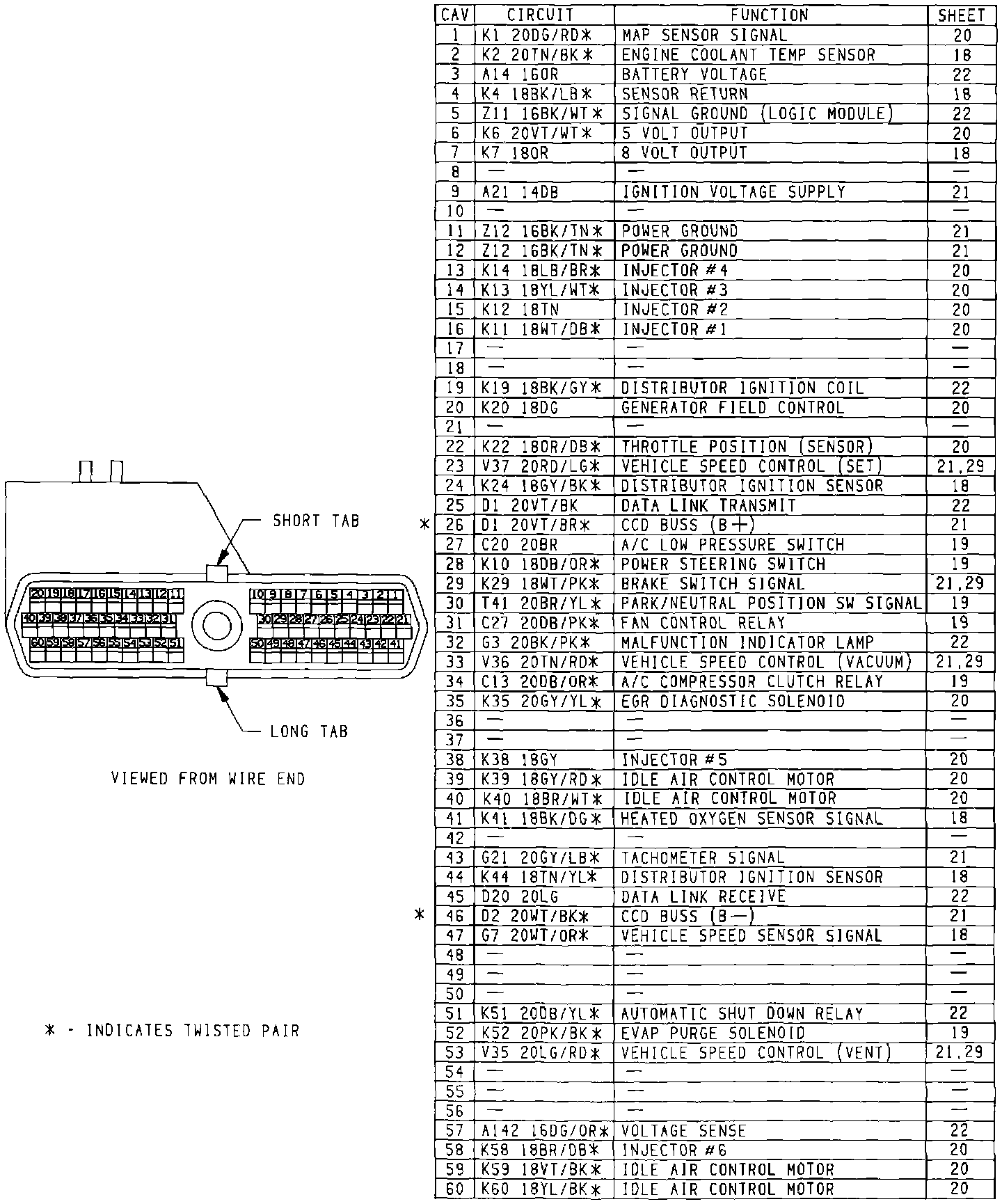

Powertrain Control Module (PCM I) Connector Pinout:
