Plymouth
>>
1993
>>
Laser FWD L4-1753cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
A Connectors - Engine Compartment Harness
A Connectors - Engine Compartment Harness

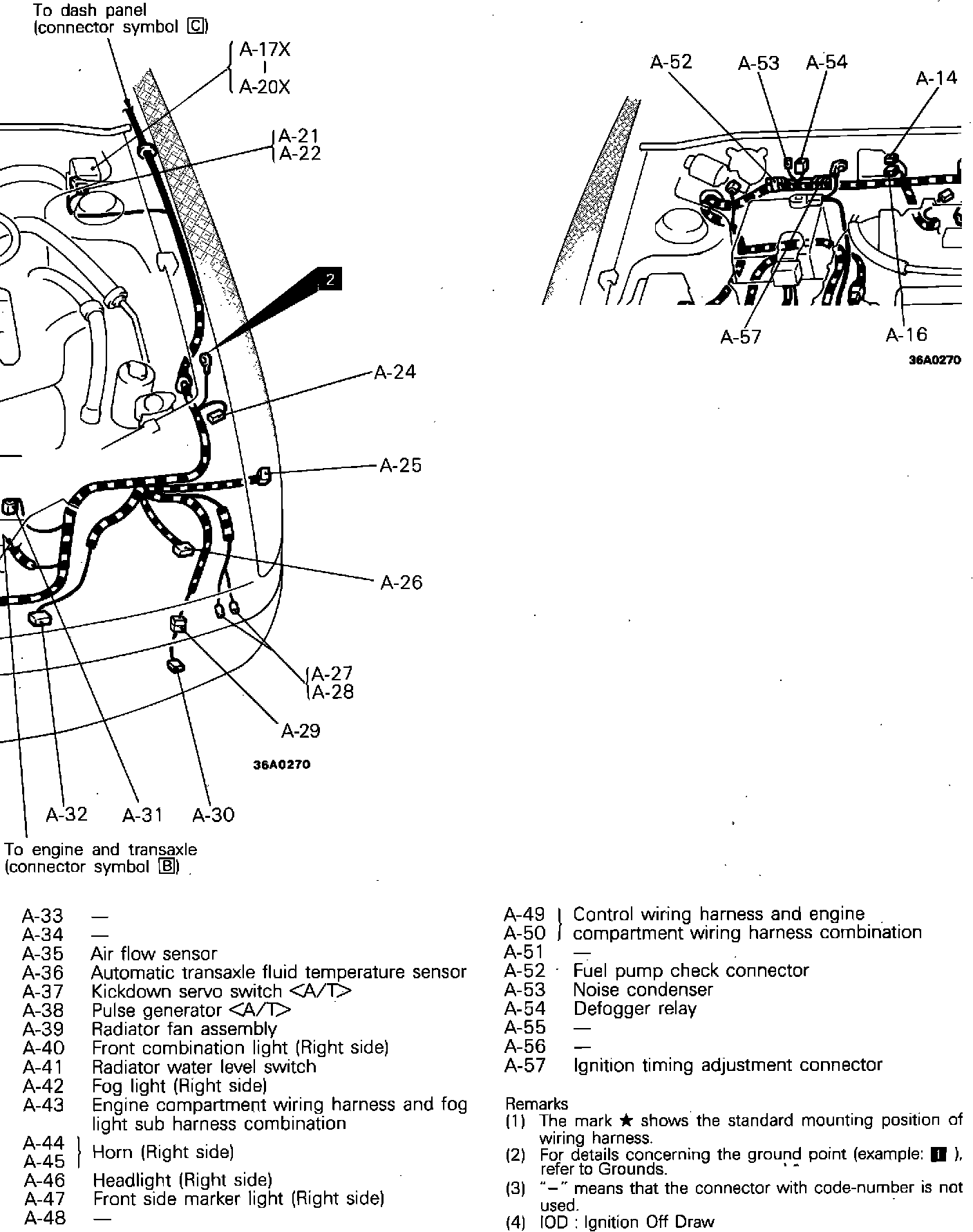

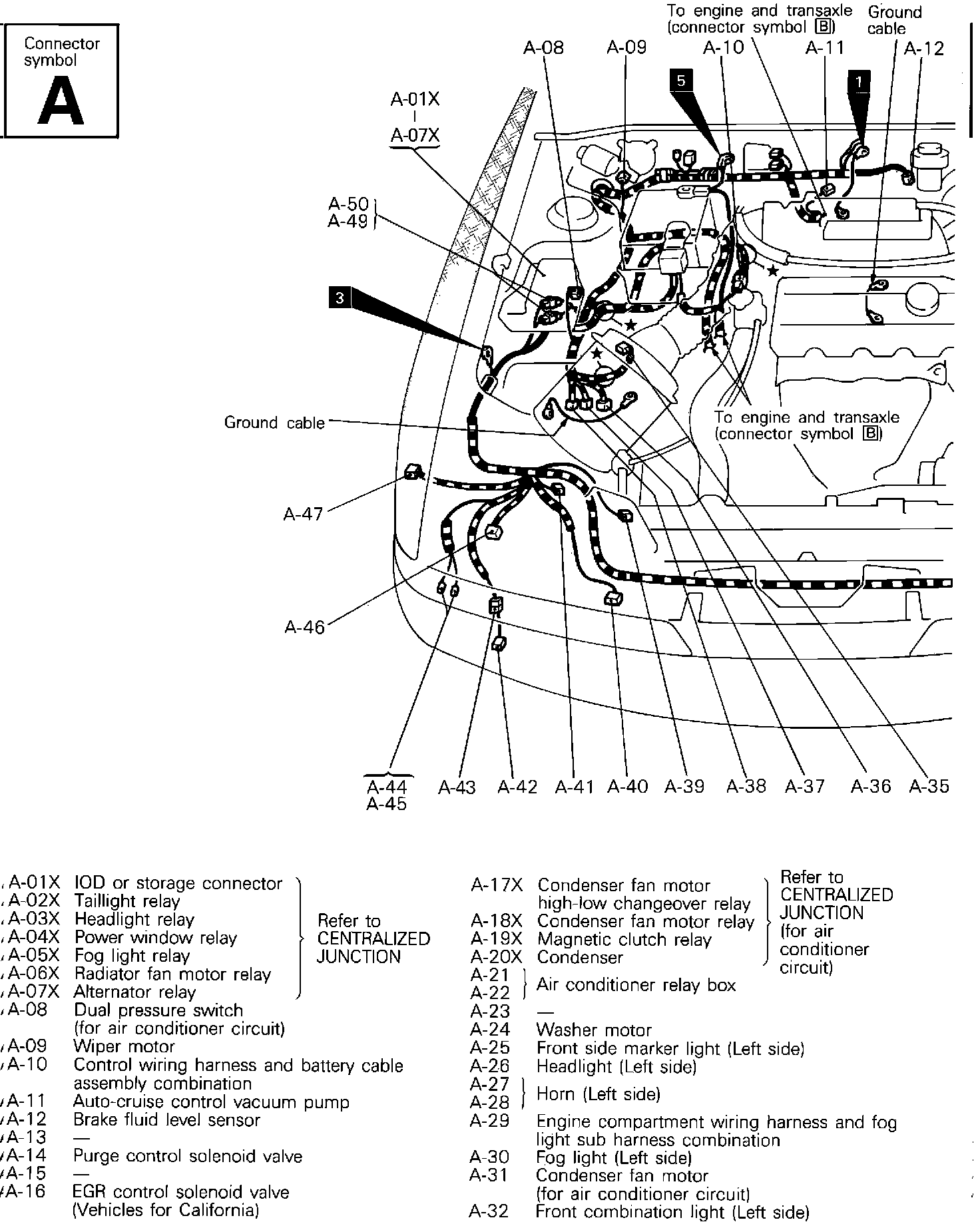

Connector Locations (Engine Compartment):
Connector Locations (Engine Compartment):
