Plymouth
>>
1993
>>
Laser FWD L4-1753cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Brake Light Switch
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

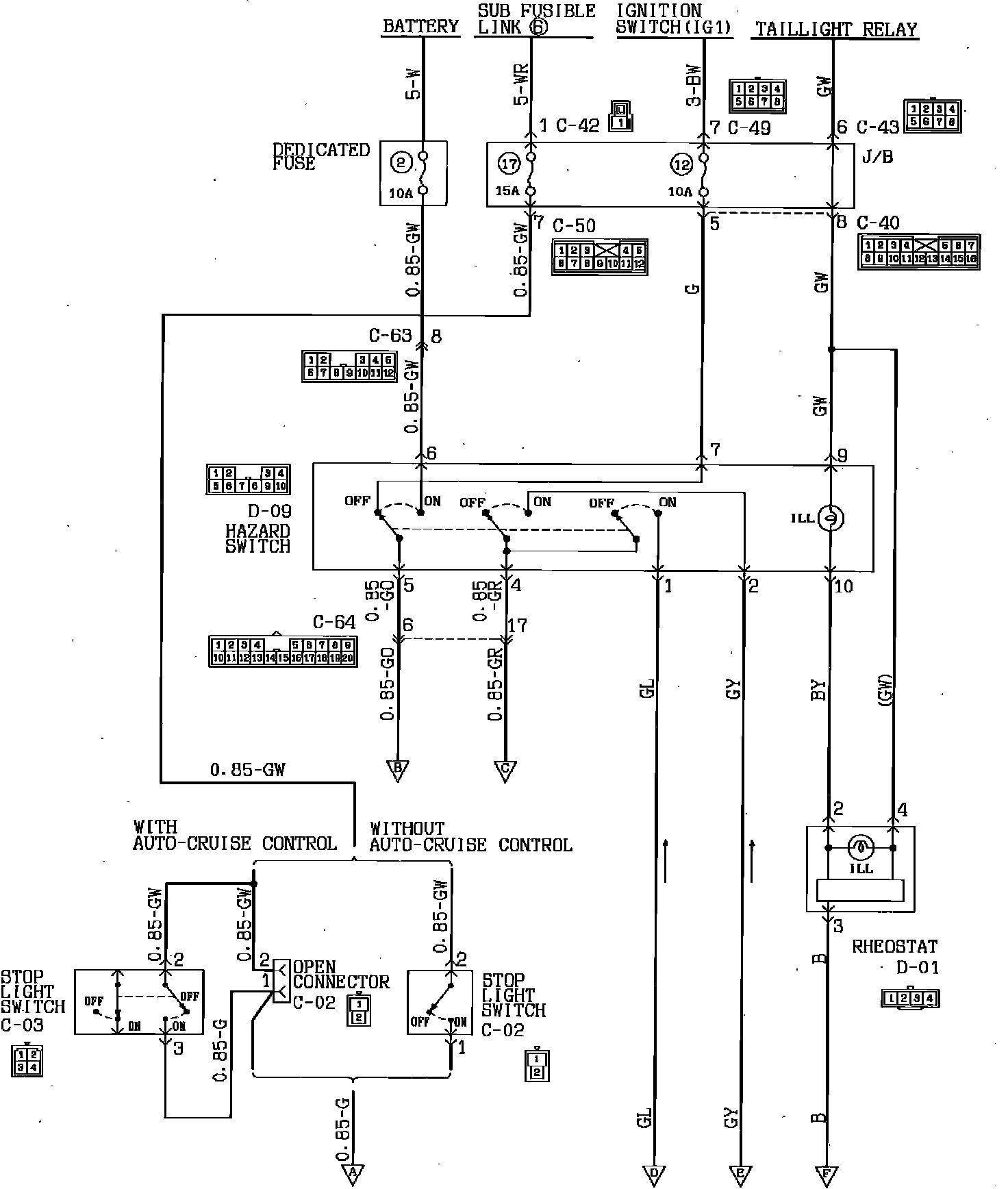

Turn Signal, Hazard, And Stop Lamps:

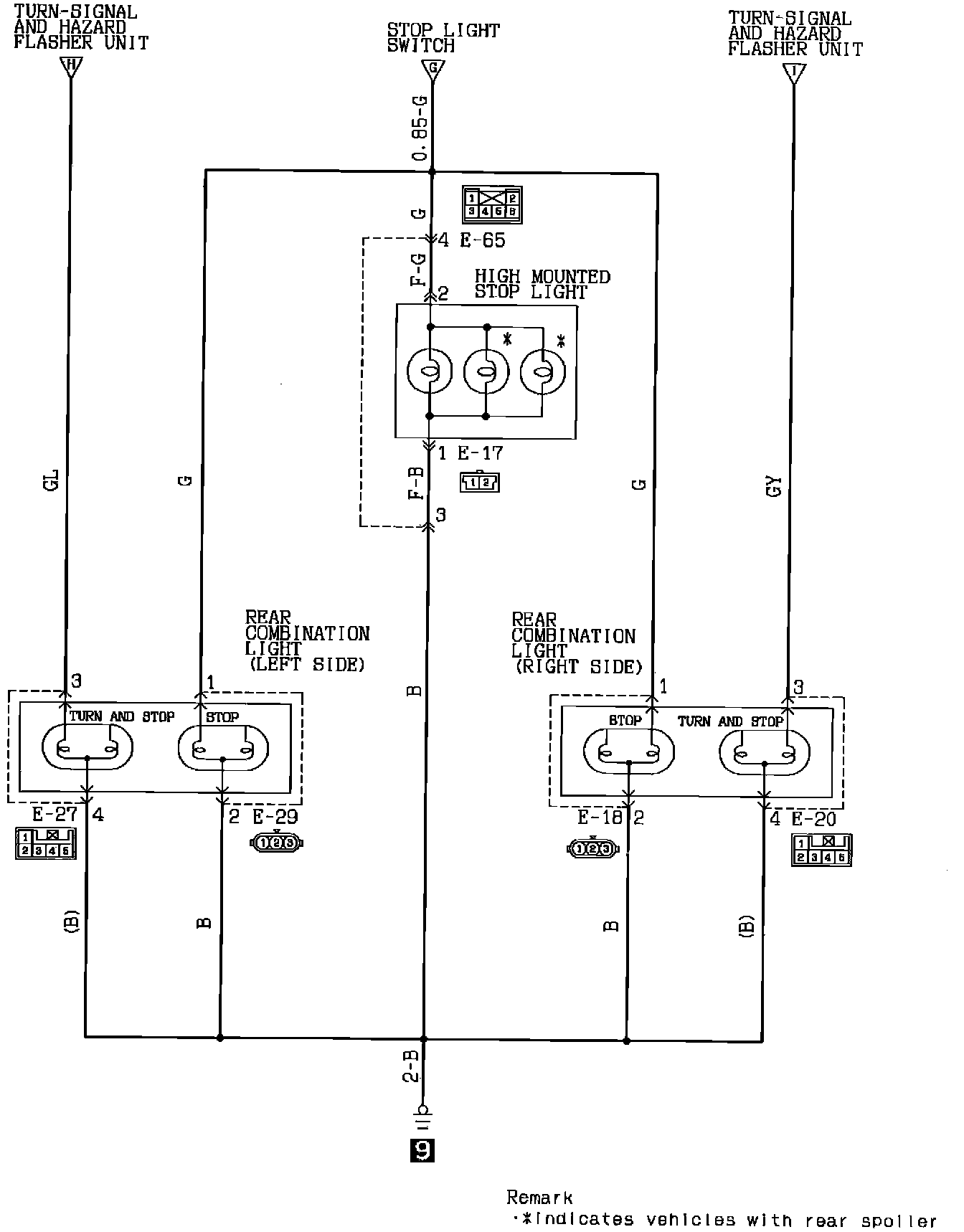

Turn Signal, Hazard, And Stop Lamps:

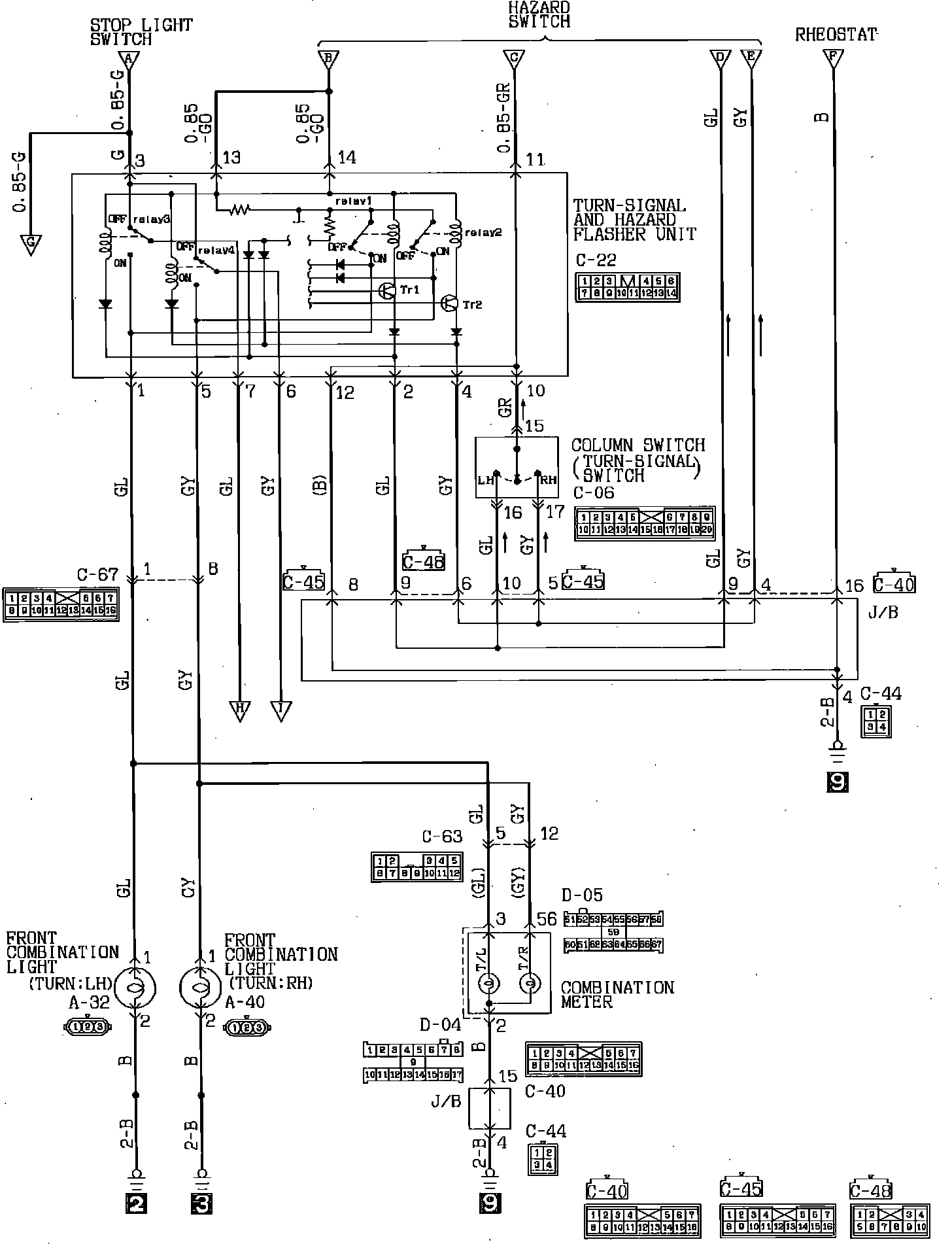

Turn Signal, Hazard, And Stop Lamps:
