Home >> Plymouth >> 1993 >> Laser FWD L4-1753cc 1.8L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> With Manual Transmission >> Part 4 of 4

Part 4 of 4

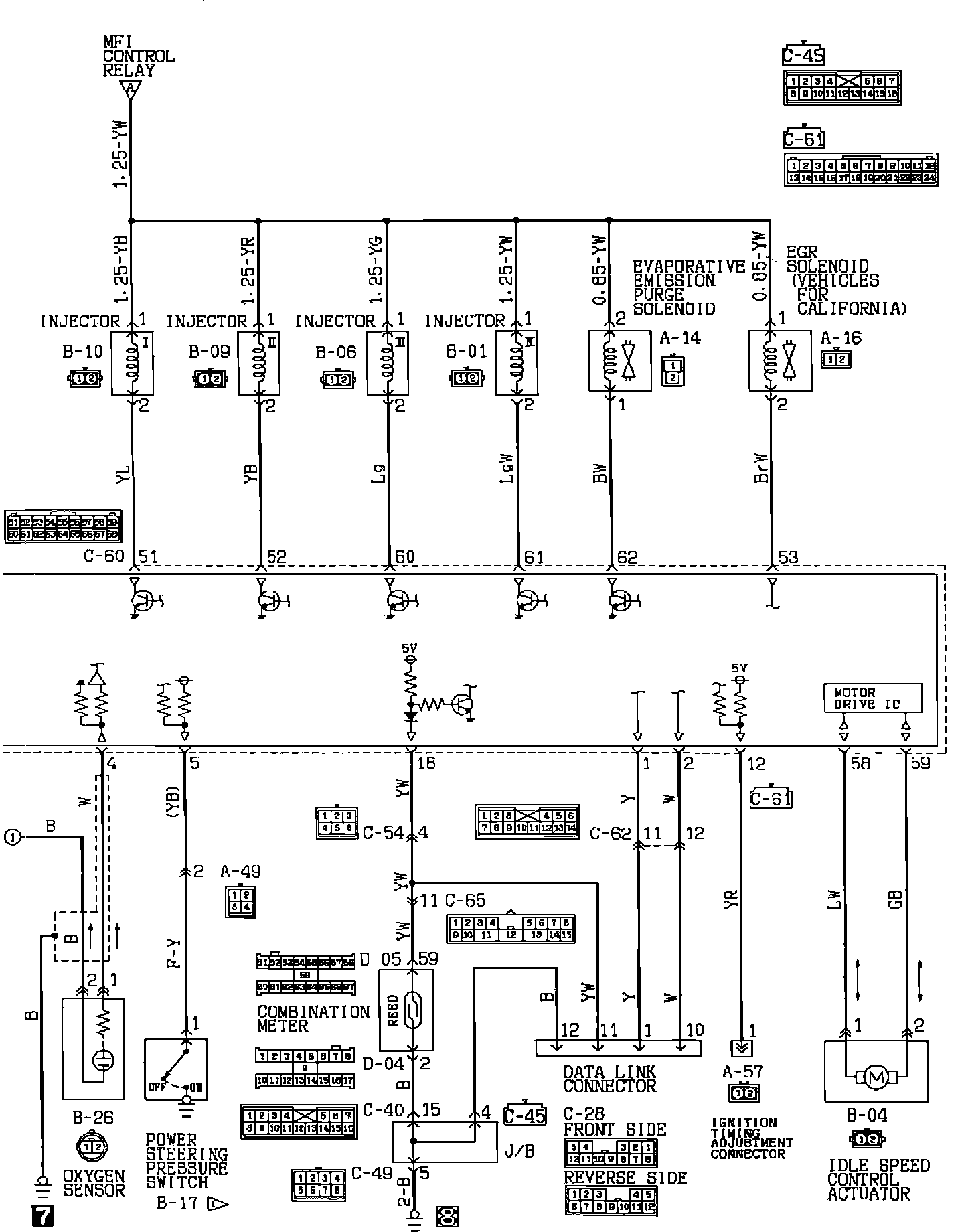

MPI Circuit Diagram 4 Of 4:
