Home >> Plymouth >> 1993 >> Laser FWD L4-1753cc 1.8L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> With Automatic Transmission >> Part 3 of 5

Part 3 of 5

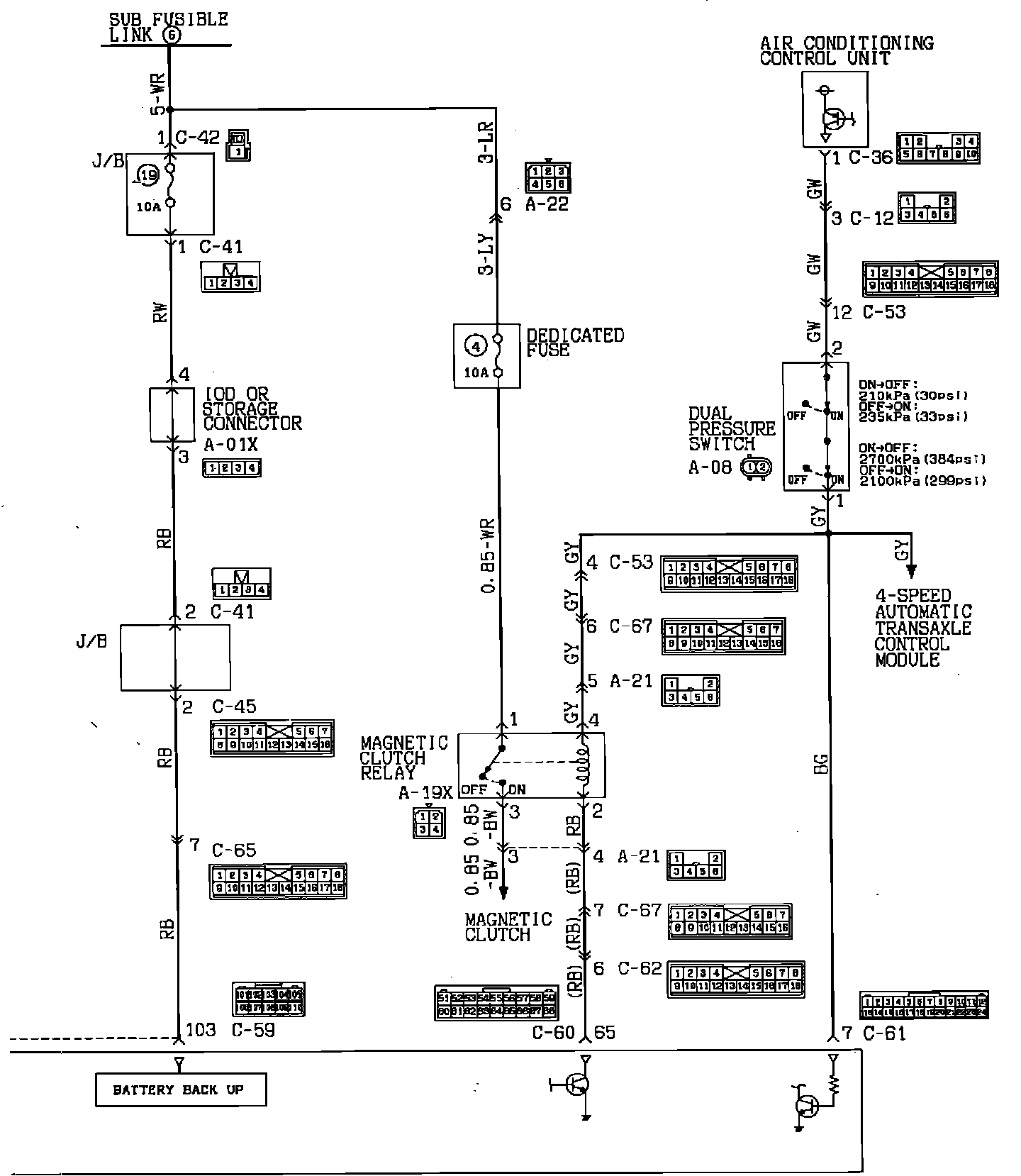

MPI Circuit Diagram 3 Of 5:
