Fusible Link
Fusible Link

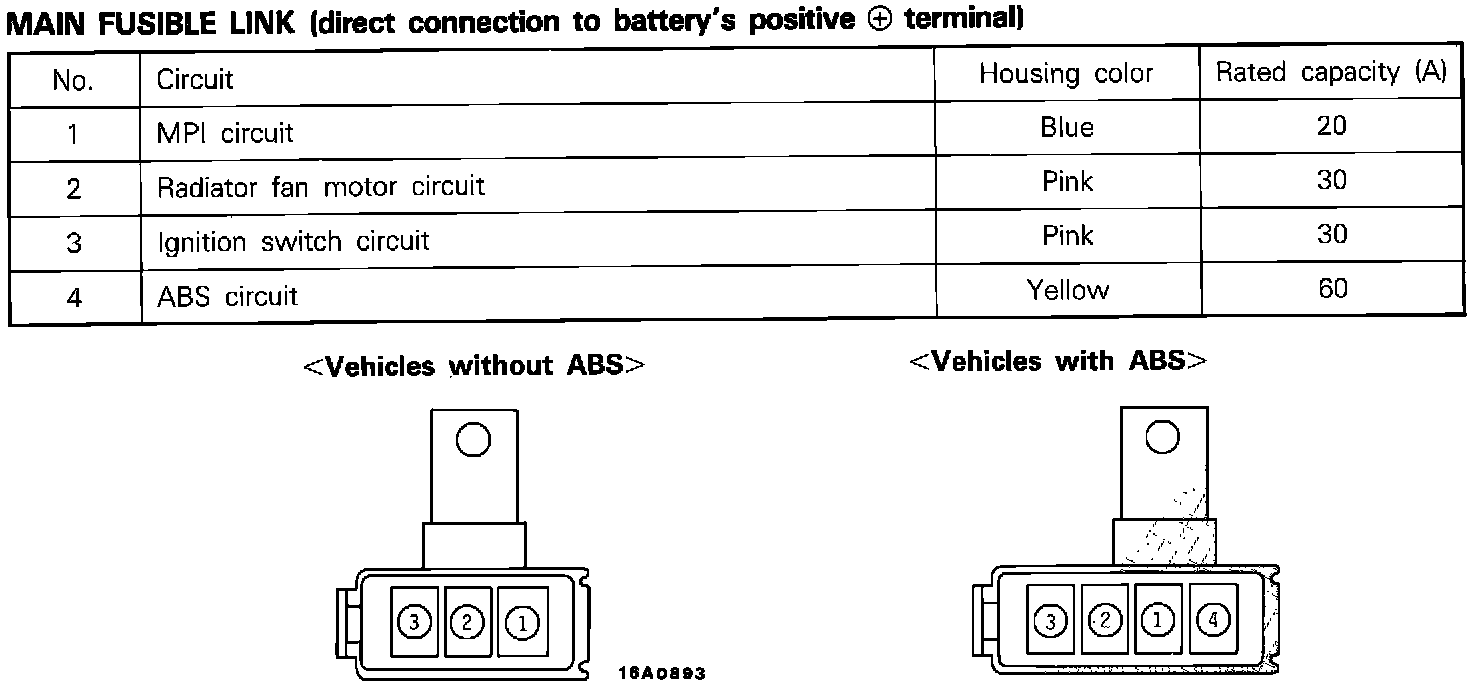

Centralized Junction (Main Fusible Link):
Centralized Junction (Sub-Fusible Link):
