Home
>>
Plymouth
>>
1993
>>
Laser FWD L4-1753cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Diagnostic Charts
>>
Chart E3 - Abnormality of G Sensor Circuit
Chart E3 - Abnormality of G Sensor Circuit

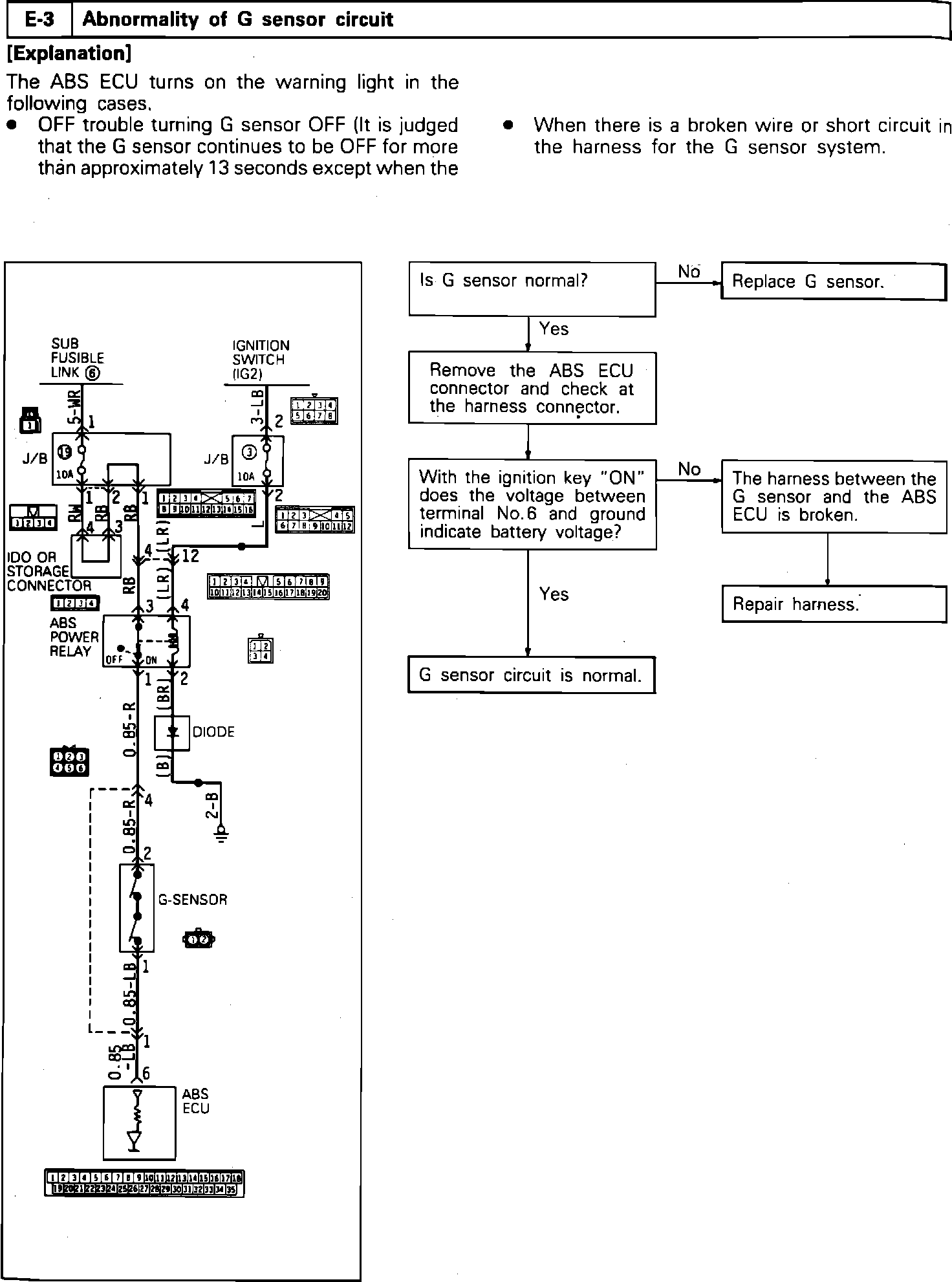

Fig. 27 ABS Chart E-3--Abnormality Of G Sensor Circuit AWD:
