Colt Vista 4WD L4-2350cc 2.4L SOHC
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Lighting and Horns
>>
Headlamp Control Module
>>
Diagrams
>>
Electrical Diagrams
>>
With Daytime Running Lights
With Daytime Running Lights

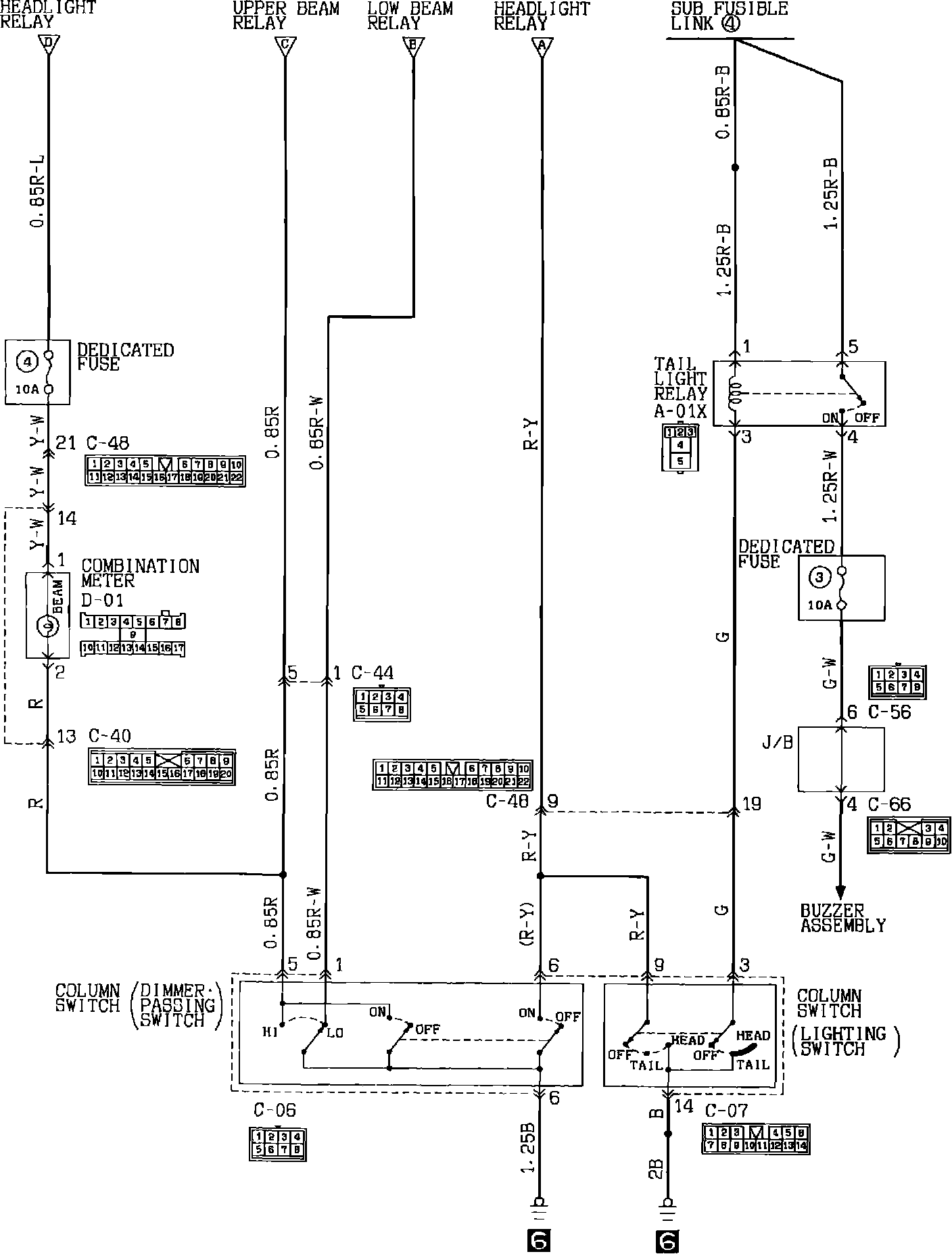

Headlight Circuit Diagram:

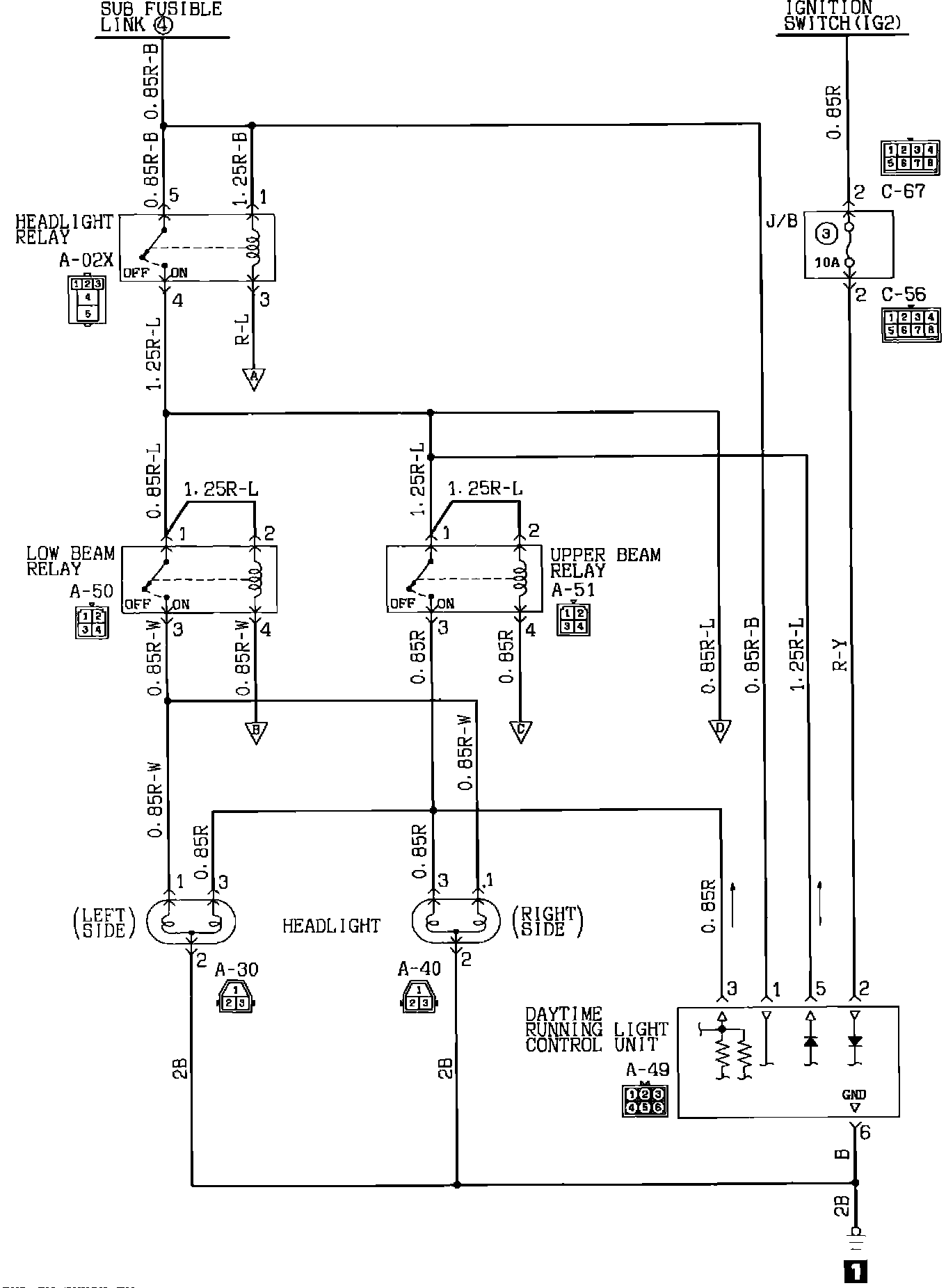

Headlight Circuit Diagram:
