Home >> Plymouth >> 1993 >> Colt Vista 4WD L4-2350cc 2.4L SOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> Part 5 of 5

Part 5 of 5

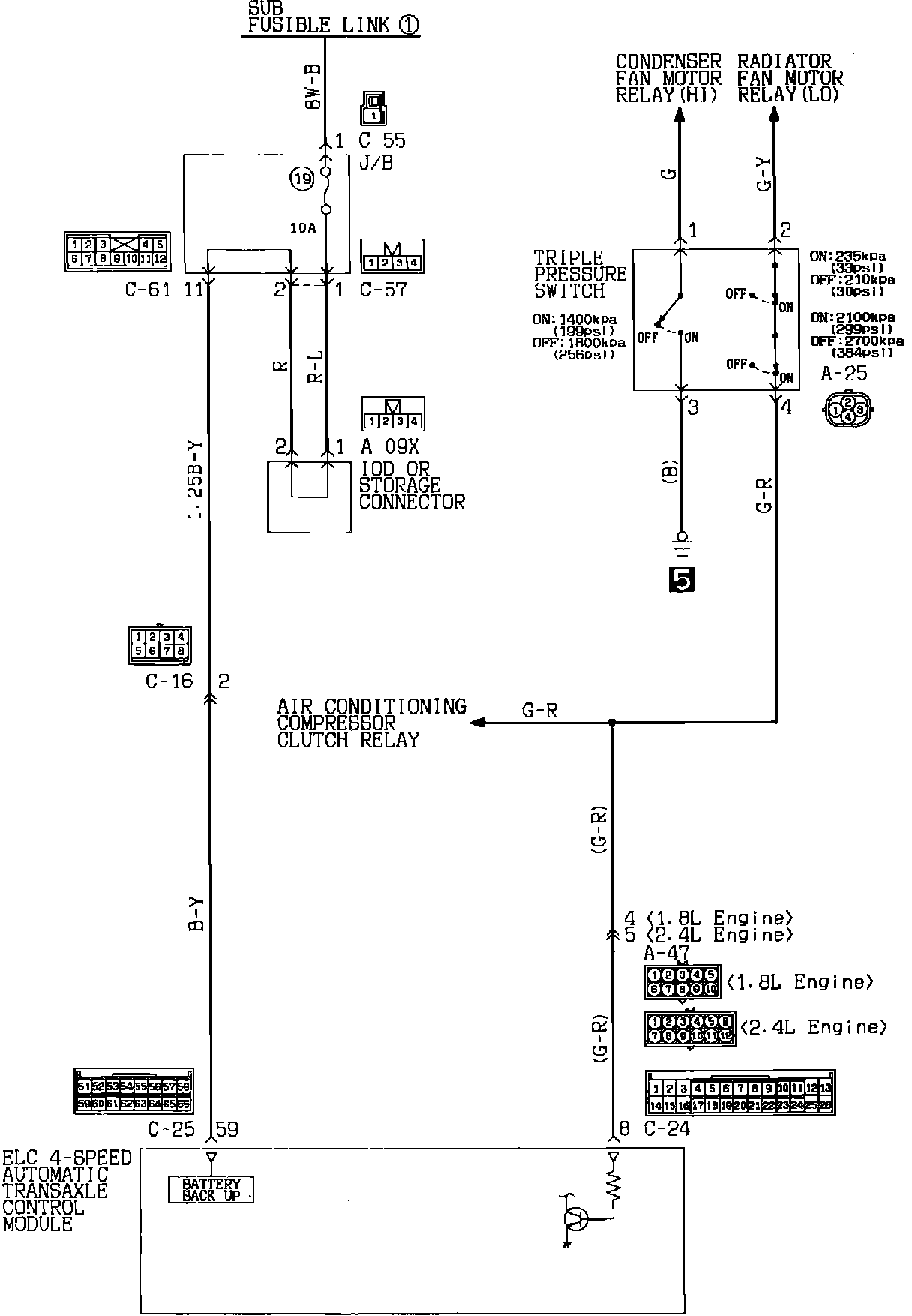

4 Speed Automatic Transmission Circuit:
