Home >> Plymouth >> 1993 >> Colt Vista 4WD L4-2350cc 2.4L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Trunk / Liftgate >> Type A

Type A

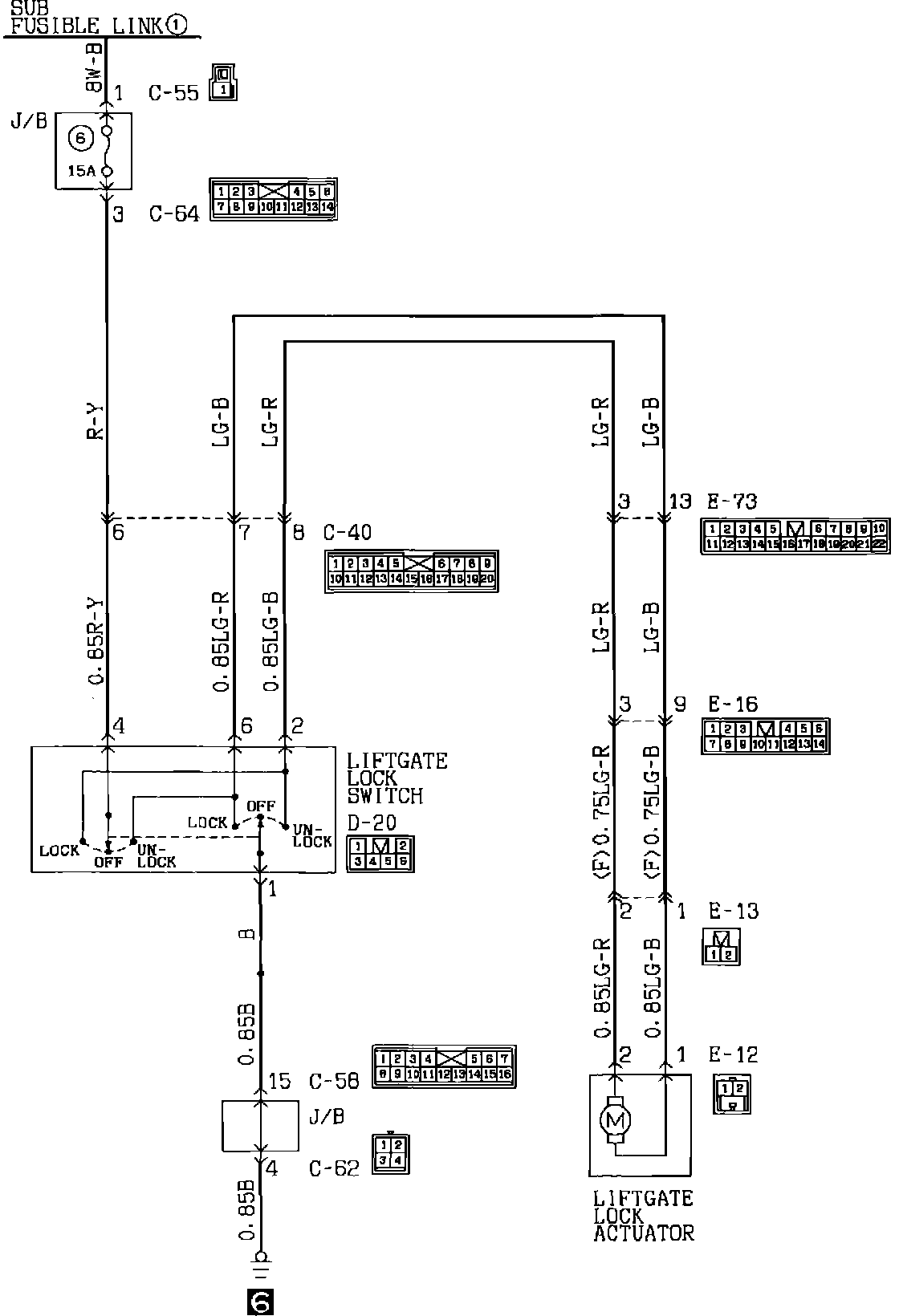

Liftgate Lock System:
