Home >> Plymouth >> 1993 >> Colt Vista 4WD L4-1795cc 1.8L SOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Condenser Fan Motor Relay >> Testing and Inspection

Condenser Fan Motor Relay: Testing and Inspection

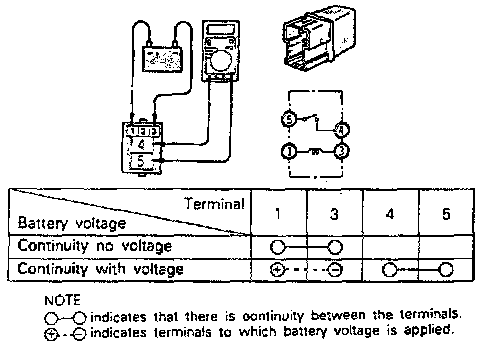

Fig. 53 - Condenser Fan Motor Relay Test:
