Radiator Cooling Fan Temperature Sensor / Switch
Radiator Cooling Fan Temperature Sensor / Switch

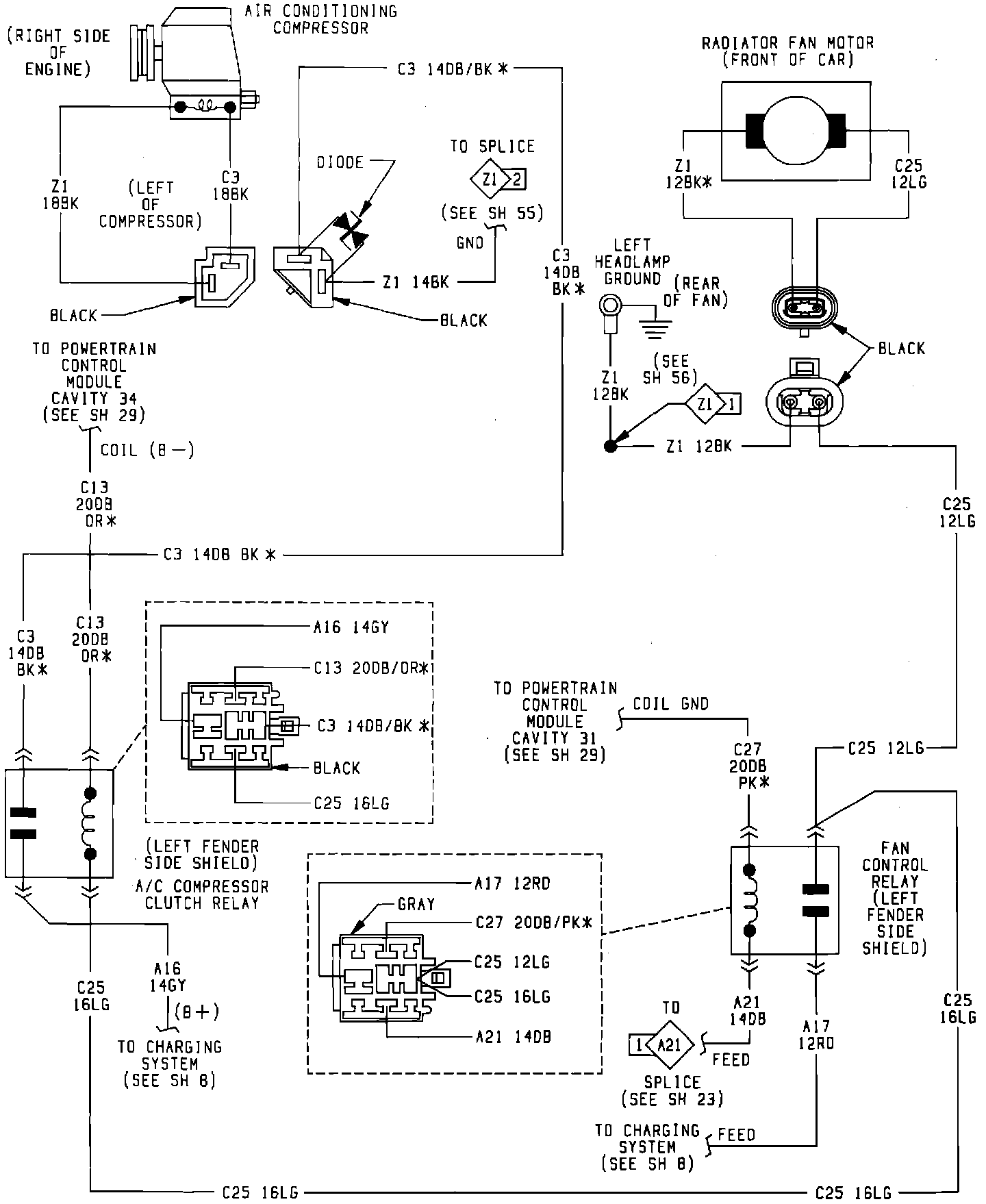

Fan Control System With A/C And Heater System:
