Home >> Plymouth >> 1992 >> Laser AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Headlamp Control Module >> Diagrams >> Electrical Diagrams >> Without Daytime Running Lights

Without Daytime Running Lights

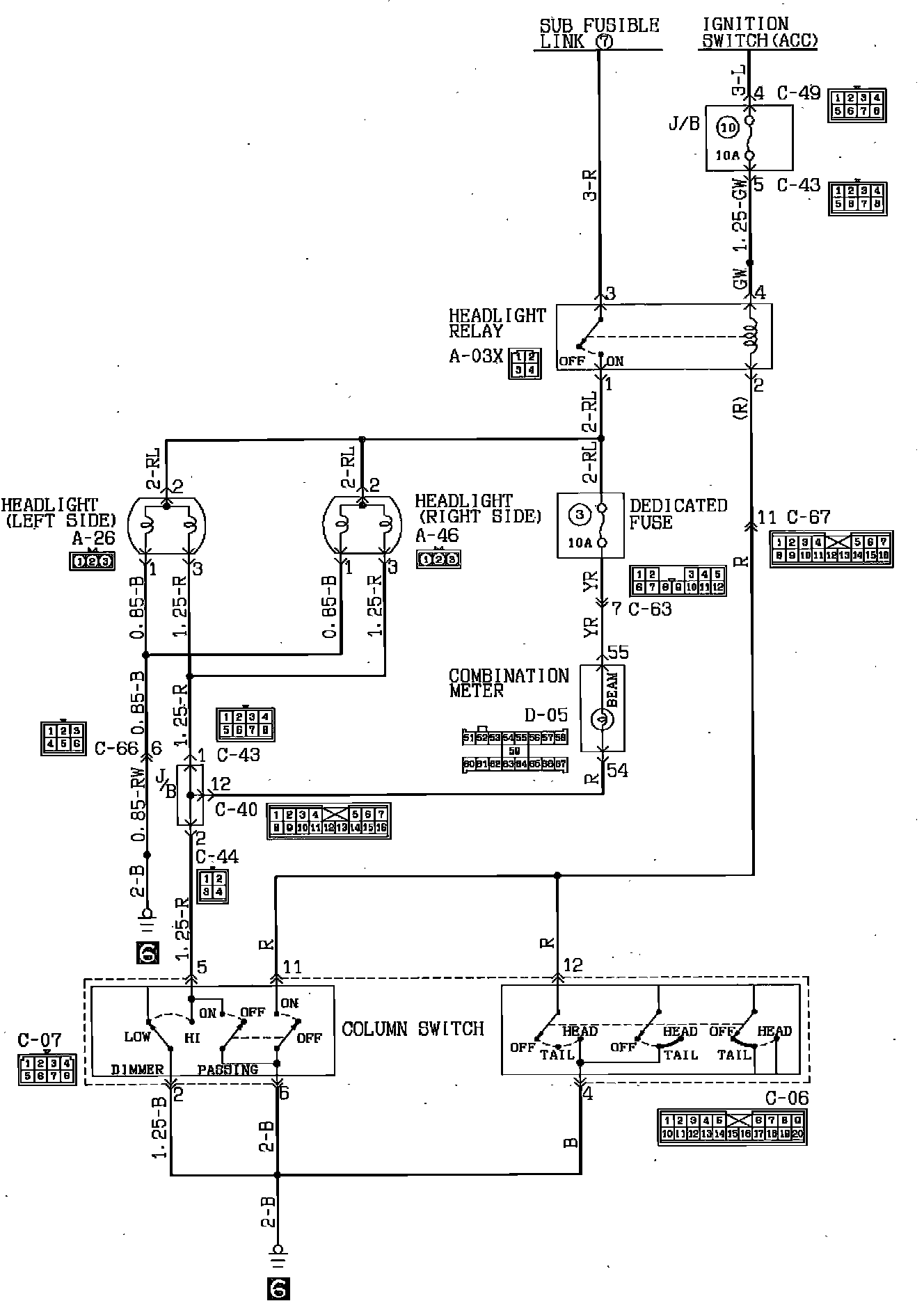

Headlamps (Without Daytime Running Lamps):
