Home
>>
Plymouth
>>
1992
>>
Laser AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>

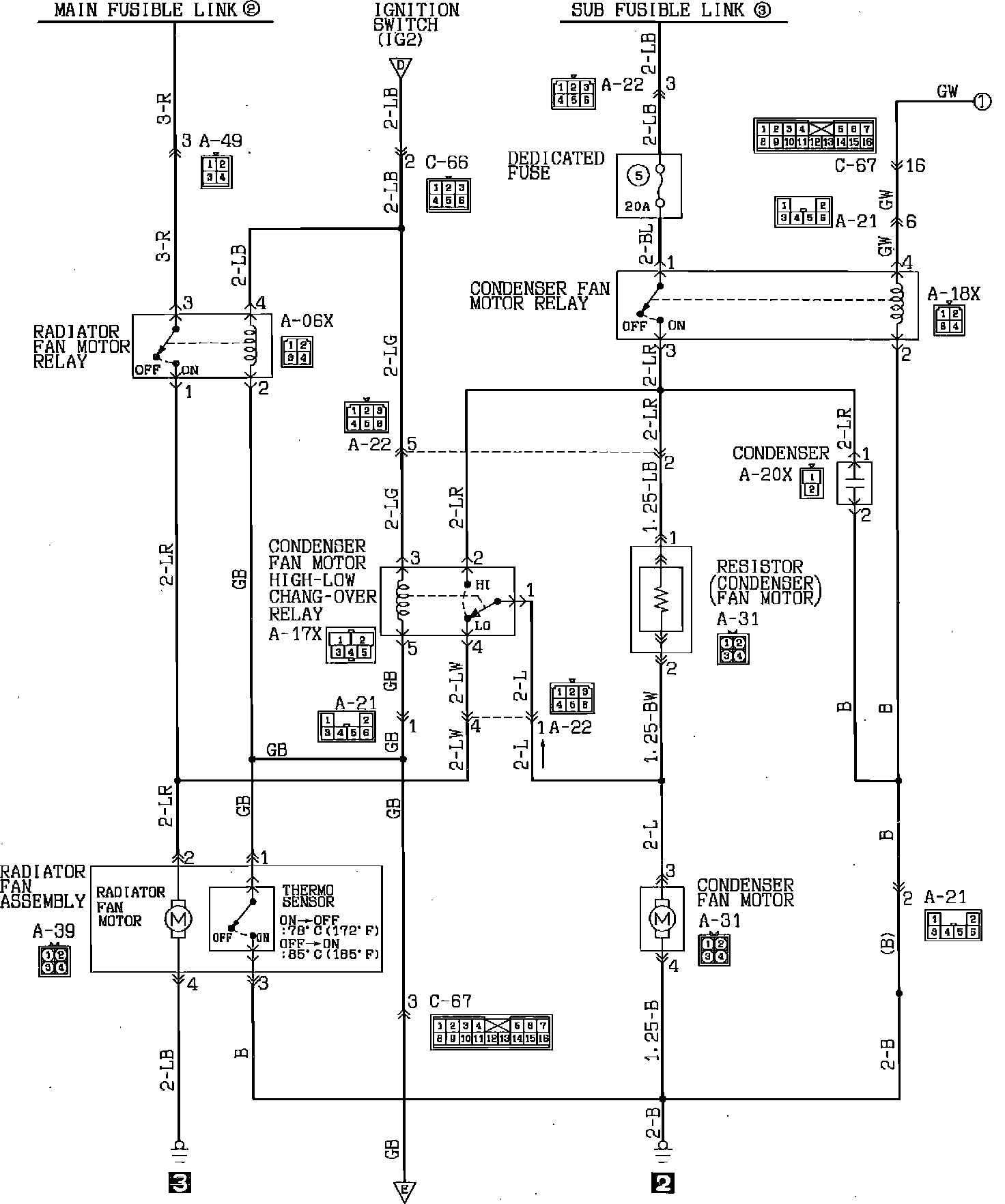

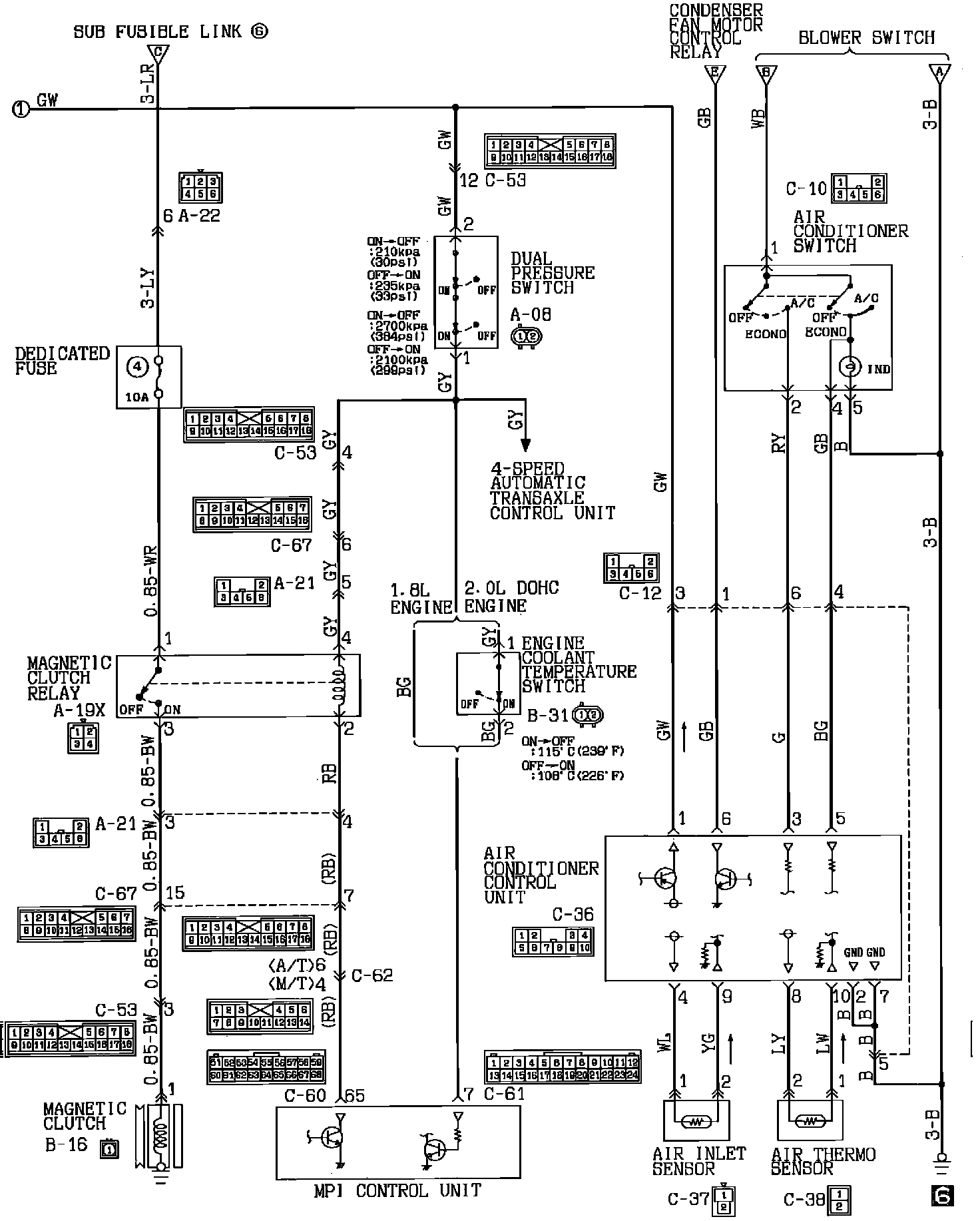

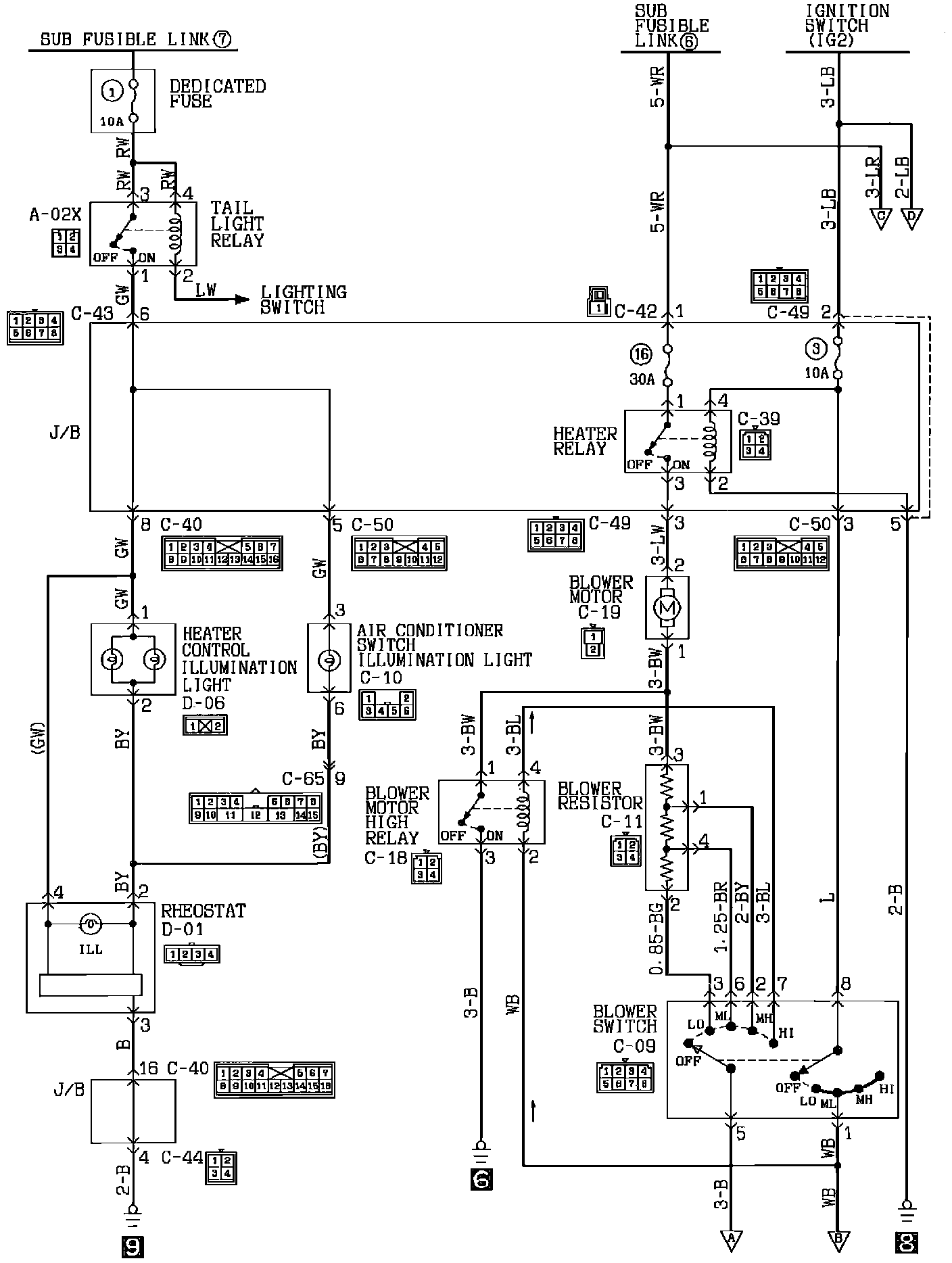

Air Conditioning System
Air Conditioning System
Air Conditioner:
Air Conditioner:
Air Conditioner:
