Acclaim V6-181 3.0L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Part 9
Part 9

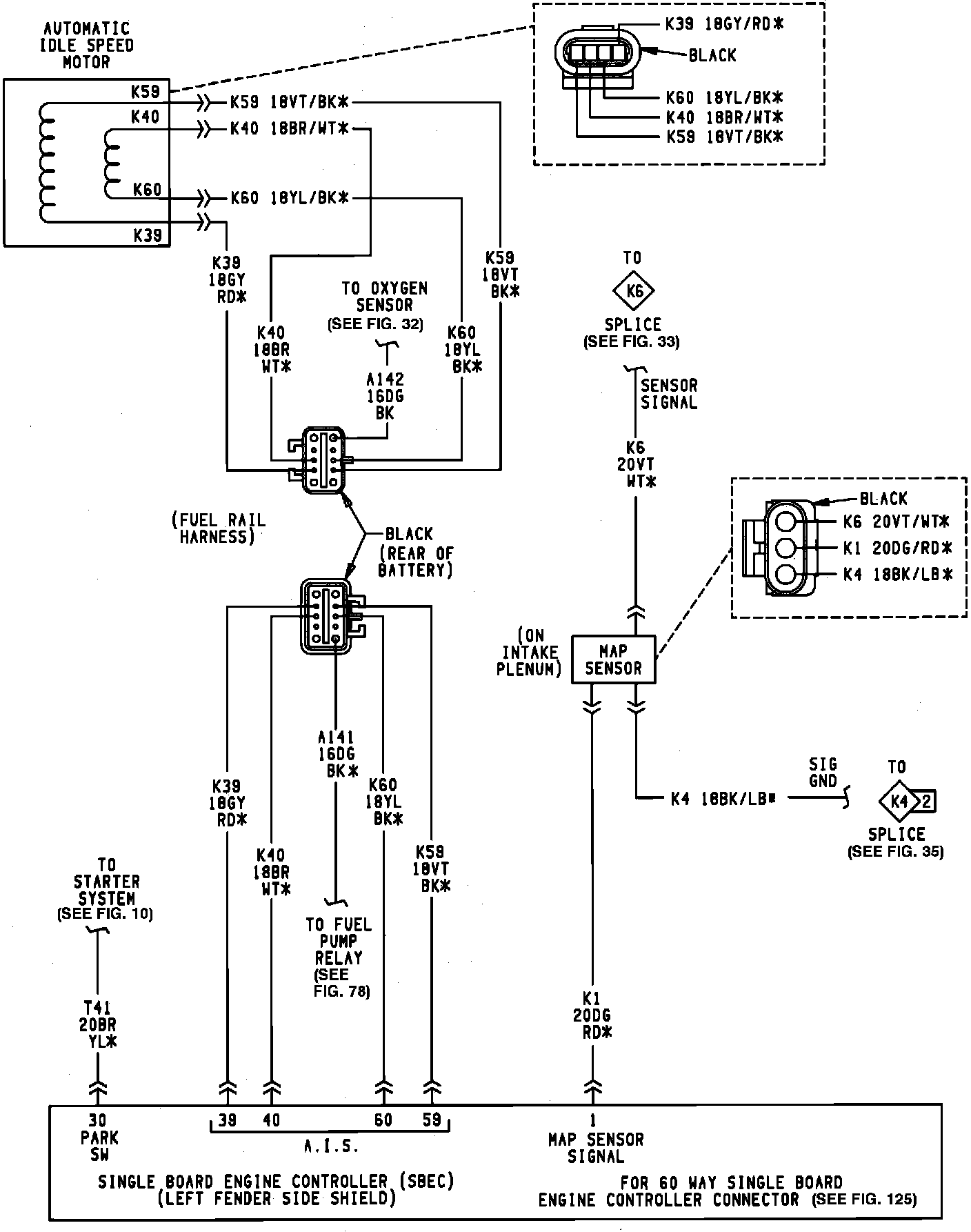

Electronic Fuel Injection Ignition System:
