Plymouth
>>
1992
>>
Acclaim V6-181 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
Electronic Brake Control Module

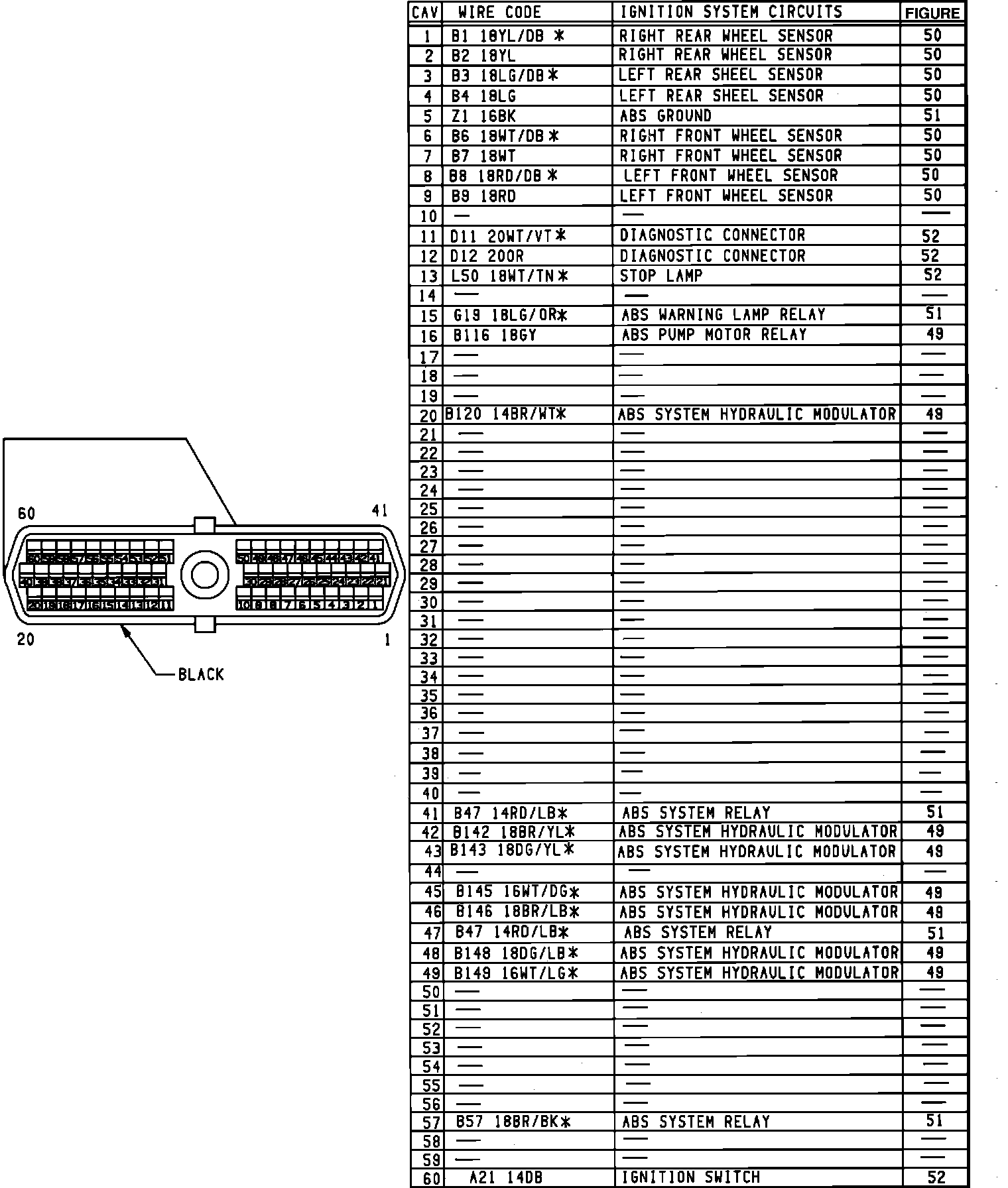

Anti-lock Brake System Controller Connector:
