Home
>>
Plymouth
>>
1991
>>
Sundance L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Oil Pressure Warning Lamp/Indicator
Oil Pressure Warning Lamp/Indicator

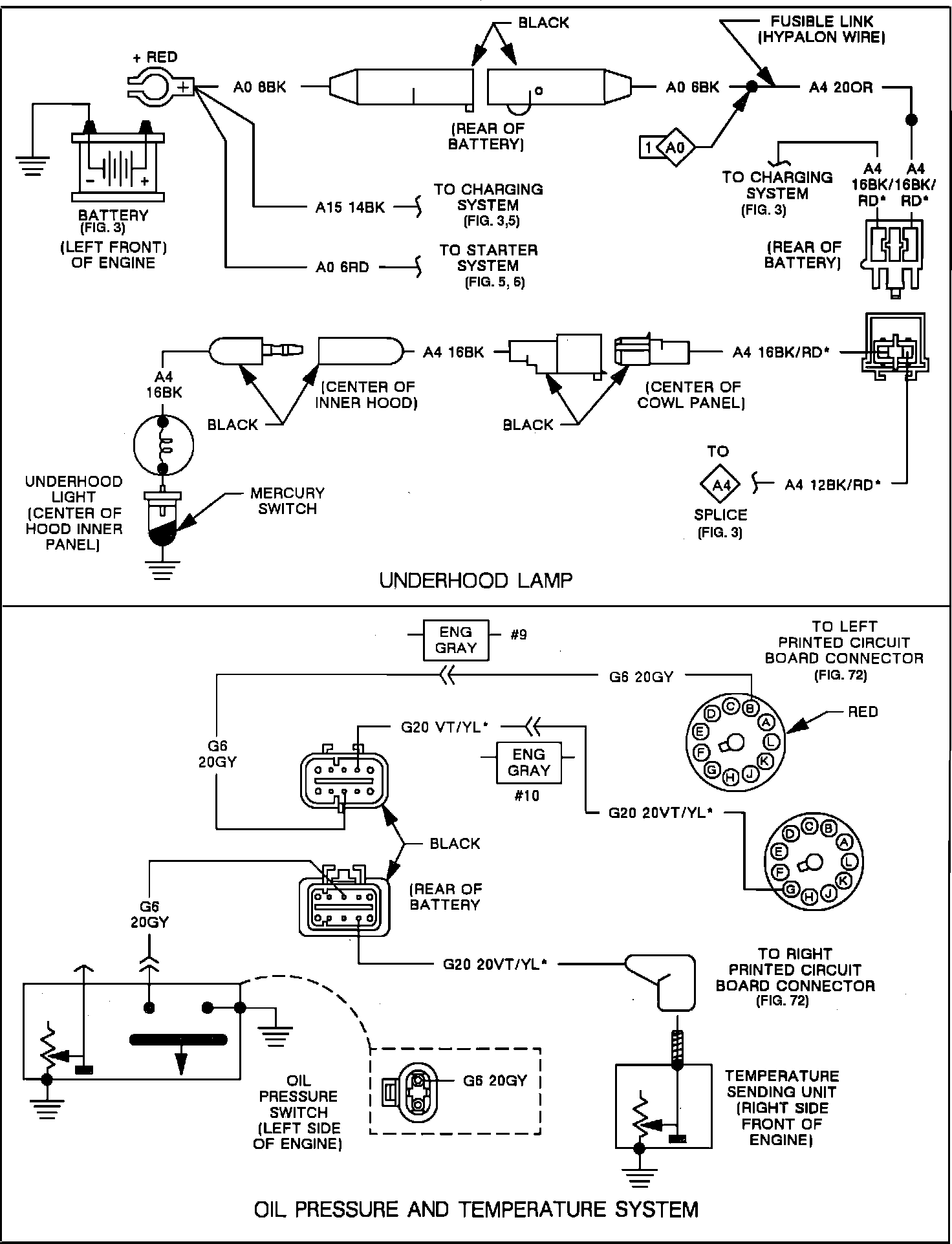

Underhood Lamp, Oil Pressure & Temperature System:
