Plymouth
>>
1991
>>
Sundance L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Rear Lighting
>>
Convertible
Convertible

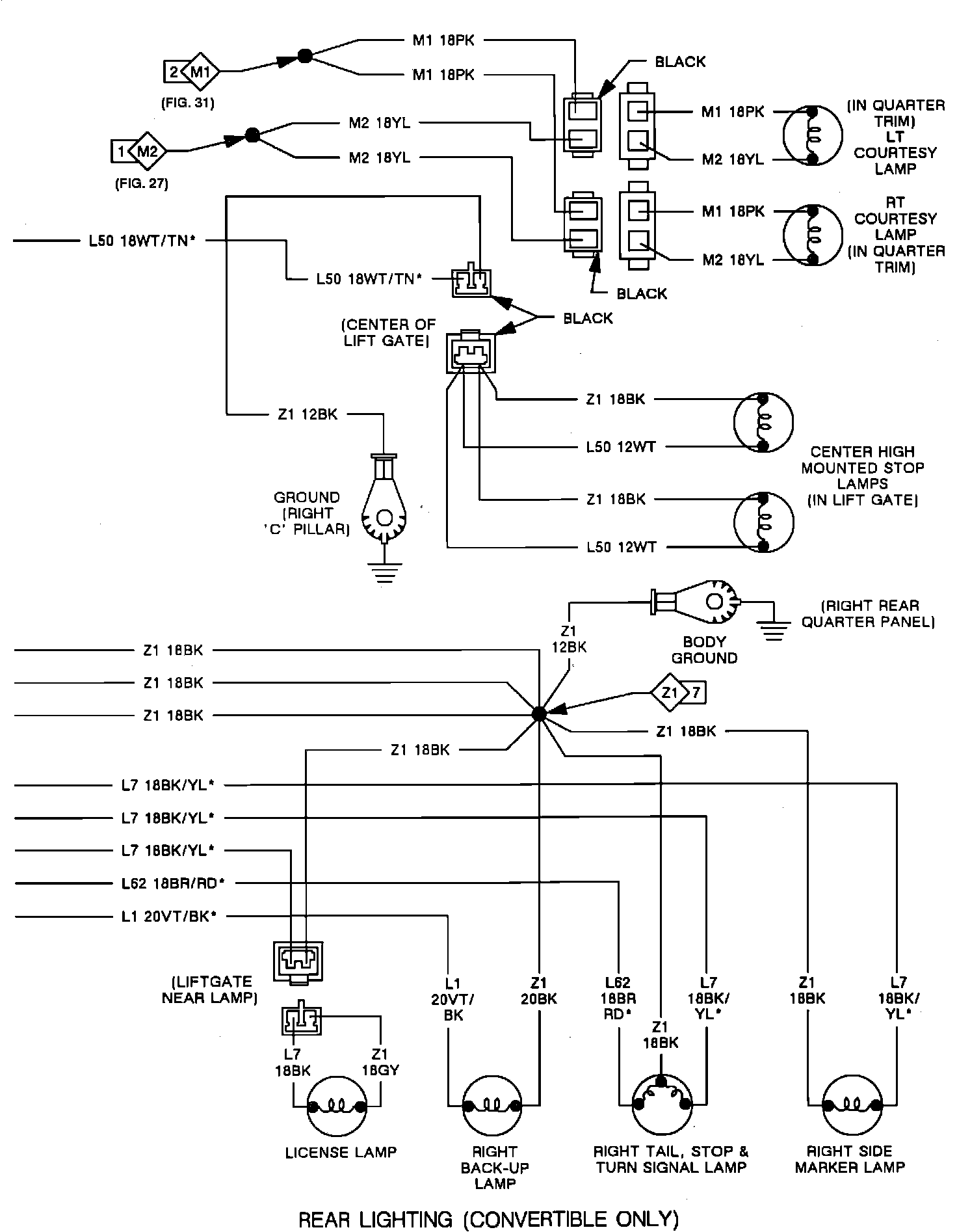

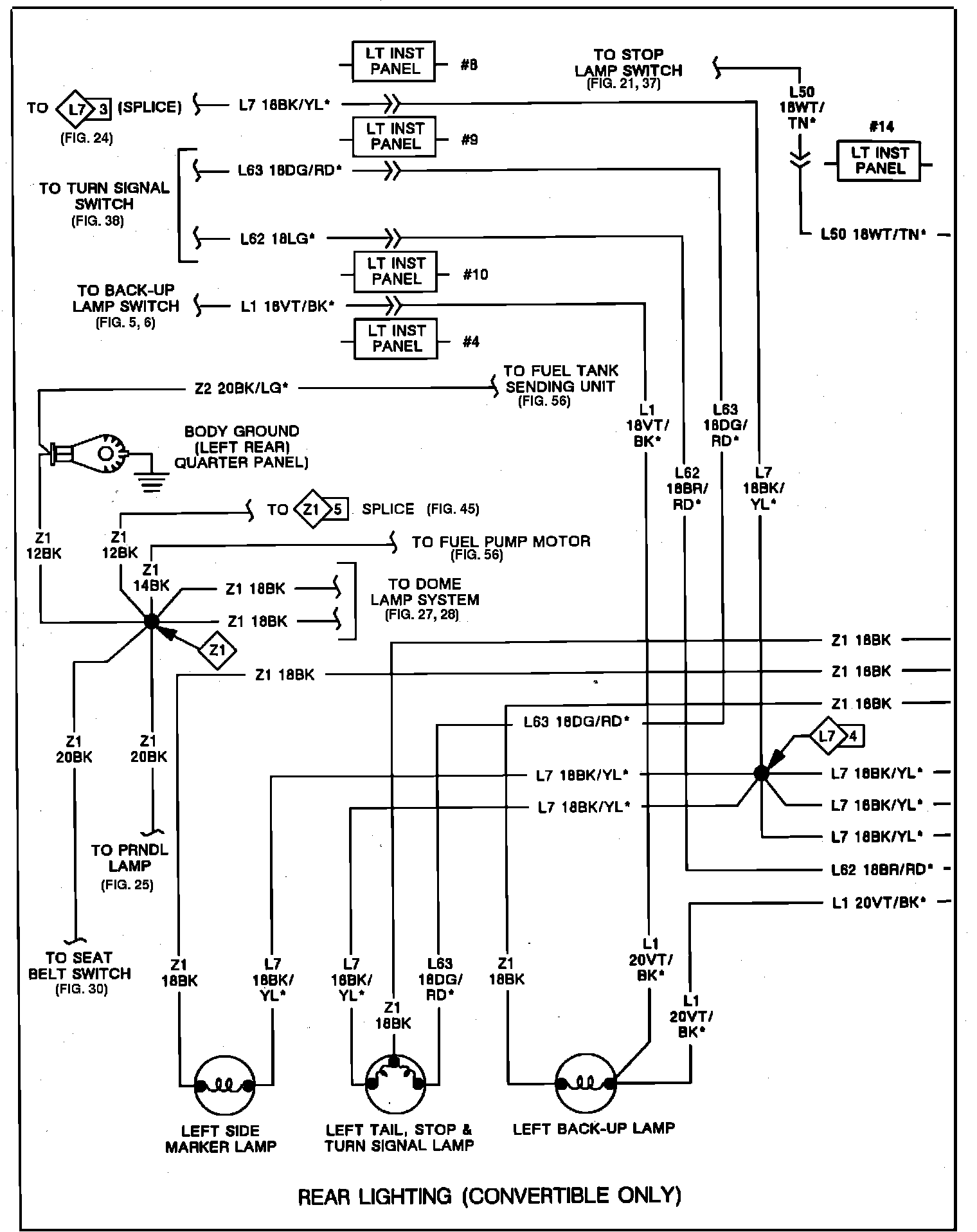

Rear Lighting (Convertible):
Rear Lighting (Convertible):
