Plymouth
>>
1991
>>
Sundance L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Air Bag Systems
Air Bag Systems

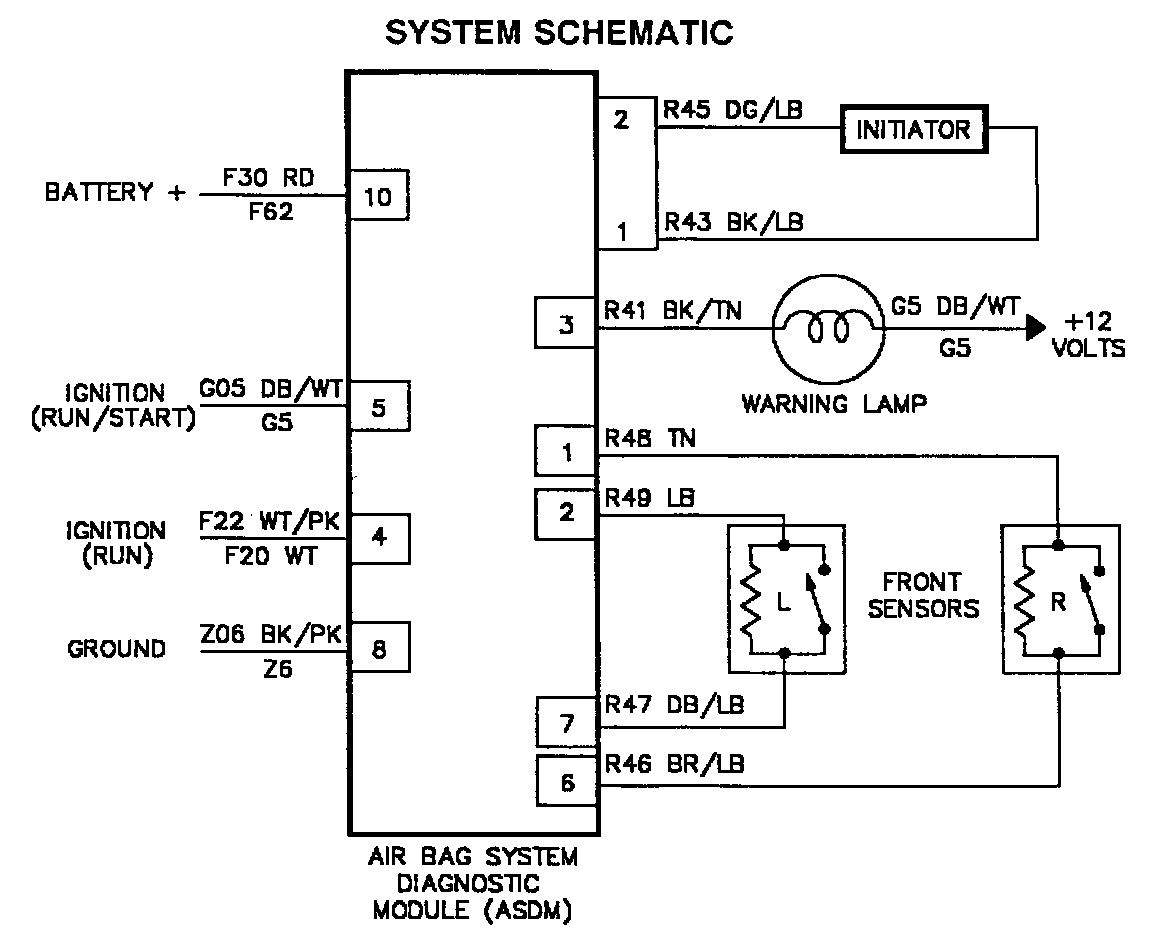

System Schematic:
Airbag System:
