Acclaim L4-153 2.5L SOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Bulkhead Connector
>>
Instrument Panel Side
Instrument Panel Side

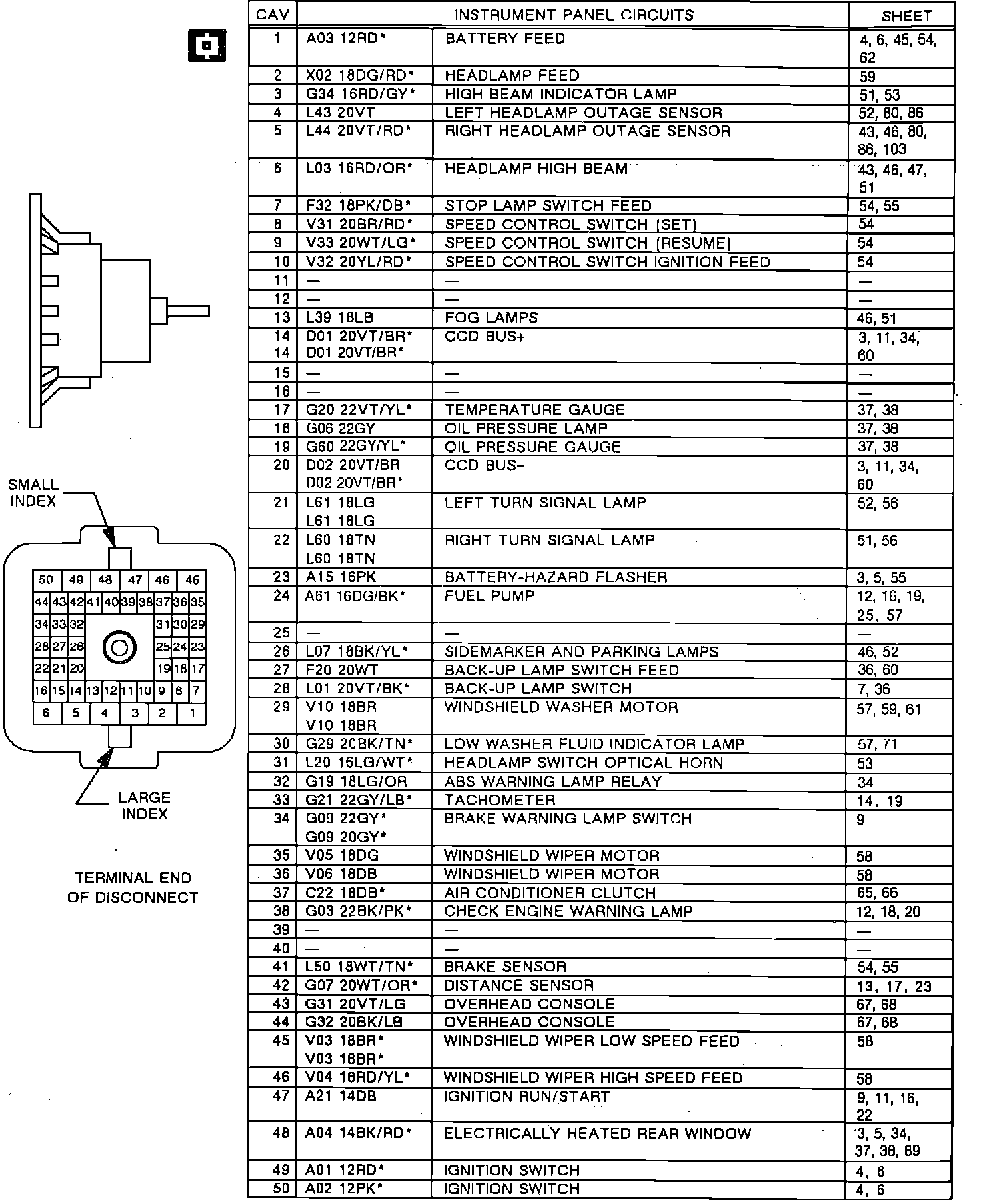

50 Way (Interior) Bulkhead Disconnect:
