Console: Service and Repair

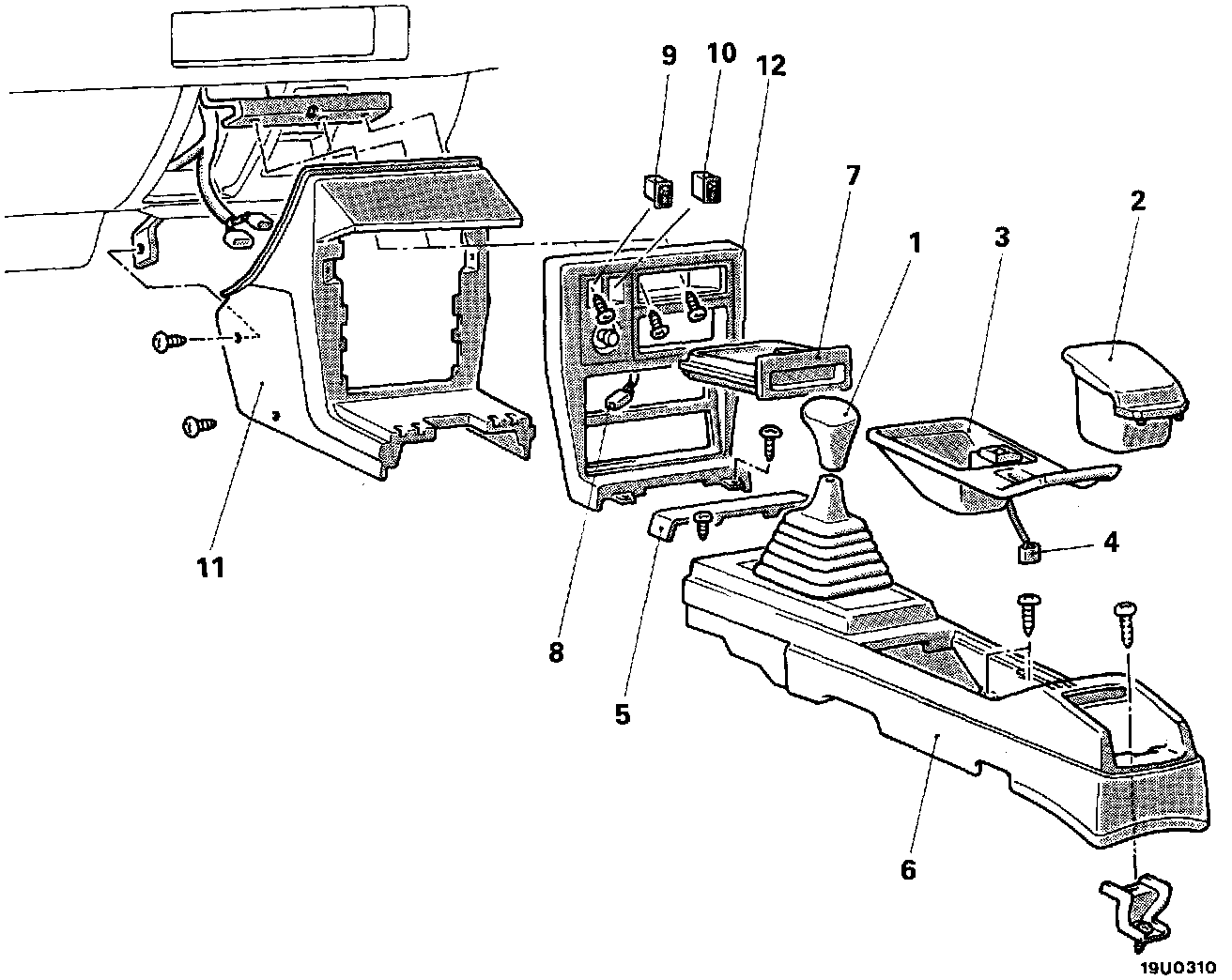

REMOVAL STEPS
1. Shift knob
2. Ash tray (rear)
3. Parking brake cover
4. Electrical remote control mirror switch connection (electrical remote control mirror- equipped car)
5. Plate
6. Floor console
7. Ash tray (front)
8. Cigarette lighter connection
9. Hazard switch
10. Defogger switch
11. Front console
12. Console pane)






SERVICE POINT OF REMOVAL

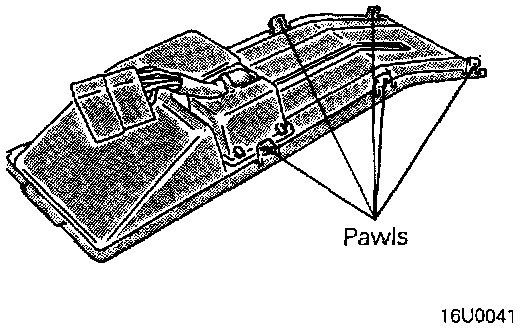

3. Removal Of Parking Brake Cover
Remove the parking brake cover with its pawls depressed.
