Plymouth
>>
1989
>>
Sundance L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
4 Door
4 Door

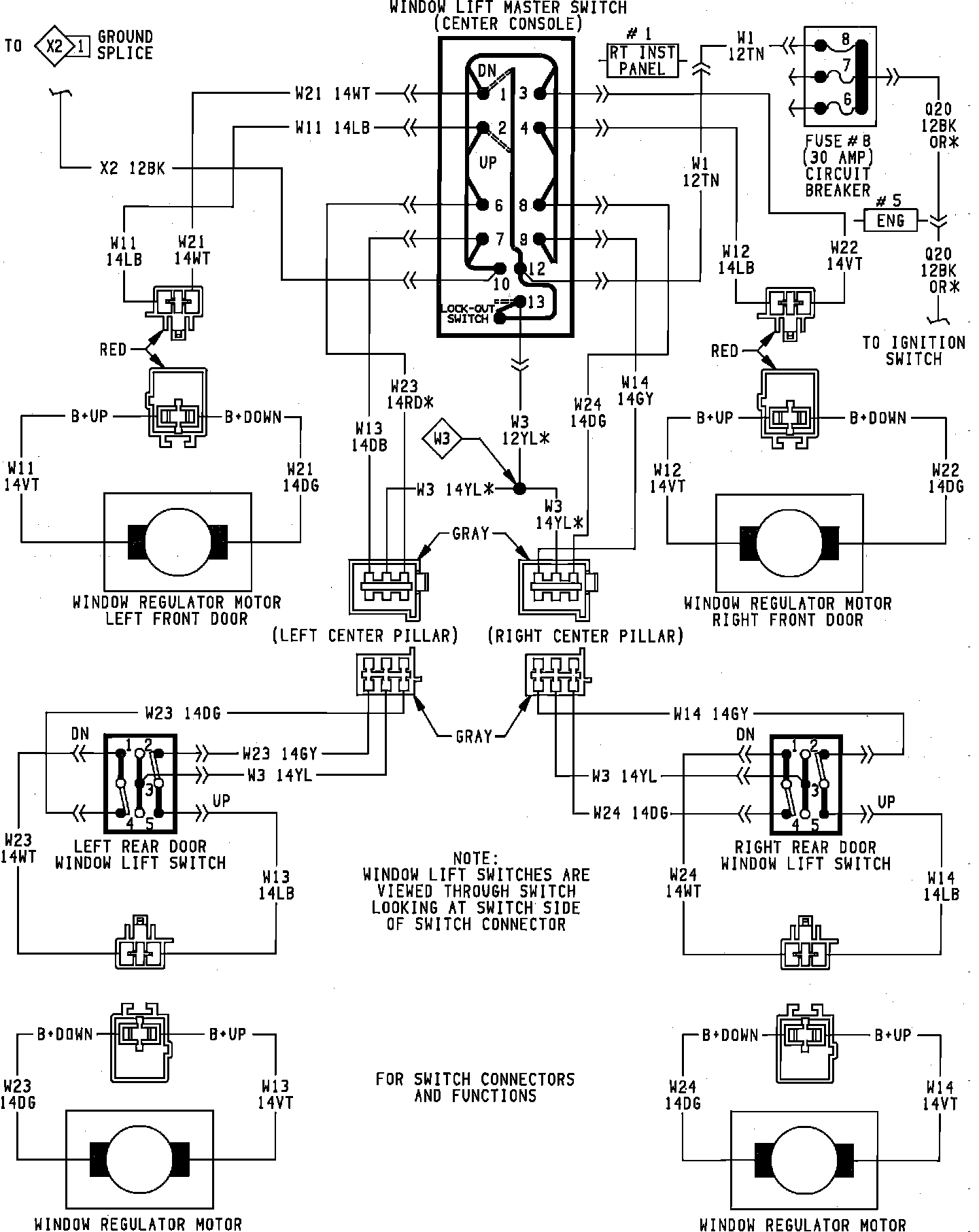

Power Window System Wiring Circuit. 4 Door:
