Plymouth
>>
1989
>>
Sundance L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
Mirrors

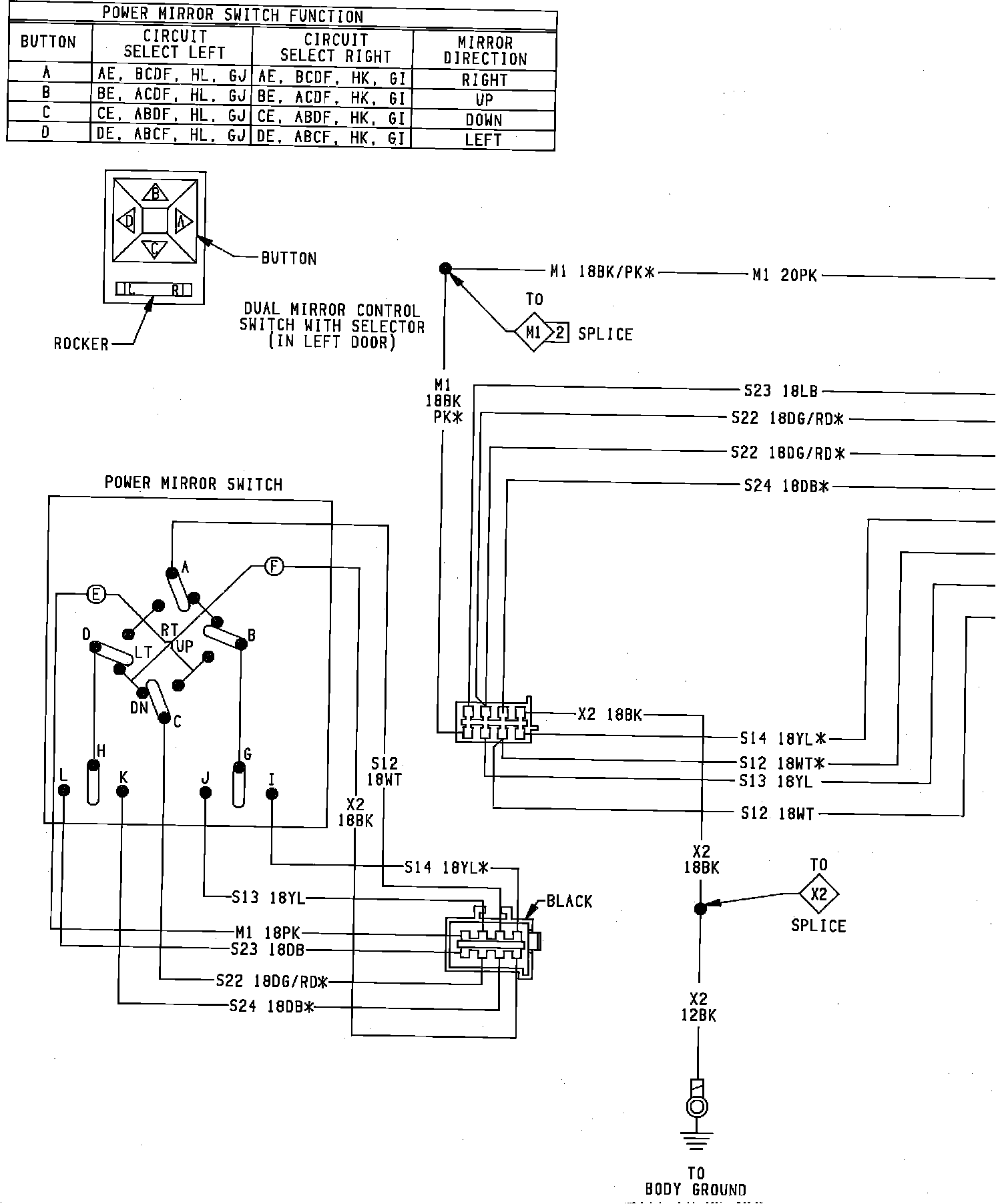

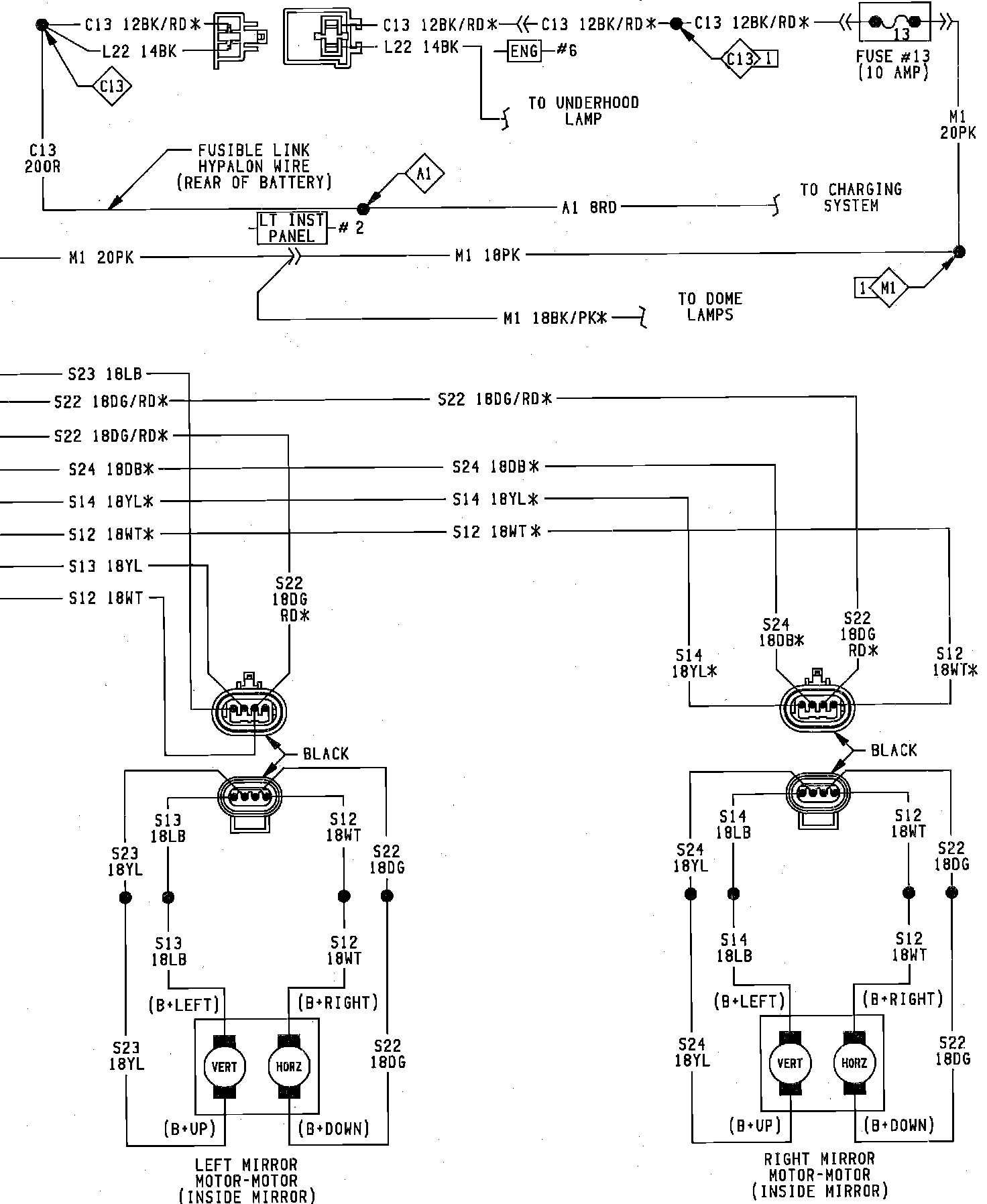

Power Remote Mirrors Wiring Circuit:
Power Remote Mirrors Wiring Circuit:
