Plymouth
>>
1989
>>
Sundance L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
System Diagram
>>
Left Side
Left Side

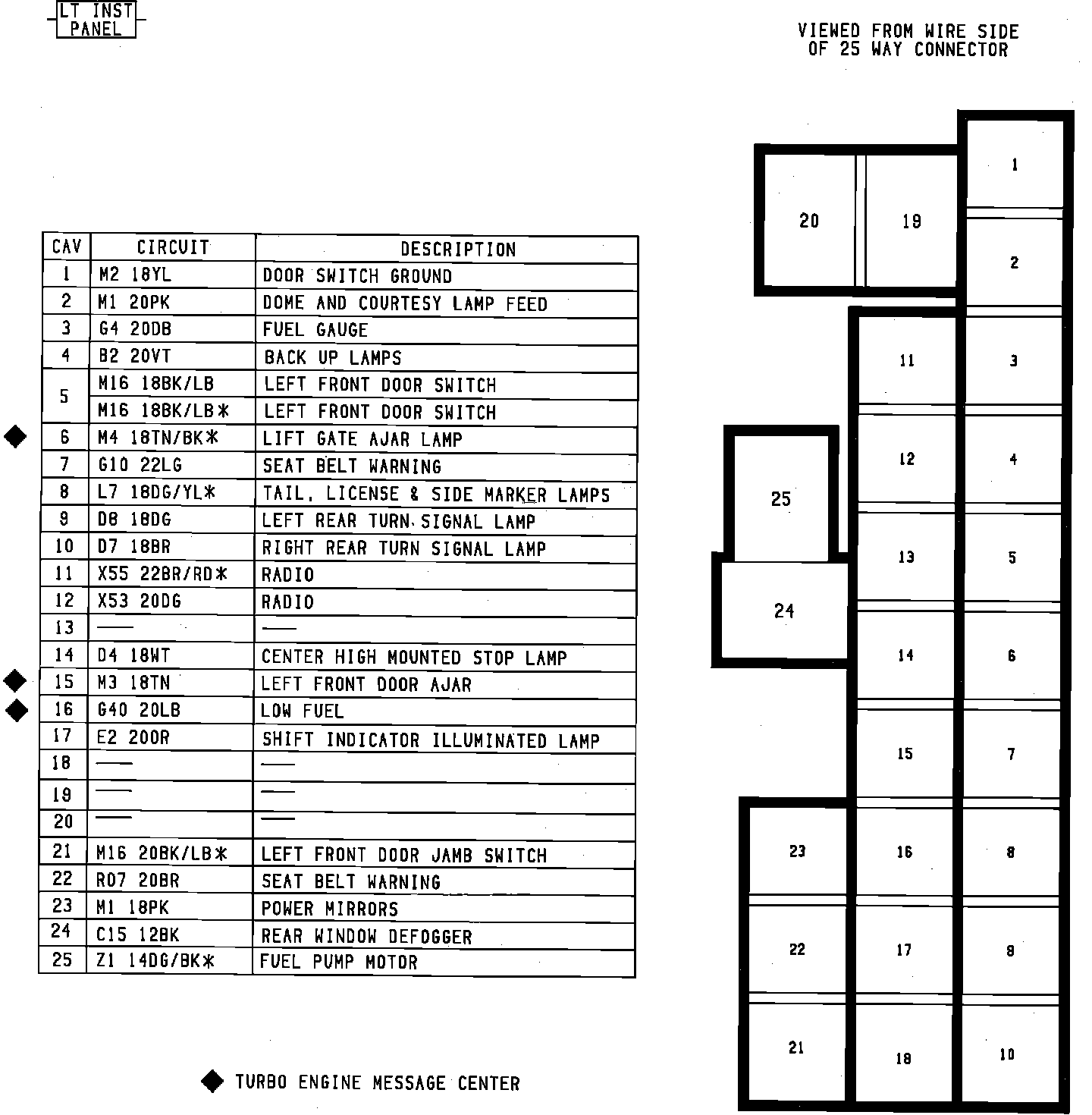

Body To Instrument Panel Connector. Left Side:

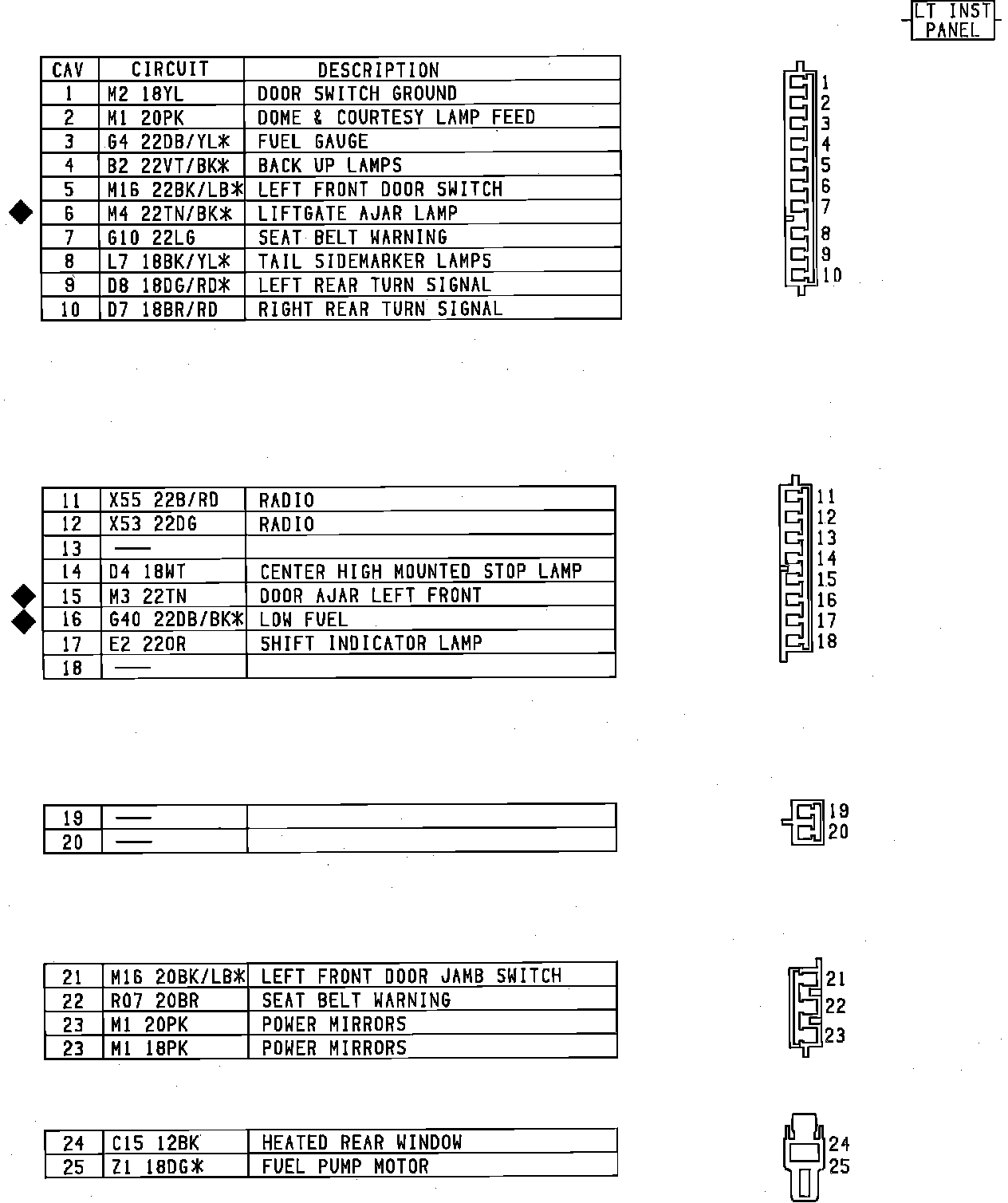

Body To Instrumnet Panel Connector. Left Side:
