Cowl Side Trim Panel
Cowl Side Trim Panel

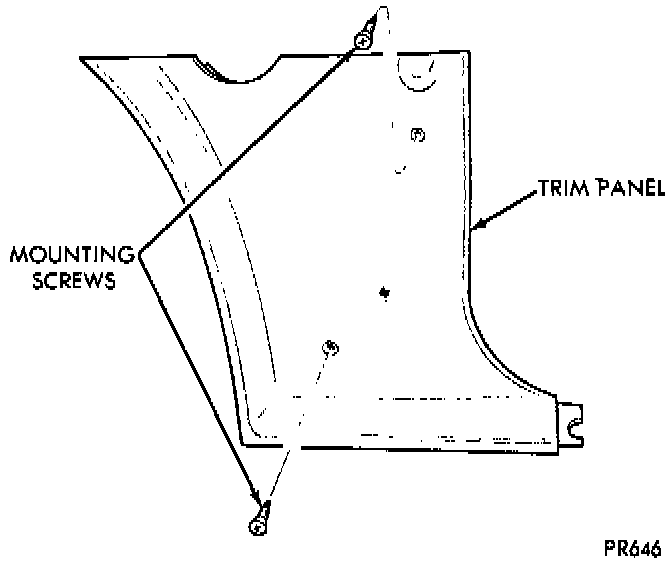

Cowl Side Trim Panel:
1.
Remove front
scuff plate
.
2.
Remove
trim panel
retaining screws.
3.
Pull out at bottom of panel and remove from vehicle.
4.
Reverse above procedure for installation.
