SP-8 Checking Vehicle Speed Signal

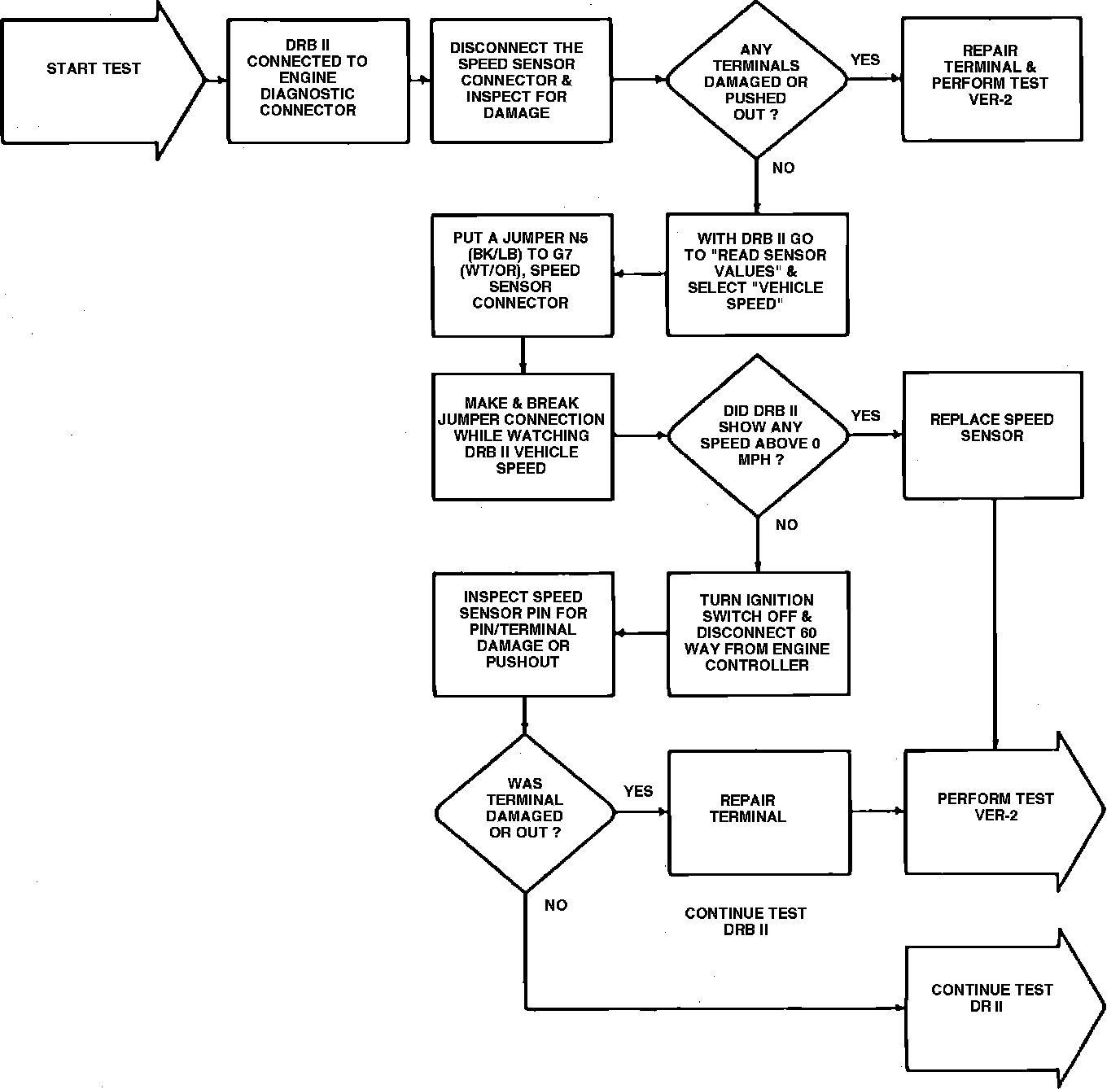

Fig. 12 Test SP-8, Checking Vehicle Speed Signal (Part 1 Of 2):

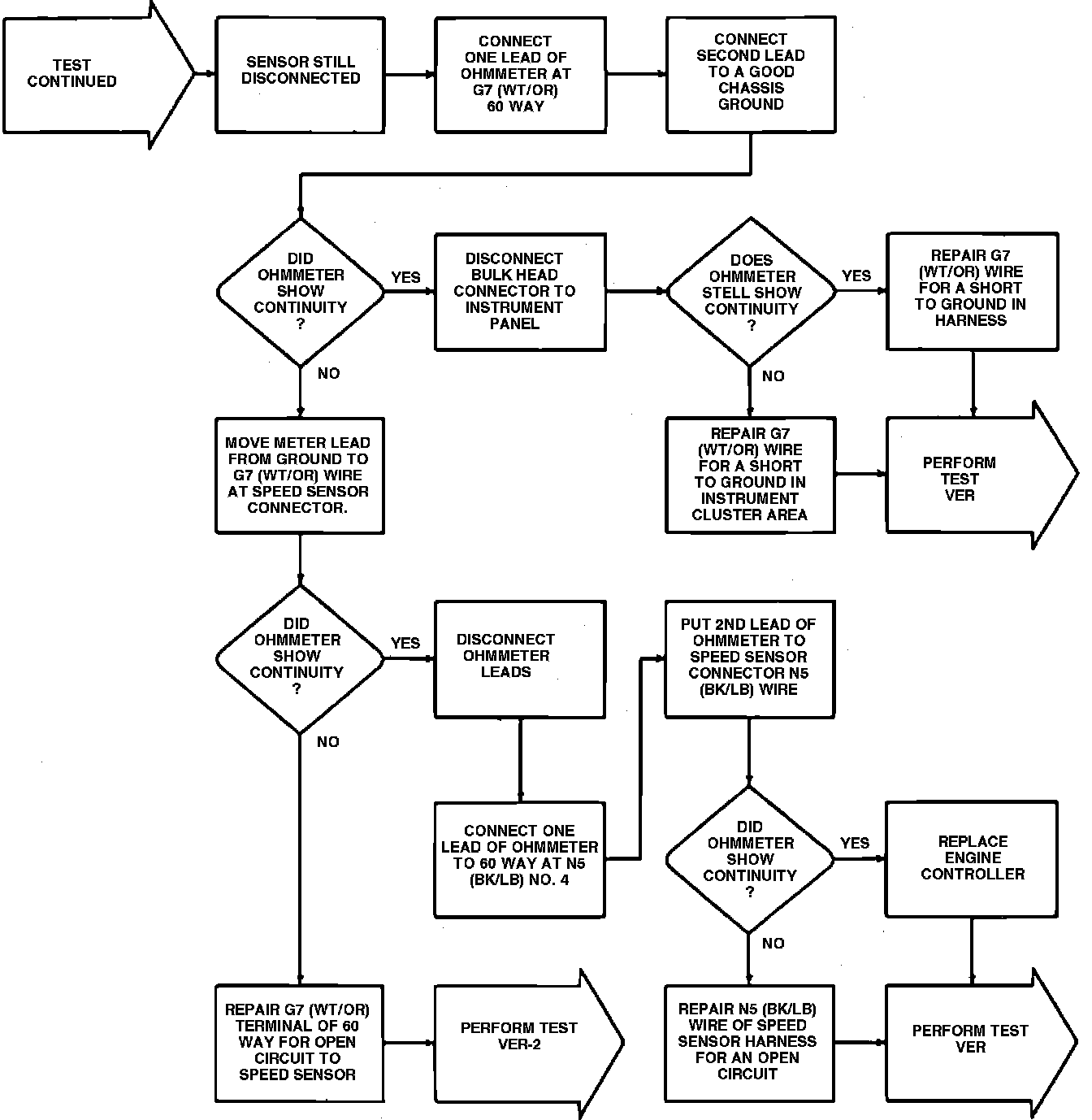

Fig. 12 Test SP-8, Checking Vehicle Speed Signal (Part 2 Of 2):
