SP-6 Testing the Resume Switch

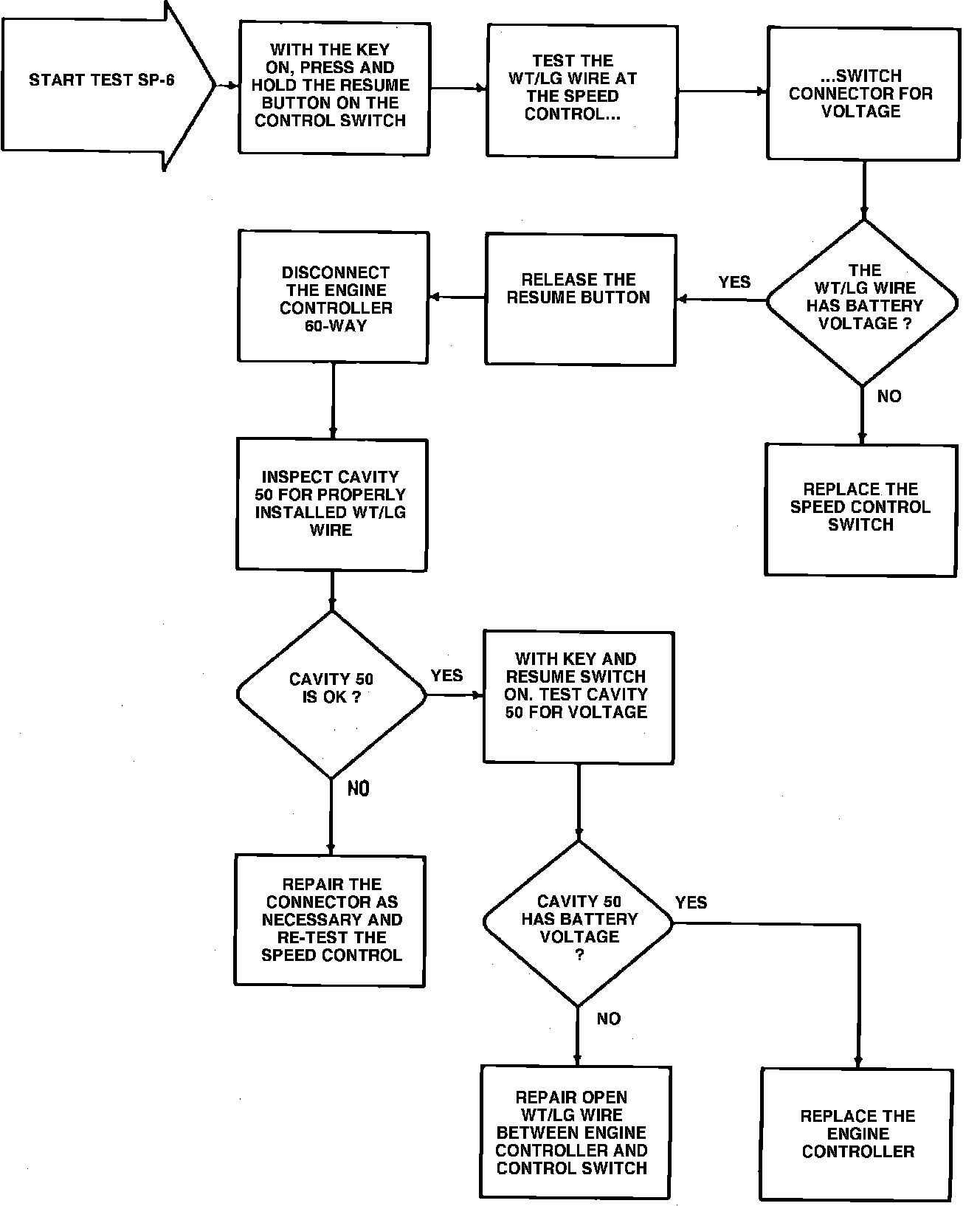

Fig. 9 Test SP-6, Testing Resume Switch:



Checking The Resume Switch:
